6130-00-235-0991
Self-Rectifying Vibrator
6130002350991 002350991 7253798 538C
An electromechanical device which interrupts the direct current input by means of a coil-driven vibrating armature (reed) whose contacts alternately open and close the direct current circuit. It is equipped with a second set of contacts which operate in synchronism with the first set and are mounted on either the same or a separate (split) armature to rectify the stepped-up alternating current voltage obtained from an external transformer secondary to produce a pulsating direct current output. For items designed to operate over a wide and comparatively high frequency range and whose coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC. View more Self-Rectifying Vibrator
January 2023
7
Marketplace 6130-00-235-0991
Request a Quotation from participating marketplace vendors
Related Documents 6130-00-235-0991 5+ Documents (More...)
/fsg-61/fsc-6130/us
Updated Every Day 6130-00-235-0991 RQST NE Updated Every Day 6130-00-235-0991 RQST Updated Every Day
/fsg-61/fsc-6130/us 6130-00-235-0991 Self-Rectifying Vibrator 6130002350991 7253798538C An electromechanical
/fsg-61/fsc-6130/de
Self-Rectifying Vibrator 6130002350991 6130002350991 7253798538C An electromechanical https//www.nsnlookup.com
0983 6130-99-110-2922 6130-12-316-0244 https www.nsnlookup.com 6130005537530 6130-00-635-3507 6130-00 -235-0991
Self-Rectifying Vibrator 6130002350991 /fsg-61/fsc-6130/de 6130-12-316-0244 Self-Rectifying Vibrator
0983 6130-99-110-2922 Vibrator 6130270039680 www.nsnlookup.com 6130005537530 6130-00-635-3507 6130-00 -235-0991
/fsg-61/fsc-6130/tr
Self-Rectifying Vibrator 6130002350991 8982Circuit Card Assembly5998014168982 014168982 KS-538C
235-0983 6130-99-110-2922 6130-12-316-0244 6130-21-869-5204 6130-00-499-7717 6130-00-635-3507 6130-00-235-0991
Self-Rectifying Vibrator 6130002350991 Assembly5998014168982 014168982 KS-538C Self-Rectifying
Vibrator 6130002350991 6130-00-499-7717 6130-00-635-3507 Vibrator 6130270039680 9680 Self-Rectifying
Restrictions 6130-00-235-0991
6130-00-235-0991 is a Self-Rectifying Vibrator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6130-00-235-0991
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6130-00-235-0991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 6130-00-235-0991
- Part Number
- Manufacturer
- Status
- 7253798
- Manufacturer
- 16758 - General Motors Corp Delco (Obsolete)
- Original Design
- Original Design
- 7253798
- 24617 - General Motors Corp (Active)
- Secondary Buy
- Secondary Buy
- 538C
- 37942 - Yosemite Investment Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 6130-00-235-0991
- Characteristic
- Specifications
- FIIG
- Specifications
- T320-K
- Drive Voltage Relationship To Input Voltage [BGRB]
- Unequal

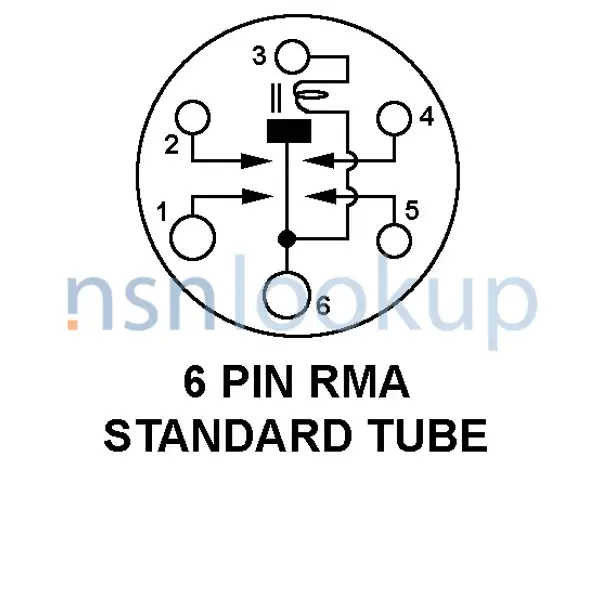

- Base Connection Wiring Style [BGRX]
- 6 Pin Standard Tube
- Hermetically Sealed Feature [AXNN]
- Provided
- Output Frequency Rating [APTS]
- 38.0 Hertz Minimum And 42.0 Hertz Maximum
- Input Current Rating [AZSL]
- 6.0 Amperes Nominal
- Input Voltage Rating [APNX]
- 6.0 Dc Volts Nominal
- Plug In Mounting Feature [BGRS]
- Not Provided
- Reed Type [BGRJ]
- Single
- Overall Diameter [ADAV]
- 1.500 Inches Nominal
- Overall Length [ABHP]
- 3.250 Inches Nominal
- Special Features [FEAT]
- Impregnated For Tropical Use
NATO Stock Numbers Related to 6130-00-235-0991
Freight Information 6130-00-235-0991
6130-00-235-0991 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062900. A Sub NMFC of X. It has a NMFC Description of RECTIFIERS NOI/BATTERY ELIMINATORS. 6130-00-235-0991 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 6130-00-235-0991 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35110 which rates the freight between FCL and LCL. 6130-00-235-0991 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 6130-00-235-0991 is not classified as a special type of cargo when transported by water. 6130-00-235-0991 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
