6115-01-155-2340

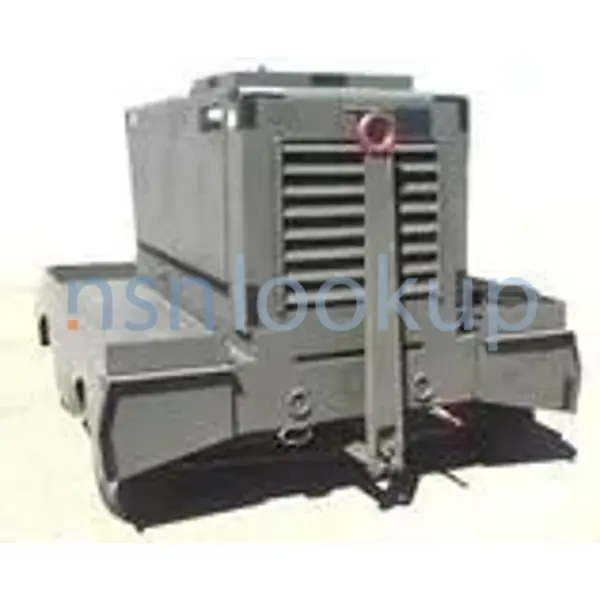

Trailer Mounted Diesel Engine Generator Set
6115011552340 011552340 A/M32A-86D 8126369-90 32600
A generator set using a diesel engine as the prime mover, the complete unit being mounted on a trailer in order to provide a mobile power source. View more Trailer Mounted Diesel Engine Generator Set
May 2023
30
Marketplace 6115-01-155-2340
Request a Quotation from participating marketplace vendors
Related Documents 6115-01-155-2340 5+ Documents (More...)
United States (US) 4. 6115-01-155-2340 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 6115-01-155-2340 RQST Updated Every Day 6115-01-155-2340 RQST NE Related
Camera Mirror6720144089193 1440891937525-32600 https//www.nsnlookup.com /fsg-93/fsc-9320/es 9320-33-
Trailer Mounted Diesel Engine Generator Set -6115/us 6115-01-155-2340 Trailer Mounted Diesel Engine
Datasheet 6110-01-291-9307 CharacteristicSpecificationsFIIGA540Z0End Item Identification [AGAV]A/M32a-86D
Generator Set (6115-01-155-2340)Center To Center Distance Between Mounting Holes [ABTH]11.000 Inches
Trailer Mounted Diesel Engine Generator Set www.nsnlookup.com /fsg-61/fsc-6115/us 6115-01-155-2340
DcEnvironmental Protection [ADZC]Dustproof And WatertightFsc Application Data [ZZZV]Diesel Generator Set P/N 8126369-90
Trailer Mounted Diesel Engine Generator Set www.nsnlookup.com /fsg-61/fsc-6115/us 6115-01-155-2340
Restrictions 6115-01-155-2340
IUID Required
6115-01-155-2340 is a Trailer Mounted Diesel Engine Generator Set that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.
Import and Export 6115-01-155-2340
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6115-01-155-2340
- US Air Force (FGG4)
- Effective Date:
- 1 Sep 2000
- Former MOE Rule:
- FAA4
- Israel (YD01)
- Effective Date:
- 1 Oct 2016
- Canada (ZC01)
- Effective Date:
- 1 Jul 2010
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2015
Approved Sources 6115-01-155-2340
- Part Number
- Manufacturer
- Status
- 8126369-90
- Manufacturer
- 98752 - Warner Robins Air Logistics Center (Active)
- Primary Buy
- Primary Buy
- A/M32A-86D
- 80049 - Department Of The Air Force (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 32600
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8126369-90
- 98749 - Sacramento Air Logistics Center (Obsolete)
- Informational Drawing
- Informational Drawing
Datasheet 6115-01-155-2340
- Characteristic
- Specifications
- FIIG
- Specifications
- T322-A
- Ac Wattage Rating [AYGY]
- 72.0 Kilowatts
- Excitor [AYHF]
- Included
- Excitor Type [AYHE]
- Self-Excited
- Frequency Rating [ACZB]
- 400.0 Hertz Nominal
- Current Type [ACDC]
- Ac
- Line To Line Voltage In Volts [AYHB]
- 208.0
- Line To Neutral Voltage In Volts [AYHC]
- 120.0
- Power Factor In Percent [AYHD]
- 80.0
- Phase [FAAZ]
- Three
- Special Features [FEAT]
- This Item Is The Same As 6115-01-297-3761 Except This Item Doesn't Havean Air Starter
Management Data 6115-01-155-2340
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Dec 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- L
- 3
- Reversal Of Phrase Code S 6115-01-561-7532
- 3
- Department of the Air Force (DF)
- L
- J
- Interchangeable With 6115-01-061-6610
- J
- Department of the Air Force (DF)
- L
- J
- Interchangeable With 6115-01-158-7472
- J
- Department of the Air Force (DF)
- L
- J
- Interchangeable With 6115-01-389-4093
- J
- Department of the Air Force (DF)
- L
- J
- Interchangeable With 6115-01-502-7927
- J
- Department of the Air Force (DF)
- L
- J
- Interchangeable With 6115-01-589-7554
- J
- Department of the Air Force (DF)
- L
- J
- Interchangeable With 6115-01-595-3479
- J
Air Force
- Budget:
- M
- 57X3080 - Other Base Maintenance and Support Equipment
- Aggregation Code:
- ID
- GENERATORS AND GENERATOR SETS, GROUND
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - U
- Reparable. Condemn at Intermediate. AF Equipment Management System (AFEMS).
Similar Supply Items to 6115-01-155-2340
Freight Information 6115-01-155-2340
6115-01-155-2340 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of C. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI SUB3. 6115-01-155-2340 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 6115-01-155-2340 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 6115-01-155-2340 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 6115-01-155-2340 is not classified as a special type of cargo when transported by water. 6115-01-155-2340 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6115-01-155-2340
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- Special requirements
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- No Requirement
