6110-01-532-1821

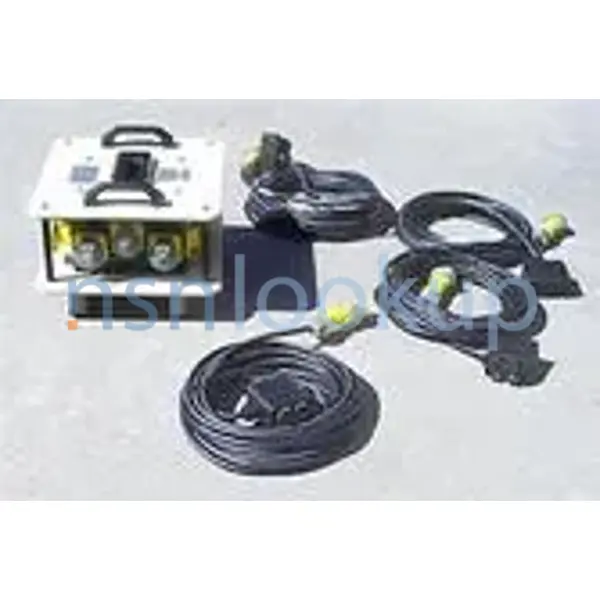

Power Distribution Panel
6110015321821 015321821 DB-30NA-A22-S3
A panel designed for connecting, disconnecting and protecting power line feeders and/or direct control of specific electric devices such as lights, motors, electronic equipment, and the like. See also FUSE BOX; SWITCH BOX; DISTRIBUTION BOX; and PANEL,POWER BUS,CURCUIT BREAKER. View more Power Distribution Panel
May 2023
3
Marketplace 6110-01-532-1821
Request a Quotation from participating marketplace vendors
Related Documents 6110-01-532-1821 5+ Documents (More...)
/fsg-61/fsc-6110/us
Power Distribution Panel 6110015321821 GroupingsEnd Item Identification [AGAV] 6110-01-532-1821
Power Distribution Panel 6110015321821 GroupingsEnd Item Identification [AGAV] 6110-01-532-1821
Power Distribution Panel 6110015321821 GroupingsEnd Item Identification [AGAV] 6110-01-532-1821
Rating In Amps [AFRC]20.0 All Mating Ends All Contact GroupingsEnd Item Identification [AGAV] 6110-01-532-1821
Power Distribution Panel 6110015321821 GroupingsEnd Item Identification [AGAV] 6110-01-532-1821
Overall Length [ASQB]75.000 Feet NominalBranch Quantity [CXQJ]2End Item Identification [AGAV] 6110-01-532-1821
Power Distribution Panel 6110015321821 2End Item Identification [AGAV] 6110-01-532-1821 https//
All Contact GroupingsEnvironmental Protection [ADZC]WatertightEnd Item Identification [AGAV] 6110-01-532-1821
Power Distribution Panel 6110015321821 WatertightEnd Item Identification [AGAV] 6110-01-532-1821
Cover 5935016406783 640-6783 Electrical Connector Cover 5935016406783 https Distribution Panel 6110015321821
Restrictions 6110-01-532-1821
IUID Required
6110-01-532-1821 is a Power Distribution Panel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 6110-01-532-1821
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6110-01-532-1821
- Office of the Secretary of Housing & Urban Development (MM33)
- Effective Date:
- 1 Aug 2005
Approved Sources 6110-01-532-1821
- Part Number
- Manufacturer
- Status
- DB-30NA-A22-S3
- Manufacturer
- 00Y95 - Lex Products, Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 6110-01-532-1821
- Characteristic
- Specifications
- FIIG
- Specifications
- T122-G
- Cubic Measure [AFJK]
- 28.800 Cubic Inches
- Output Frequency Rating [ANSQ]
- 60 Hertz
- Output Voltage Rating [APPA]
- 120.0 Ac Volts Minimum And 208.0 Ac Volts Maximum
- Overall Height [ABKW]
- 15.000 Inches Nominal
- Overall Length [ABHP]
- 19.000 Inches Nominal
- Overall Width [ABMK]
- 18.500 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- 5 Kilowatt Outdoor Power Distribution Panel
- Phase [FAAZ]
- Single
- Unpackaged Unit Weight [AWJN]
- 40.000 Pounds
DLA Procurement Analysis 6110-01-532-1821
- DLA Administrative Lead Time:
- Subscribe
Management Data 6110-01-532-1821
Marine Corps
- Stores Account:
- 3
- Appropriation Stores Account Principal Item
- Combat Essentiality:
- 0
- Non-combat Essential End Item
- Echelon Management:
- 43
- Material Identification:
- A
- Type 1 End Items
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 6110-01-532-1821
Freight Information 6110-01-532-1821
6110-01-532-1821 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of A. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI SUB1. 6110-01-532-1821 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 6110-01-532-1821 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 590 for ocean manifesting and military sealift. 6110-01-532-1821 is not classified as a special type of cargo when transported by water. 6110-01-532-1821 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 6110-01-532-1821
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 19.0" H x 18.5" W x 15.0" L
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 23.0" H x 22.5" W x 19.0" L
- --
- --
- --
- Any Suitable Process
- 23.0" H x 22.5" W x 19.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-PRF-81705, Type III, Class 1, Transparent, Electrostatic Protective, Static Shielding, Barrier Material or MIL-DTL-117, Type II, Class H, Style 2 bag
- Cushion, Anchor, Block or Brace as Required
- 1/2 inch thick
- Any Suitable Wood Crate
- ESD sensitive electronic device requirements of MIL-STD-129 apply
- MIL-PRF-81705, Type III, Class 1, Transparent, Electrostatic Protective, Static Shielding, Barrier Material or MIL-DTL-117, Type II, Class H, Style 2 bag
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- No Requirement
