6110-01-255-0889

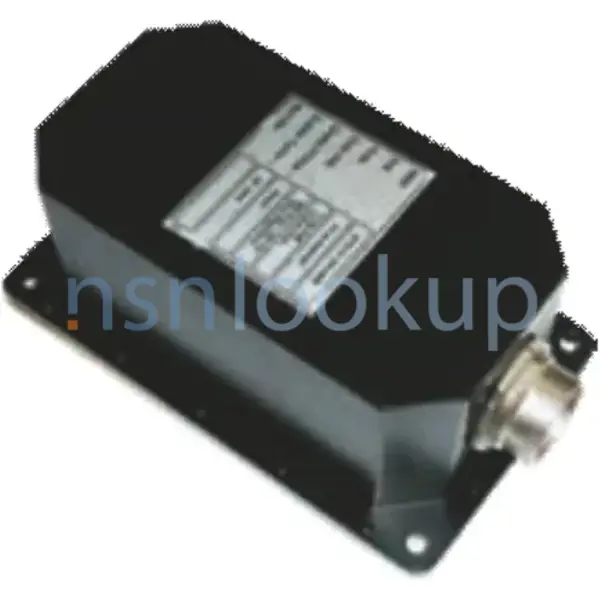

Voltage Regulator
6110012550889 012550889 12287178-1 947F781-3
A component within a single inclosure or provided with a single mounting specifically designed to control automatically the voltage output of an electrical system within certain required limits, regardless of variations of the effective load or of input voltages within a specific range. Does not include items in which regulation is accomplished solely by transformer action. See also REGULATOR SET, VOLTAGE. Excludes REGULATOR, ENGINE GENERATOR. View more Voltage Regulator
May 2023
10
Marketplace 6110-01-255-0889
Request a Quotation from participating marketplace vendors
Related Documents 6110-01-255-0889 2+ Documents (More...)
United States (US) 4. 6110-01-255-0889 Marketplace Restrictions Approved Sources Datasheet Management
REGULATOR,VOLTAGE 5 EA NS Request Quotation Updated Every Day 6110-01-255-0889 RQST NE Updated
Voltage Regulator 6110012550889 012550889 for $1 a day Upgrade your Account Upgrade 6110-01-255
-0889Voltage Regulator6110012550889 012550889 12287178 Request a Quotation from participating marketplace
Restrictions 6110-01-255-0889
IUID Required
6110-01-255-0889 is a Voltage Regulator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6110-01-255-0889
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6110-01-255-0889
- US Army (A202)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Sep 2007
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jun 2000
- Turkey (ZW01)
- Effective Date:
- 1 Jul 2003
Approved Sources 6110-01-255-0889
- Part Number
- Manufacturer
- Status
- 12287178-1
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 947F781-3
- 83843 - Sundstrand Corp Electric Power (Obsolete)
- Original Design
- Original Design
Datasheet 6110-01-255-0889
- Characteristic
- Specifications
- FIIG
- Specifications
- A540Z0
- End Item Identification [AGAV]
- Nsn 2350-01-136-8738,Nsn 2350-01-061-2445,Nsn 2350-01-087-1095
- Mounting Hole Diameter [ABTB]
- 0.278 Inches Minimum And 0.288 Inches Maximum
- Mounting Hole Quantity [ABTJ]
- 4
- Mounting Method [ACUN]
- Threaded Hole Or Unthreaded Hole
- Input Current Type [ANPJ]
- Dc
- Overall Length [ABHP]
- 8.000 Inches Maximum
- Overall Width [ABMK]
- 4.550 Inches Maximum
Management Data 6110-01-255-0889
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- L
- R
- Refer To Net Price 7983.00
- NET PRICE 7983.00
- R
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- JE
- Tanks
Tank, M1 Abrams Family of Vehicles (FOV)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 6110-01-255-0889
Freight Information 6110-01-255-0889
6110-01-255-0889 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 6110-01-255-0889 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 6110-01-255-0889 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 6110-01-255-0889 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 6110-01-255-0889 is not classified as a special type of cargo when transported by water. 6110-01-255-0889 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
