Distribution Box
6110011688077 011688077 PDSYS-SDC-150 8335844-10 1R1440
An enclosure which includes mounts, and protects such items as switches, circuit breakers, jacks, fuseholders, connectors, terminals and/or terminal boards, resistors, capacitors, transformers, and the like. It is primarily designed to distribute electrical power from one or more primary power source(s) such as generator(s) and battery(ies) to one or more electrical and/or electronic item(s). It may include a cover or door. For enclosures which include only circuit breakers, switches, jacks, fuseholders, terminals and/or terminal boards, see CIRCUIT BREAKER BOX; SWITCH BOX; JACK BOX; FUSE BOX and TERMINAL BOX. For enclosure primarily designed to interconnect two or more electrical and/or electronic items, except primary power source(s) see INTERCONNECTING BOX. For empty boxes which are designed to mount, but do not include electrical devices such as switches, jacks, fuseholders, terminals and/or terminal boards, see JUNCTION BOX. See also INTERCONNECTING CABINET; CONTROL (as modified); PANEL (1) (as modified); RELAY ASSEMBLY; PANEL, POWER DISTRIBUTION; SWITCHBOARD (as modified) and PANEL, FUSE. Excludes CONNECTOR-SWITCH. View more Distribution Box
October 2023
12
Product Information 6110-01-168-8077
Secondary Distribution Center - 4160 VAC

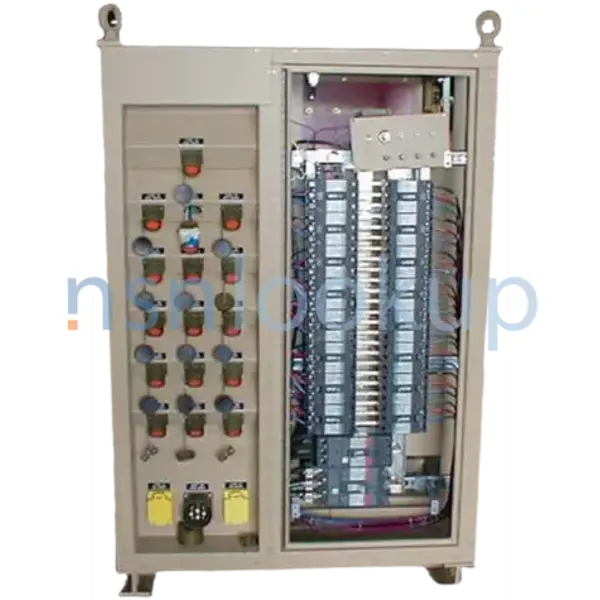

The Secondary Distribution Center (SDC) accepts primary power and reduces the voltage for distribution. Primary power can be either from a commercial power plant, diesel engine driven prime power generator sets, or from another SDC. The SDC is designed to accept primary power at 4160 VAC, 60 Hz, or 3800 VAC, 50 Hz, 3-Phase from any source utlilizing Loadbreak Elbows and reduce voltage (via a 150 kVa Transformer) to 120/208 VAC, 50/60Hz 3-Phase for distribution.
