6060-01-632-5279
Fiber Optic Plug Connector
6060016325279 016325279 MIL-PRF-28876/9 M28876/9B12P6
A fiber optic fitting with or without contact(s) constructed to be affixed to the end of a fiber optic cable for convenience in joining with another fiber optic connector(s), and is not designed to be mounted on a bulkhead, chassis, or panel. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, PLUG, ELECTRICAL; PLUG, TIP; DUMMY PLUG, TELEPHONE; DUMMY CONNECTOR, PLUG; INSERT, ELECTRICAL CONNECTOR; SOCKET, PLUG-IN ELECTRONIC COMPONENTS; JACK ASSEMBLY, TIP; PLUG ASSEMBLY TIP; and JACK TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). View more Fiber Optic Plug Connector
May 2023
1
Marketplace 6060-01-632-5279
Request a Quotation from participating marketplace vendors
Related Documents 6060-01-632-5279 5+ Documents (More...)
BUY NE FedMall Updated Every Day 6060-01-632-5279 RQST NE Updated Every Day 6060-01-632-5279 RQST
) https//www.nsnlookup.com /fsg-60/fsc-6060/us 6060-01-632-5279 Fiber Optic Plug Connector 6060016325279
Fiber Optic Plug Connector 6060016325279 Fiber Optic Plug Connector 6060016624654 Upgrade your
28876/9 Upgrade your Account Upgrade 6060-01-662 https //www.nsnlookup.com /fsg-60/fsc-6060/us MIL-PRF-28876/9
Fiber Optic Plug Connector 6060016325279 Upgrade your Account Upgrade 6060-01-632-5279Fiber Optic
Plug Connector6060016325279 016325279 MIL-PRF-28876/9 Upgrade your Account Upgrade 6060-01-662-4654Fiber
Upgrade your Account Upgrade 6060-01-662 https//www.nsnlookup.com /fsg-60/fsc-6060/us MIL-PRF-28876/9
https//www.nsnlookup.com /fsg-60/fsc-6060/us 6060-01-632-5279 Fiber Optic Plug Connector 6060016325279
https//www.nsnlookup.com /fsg-60/fsc-6060/us 6060-01-632-5279 Fiber Optic Plug Connector 6060016325279
Upgrade your Account Upgrade 6060-01-662 https//www.nsnlookup.com /fsg-60/fsc-6060/us MIL-PRF-28876/9
Restrictions 6060-01-632-5279
6060-01-632-5279 is a Fiber Optic Plug Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6060-01-632-5279
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6060-01-632-5279
- US Navy (N9BN)
- Effective Date:
- 1 Oct 2014
- Supplementary Collaborators:
- HD
Approved Sources 6060-01-632-5279
- Part Number
- Manufacturer
- Status
- M28876/9B12P6
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-PRF-28876/9
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 6060-01-632-5279
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0
- Body Angle In Deg [ADMW]
- 90.0

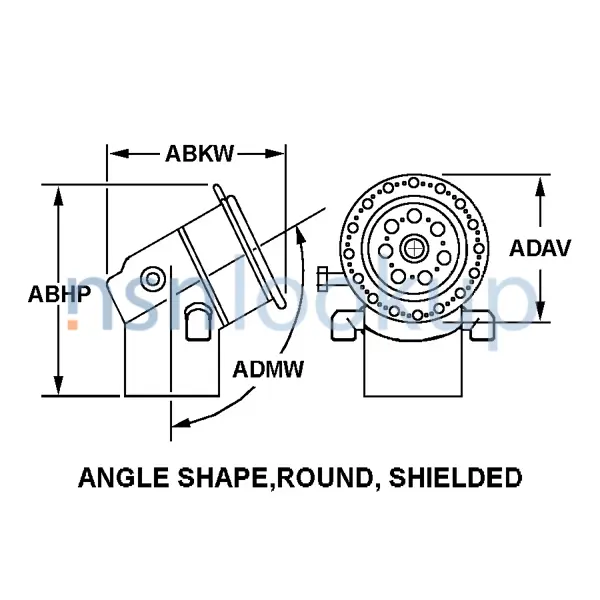

- Body Style [AAQL]
- Angle Shape, Round, Shielded
- Cable Entrance Diameter [AFQJ]
- 0.346 Inches Maximum
- Connector Locking Method [AFRV]
- Internally Threaded Coupling Ring
- Contact Position Arrangement Style [AFQX]
- 13-4 Single Mating End
- Contact Surface Treatment [CQYH]
- Ceramic Single Mating End Single Contact Grouping
- Features Provided [CBBL]
- Color Band Engagement Indicator
- Mating End Quantity [AFQW]
- 1
- Nominal Thread Size [CQJX]
- 0.875 Inches
- Operating Temp Rating [AWTN]
- -28.0 Deg Celsius Minimum And 65.0 Deg Celsius Maximum
- Included Contact Quantity [CXCG]
- 4 Single Mating End Single Contact Grouping
- Insert Position In Deg [AFRP]
- 0.0 And 51.0 And 141.0 And 184.0 And 242.0
- Polarization Method [AFRN]
- Key Or Multiple Key
- Shell Material [CSPT]
- Aluminum
- Shell Surface Treatment [CSWM]
- Cadmium
- Overall Diameter [ADAV]
- 1.141 Inches Maximum
- Overall Height [ABKW]
- 4.190 Inches Maximum
- Overall Length [ABHP]
- 4.250 Inches Maximum
- Special Features [FEAT]
- Includes A Protective Boot For The Cable And A Protective Cap For The Mating End.
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
DLA Procurement Analysis 6060-01-632-5279
Management Data 6060-01-632-5279
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 6060-01-632-5279
Freight Information 6060-01-632-5279
6060-01-632-5279 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 6060-01-632-5279 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 6060-01-632-5279 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 6060-01-632-5279 is not classified as a special type of cargo when transported by water. 6060-01-632-5279 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 6060-01-632-5279 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
