6060-01-523-0620
Fiber Optic Receptacle Connector
6060015230620 015230620 MC300E2-C-19-5PN
A fiber optic fitting with or without contact(s) constructed to be affixed to a fiber optic cable to join with another fiber optic connector(s) and is designed to be mounted on a bulkhead, wall, chassis, panel, or PRINTED WIRING BOARD. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, RECEPTACLE, ELECTRICAL; LAMPHOLDER; JACK, TELEPHONE; SOCKET (as modified); DUMMY CONNECTOR, RECEPTACLE; JACK ASSEMBLY, TIP; and PLUG ASSEMBLY, TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). View more Fiber Optic Receptacle Connector
November 2023
2
Marketplace 6060-01-523-0620
Request a Quotation from participating marketplace vendors
Related Documents 6060-01-523-0620 3+ Documents (More...)
Updated Every Day 6060-01-523-0620 RQST NE Related Documents 6060-01-523-0620 3+ Documents ( More...
) https//www.nsnlookup.com /fsg-60/fsc-6060/us 6060-01-523-0620 Fiber Optic Receptacle Connector 015230620
Restrictions 6060-01-523-0620
6060-01-523-0620 is a Fiber Optic Receptacle Connector that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 6060-01-523-0620
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 6060-01-523-0620
- US Navy (N9BN)
- Effective Date:
- 1 Sep 2012
- Former MOE Rule:
- N1R5
- Supplementary Collaborators:
- GGKEGT
Approved Sources 6060-01-523-0620
- Part Number
- Manufacturer
- Status
- MC300E2-C-19-5PN
- Manufacturer
- 0XY53 - Greenlee Tools, Inc. (Obsolete)
- Original Design
- Original Design
Datasheet 6060-01-523-0620
- Characteristic
- Specifications
- FIIG
- Specifications
- A039B0

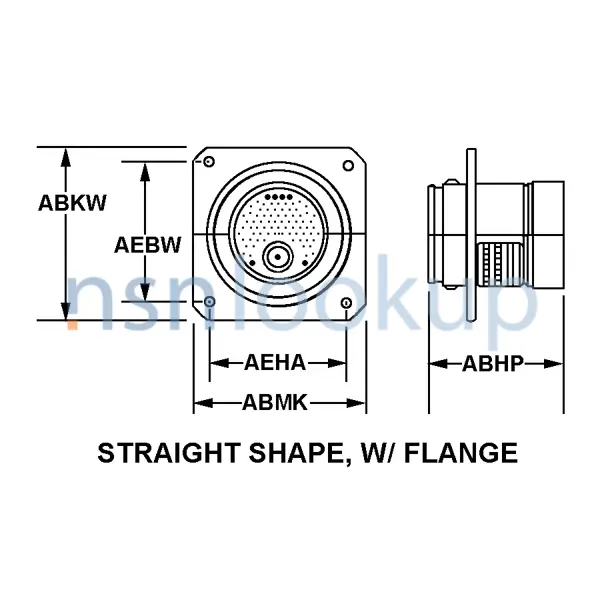

- Body Style [AAQL]
- Straight Shape W/Flange
- Overall Length [ABHP]
- 46.49 Millimeters Nominal
- Overall Height [ABKW]
- 36.58 Millimeters Nominal
- Overall Width [ABMK]
- 36.58 Millimeters Nominal
- Center To Center Distance Between Mounting Facilities Parallel To Height [AEBW]
- 29.35 Millimeters Nominal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Width [AEHA]
- 29.35 Millimeters Nominal
- Criticality Code Justification [CRTL]
- Agav
- End Item Identification [AGAV]
- Cable Assy,Fiber Optic
Weapon Systems (WSDC) 6060-01-523-0620
DLA Procurement Analysis 6060-01-523-0620
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 6060-01-523-0620
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material ID:
- QF
- Fighter Aircraft (F18 E/F)
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 6060-01-523-0620
Freight Information 6060-01-523-0620
6060-01-523-0620 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 057770. A Sub NMFC of Z. It has a NMFC Description of CABLE LIGHTGUIDE/WAVE GLASS FIBRE. 6060-01-523-0620 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 46205 which rates the freight between FCL and LCL. 6060-01-523-0620 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 6060-01-523-0620 is not classified as a special type of cargo when transported by water. 6060-01-523-0620 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 6060-01-523-0620 2 Records
Contracting Technical Data File (CTDF) 6060-01-523-0620 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
