5999-01-544-6765
Electronic Shielding Gasket
5999015446765 015446765 6393162-2 5793553 FIND 003 6393162
A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE. View more Electronic Shielding Gasket
May 2023
1
Marketplace 5999-01-544-6765
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5999-01-544-6765 5+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 6393162
Subscribe to View Vendor Details... 5793553FIND003 SHIELDING GASKET,ELECTRONIC 1 EA NS Request Quotation 6393162
Electronic Shielding Gasket 5999015446765 your Account Upgrade 5999-01-544-6765Electronic Shielding
Gasket5999015446765 015446765 6393162-2 5793553 5793553 your Account Upgrade 5999-01-544-6765Electronic
Shielding Gasket5999015446765 015446765 6393162 -2 SHIELDING GASKET,ELECTRONIC 1 EA NS Request Quotation
day Upgrade your Account Upgrade 5999-01-544-6823Electronic Shielding Gasket5999015446823 015446823 6393162
6393162-2 5793553 https//www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-559-2134 Thermostatic Switch
www.nsnlookup.com /fsg-59/fsc-5930/us 5930-01-559-2134 https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-544-6765
-2 SHIELDING GASKET,ELECTRONIC 1 EA NS Request Quotation 6393162 SHIELDING GASKET,ELECTRONIC 1 EA NS
https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-544-6765 Electronic Shielding Gasket 5999015446765
Restrictions 5999-01-544-6765
5999-01-544-6765 is a Electronic Shielding Gasket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-01-544-6765
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-544-6765
- US Navy (N9BN)
- Effective Date:
- 1 Oct 2006
- Supplementary Collaborators:
- HD
Approved Sources 5999-01-544-6765
- Part Number
- Manufacturer
- Status
- 6393162-2
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 5793553 FIND 003
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 6393162
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5999-01-544-6765
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Aperture Width [ADUE]
- 0.780 Inches Nominal
- Aperture Length [ADUF]
- 1.440 Inches Nominal
- Bolt Hole Quantity [AECS]
- 4
- Center To Center Distance Between Bolt Holes Along Length [ADUZ]
- 1.690 Inches Nominal
- Center To Center Distance Between Bolt Holes Along Width [ADUY]
- 0.468 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Wire And Composition
- Cross-Sectional Height [ADVN]
- 0.032 Inches Nominal
- Environmental Protection Material Location [CTNJ]
- Throughout Sealing Gasket
- Hole Diameter [AAUB]
- 0.130 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-N-281 Mil Std Single Material Response Emi/Rfi Conductor
- Material Document And Classification [MDCL]
- Zz-R-765,Class 3,Grade 30 Mil Std Single Material Response Environmental Seal
- Material [MATT]
- Copper Emi/Rfi Conductor And Nickel Alloy Emi/Rfi Conductor
- Material [MATT]
- Rubber Silicone Class Q Environmental Seal
- Slot Depth [AAZT]
- 0.500 Inches Nominal
- Slot Length [ABGD]
- 0.250 Inches Nominal
- Outside Edge To Inside Edge Smallest Distance Along Length [CTSC]
- 0.056 Inches Nominal
- Outside Edge To Inside Edge Smallest Distance Along Width [CTRH]
- 0.420 Inches Nominal
- Overall Length [ABHP]
- 2.280 Inches Nominal
- Overall Width [ABMK]
- 1.000 Inches Nominal
- Special Features [FEAT]
- Acrylic Psa One Side

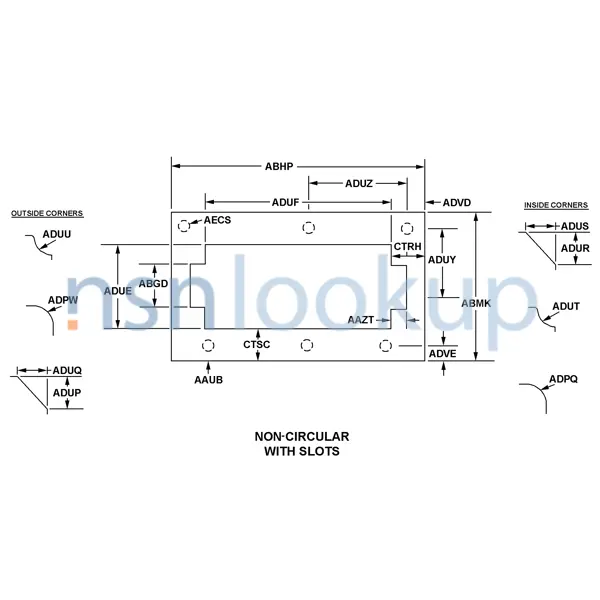

- Style Designator [STYL]
- Non-Circular With Slots
DLA Procurement Analysis 5999-01-544-6765
Management Data 5999-01-544-6765
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5999-01-544-6765
Freight Information 5999-01-544-6765
5999-01-544-6765 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 062800. A Sub NMFC of X. It has a NMFC Description of RADIO/TV RECEIVING SET CHASSIS ETC. 5999-01-544-6765 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5999-01-544-6765 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5999-01-544-6765 is not classified as a special type of cargo when transported by water. 5999-01-544-6765 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5999-01-544-6765
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5999-01-544-6765 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
