5999-01-513-9683
Electrical-Electronic Component Mounting Pad
5999015139683 015139683 HS5021-0102
An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE. View more Electrical-Electronic Component Mounting Pad
May 2023
1
Marketplace 5999-01-513-9683
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-513-9683 1+ Documents (More...)
Updated Every Day 5999-01-513-9683 RQST NE Related Documents 5999-01-513-9683 1+ Documents ( More...
NE FedMall Updated Every Day 5999-01-513-9683 RQST NE Updated Every Day 5999-01-513-9683 RQST Updated
Restrictions 5999-01-513-9683
5999-01-513-9683 is a Electrical-Electronic Component Mounting Pad that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-01-513-9683
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-513-9683
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- BF
Approved Sources 5999-01-513-9683
- Part Number
- Manufacturer
- Status
- HS5021-0102
- Manufacturer
- 8V613 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- HS5021-0102
- 02731 - Mcdonnell Douglas Helicopter Co Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5999-01-513-9683
- Characteristic
- Specifications
- FIIG
- Specifications
- A03600
- End Item Identification [AGAV]
- 1520--1-106-9519; Wsd: Helicopter, Apache Ah-4

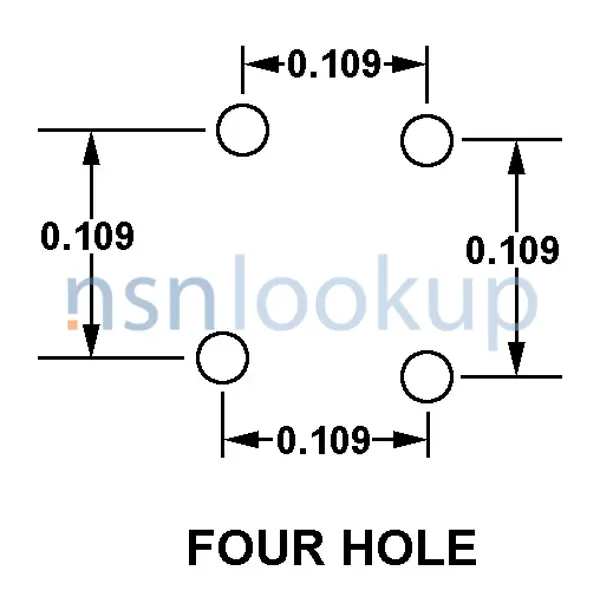

- Accommodated Device Mounting Hole Pattern Style [CZGX]
- Four Hole
- Accommodated Device Mounting Hole Quantity [CZGY]
- 4
- Body Style [AAQL]
- Disk
- Color [HUES]
- Natural
- Material [MATT]
- Plastic Polyamide
- Overall Diameter [ADAV]
- 0.235 Inches Minimum And 0.255 Inches Maximum
- Overall Height [ABKW]
- 0.110 Inches Minimum And 0.130 Inches Maximum
- Special Features [FEAT]
- Four 0.036 In. Dia Lead Holes Spaced On 0.100 In Dia
DLA Procurement Analysis 5999-01-513-9683
Management Data 5999-01-513-9683
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5999-01-513-9683
Freight Information 5999-01-513-9683
5999-01-513-9683 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093600. A Sub NMFC of X. It has a NMFC Description of BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC. 5999-01-513-9683 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 5999-01-513-9683 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5999-01-513-9683 is not classified as a special type of cargo when transported by water. 5999-01-513-9683 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5999-01-513-9683
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5999-01-513-9683 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
