5999-01-508-5023
Electronic Shielding Gasket
5999015085023 015085023 1223-0390 551-6685225 PC NO 46 21710439 551-6685225
A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE. View more Electronic Shielding Gasket
May 2023
1
Marketplace 5999-01-508-5023
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-508-5023 5+ Documents (More...)
) https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-508-5023 Electronic Shielding Gasket 5999015085023
Electronic Shielding Gasket 5999015085023 5999-01-508-5023 Electronic Shielding Gasket 5999015085023
Documents 6210-01-507-7705 2+ Documents ( More... https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-508-5023
Electronic Shielding Gasket 5999015085023 Documents 5999-01-508-5023 5+ Documents ( More... https
//www.nsnlookup.com /fsg-62/fsc-6210/us 6210-01-507-7692 Indicator Light 6210015077692015077692 551-6685225
Electronic Shielding Gasket 5999015085023 -5023 Electronic Shielding Gasket 5999015085023 https
//www.nsnlookup.com /fsg-62/fsc-6210/us 6210-01-507-8739 Indicator Light 6210015078739015078739 551-6685225
Electronic Shielding Gasket 5999015085023 59990150850235999015085023 Supply6130016067365 01606736512110076
PC NO 45 569-7067768-955 H677-2201-955 21710437 4521902-D00012 569-7067768 551-6685225 A shaped metallic
Electronic Shielding Gasket 5999015085023 your Account Upgrade 5999-01-508-5023Electronic Shielding
Restrictions 5999-01-508-5023
5999-01-508-5023 is a Electronic Shielding Gasket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-01-508-5023
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-508-5023
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Supplementary Collaborators:
- HDJB
- United States of America (ZZ)
Approved Sources 5999-01-508-5023
- Part Number
- Manufacturer
- Status
- 1223-0390
- Manufacturer
- 64098 - Conductive Systems, Inc. (Active)
- Primary Buy
- Primary Buy
- 551-6685225 PC NO 46
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 21710439
- 07618 - Ducommun Labarge Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 551-6685225
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing

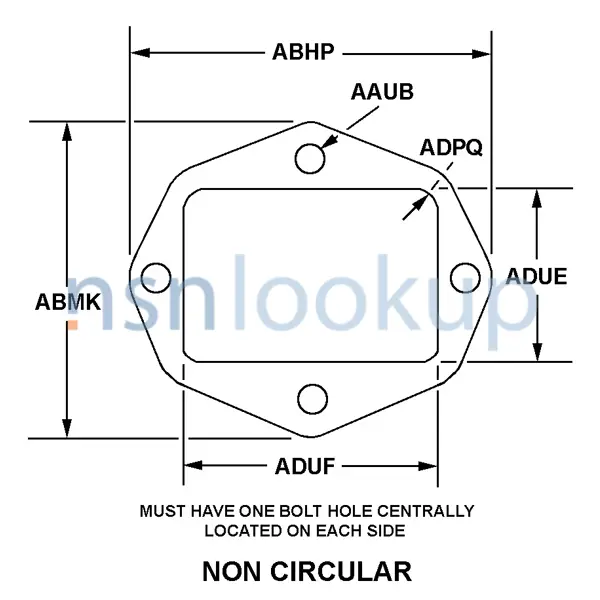

Datasheet 5999-01-508-5023
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Aperture Width [ADUE]
- 0.930 Inches Nominal
- Aperture Length [ADUF]
- 1.440 Inches Nominal
- Bolt Hole Quantity [AECS]
- 2
- Bolt Hole Diameter [AHNX]
- 0.140 Inches Nominal
- End Item Identification [AGAV]
- Weapon System:Seawolf Class Ssn
- Material Document And Classification [MDCL]
- Zz-R-765 Fed Std 2Nd Material Response Environmental Seal
- Material [MATT]
- Aluminum Alloy 5056 Emi/Rfi Conductor
- Material [MATT]
- Silicone Environmental Seal
- Material Document And Classification [MDCL]
- Ams-4182 National Spec 1St Material Response Emi/Rfi Conductor
- Overall Length [ABHP]
- 2.280 Inches Nominal
- Overall Width [ABMK]
- 1.140 Inches Nominal
- Special Features [FEAT]
- End Item:Dehydrator Control Panel
- Style Designator [STYL]
- Non Circular
- Temp Rating [ABJH]
- -70.0 Deg Fahrenheit And 500.0 Deg Fahrenheit
Weapon Systems (WSDC) 5999-01-508-5023
DLA Procurement Analysis 5999-01-508-5023
Management Data 5999-01-508-5023
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5999-01-508-5023
Freight Information 5999-01-508-5023
5999-01-508-5023 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062800. A Sub NMFC of X. It has a NMFC Description of RADIO/TV RECEIVING SET CHASSIS ETC. 5999-01-508-5023 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5999-01-508-5023 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5999-01-508-5023 is not classified as a special type of cargo when transported by water. 5999-01-508-5023 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
