5999-01-445-5909
Electrical-Electronic Component Heat Sink
5999014455909 014455909 G165044-3
An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies. View more Electrical-Electronic Component Heat Sink
May 2023
5
Marketplace 5999-01-445-5909
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-445-5909 1+ Documents (More...)
United States (US) 4. 5999-01-445-5909 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5999-01-445-5909 RQST Updated Every Day 5999-01-445-5909 RQST NE Related Documents
Restrictions 5999-01-445-5909
5999-01-445-5909 is a Electrical-Electronic Component Heat Sink that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-01-445-5909
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-445-5909
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Aug 2005
- Australia (ZA01)
- Effective Date:
- 1 Jan 2004
Approved Sources 5999-01-445-5909
- Part Number
- Manufacturer
- Status
- G165044-3
- Manufacturer
- 3B150 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- G165044-3
- 54X10 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- G165044-3
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5999-01-445-5909
- Characteristic
- Specifications
- FIIG
- Specifications
- A03600
- End Item Identification [AGAV]
- R-2199A/Sps-4 E/I Fscm 49956

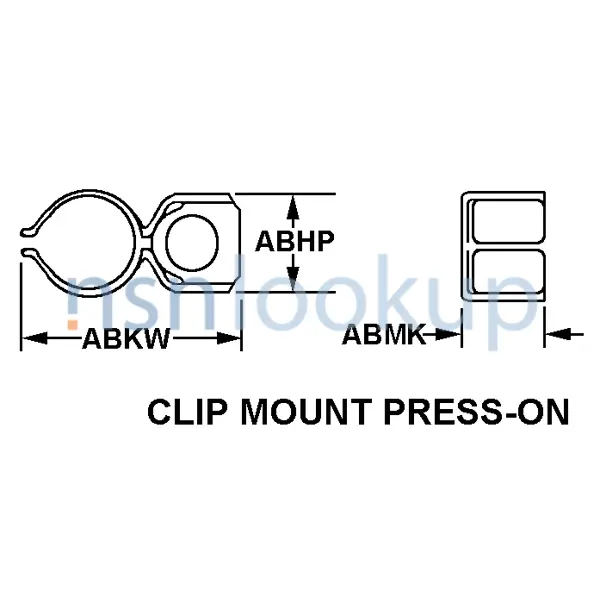

- Body Style [AAQL]
- Clip Mount Press-On
- Material [MATT]
- Copper Alloy 110
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole Single Mounting Facility
- Overall Height [ABKW]
- 0.975 Inches Nominal
- Overall Length [ABHP]
- 0.580 Inches Nominal
- Overall Width [ABMK]
- 0.620 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.133 Inches Minimum Single Mounting Facility And 0.139 Inches Maximum Single Mounting Facility
DLA Procurement Analysis 5999-01-445-5909
Management Data 5999-01-445-5909
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5999-01-445-5909
Freight Information 5999-01-445-5909
5999-01-445-5909 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063085. A Sub NMFC of X. It has a NMFC Description of SINKS HEAT. 5999-01-445-5909 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 5999-01-445-5909 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5999-01-445-5909 is not classified as a special type of cargo when transported by water. 5999-01-445-5909 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5999-01-445-5909 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
