5999-01-394-5142
Electrical-Electronic Component Heat Sink
5999013945142 013945142 A410A049-102
An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies. View more Electrical-Electronic Component Heat Sink
June 2023
7
Marketplace 5999-01-394-5142
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-394-5142 1+ Documents (More...)
United States (US) 4. 5999-01-394-5142 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5999-01-394-5142 RQST Updated Every Day 5999-01-394-5142 RQST NE Related Documents
Restrictions 5999-01-394-5142
5999-01-394-5142 is a Electrical-Electronic Component Heat Sink that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-01-394-5142
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-394-5142
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- United Kingdom (ZK01)
- Effective Date:
- 1 Feb 1996
Approved Sources 5999-01-394-5142
- Part Number
- Manufacturer
- Status
- A410A049-102
- Manufacturer
- 0D0D0 - Bae Systems Information And (Active)
- Primary Buy
- Primary Buy
- A410A049-102
- 88818 - Kearfott Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5999-01-394-5142
- Characteristic
- Specifications
- FIIG
- Specifications
- A03600

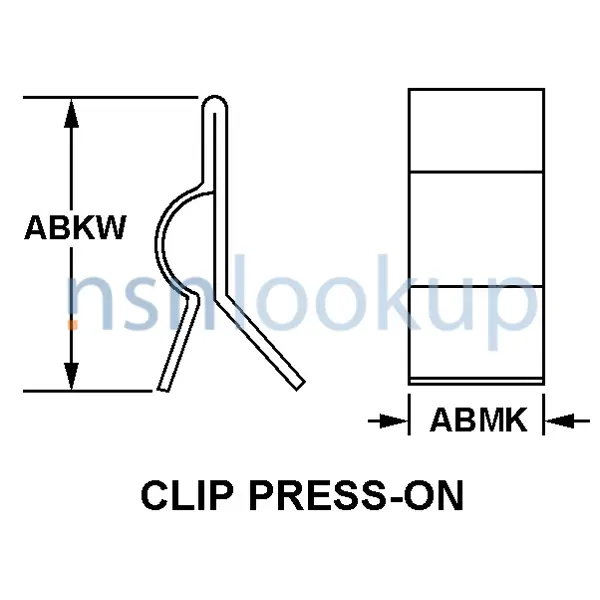

- Body Style [AAQL]
- Clip Press-On
- Overall Height [ABKW]
- 0.500 Inches Nominal
- Overall Width [ABMK]
- 0.360 Inches Nominal
- Material [MATT]
- Aluminum Alloy 6061
- Material Document And Classification [MDCL]
- Qq-A-225/8 Fed Spec Single Material Response
- Surface Treatment [SFTT]
- Chromate
- Surface Treatment Document And Classification [STDC]
- Mil-C-5541, Cl 1A Mil Spec Single Treatment Response
- Mounting Facility Type And Quantity [AXHR]
- 2 Slot First Mounting Facility
- Mounting Facility Type And Quantity [AXHR]
- 1 Slot Second Mounting Facility
- Mounting Slot Length [ABVG]
- 0.295 Inches Nominal First Mounting Facility
- Mounting Slot Length [ABVG]
- 0.195 Inches Nominal Second Mounting Facility
- Special Features [FEAT]
- Insulating Compound To Be Applied To One Side
Weapon Systems (WSDC) 5999-01-394-5142
DLA Procurement Analysis 5999-01-394-5142
Management Data 5999-01-394-5142
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5999-01-394-5142
Freight Information 5999-01-394-5142
5999-01-394-5142 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063085. A Sub NMFC of X. It has a NMFC Description of SINKS HEAT. 5999-01-394-5142 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 5999-01-394-5142 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5999-01-394-5142 is not classified as a special type of cargo when transported by water. 5999-01-394-5142 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5999-01-394-5142 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
