5999-01-372-3663
Electrical-Electronic Component Mounting Pad
5999013723663 013723663 A-A-55485/7 A-55485/07-005N M38527/07-005N MIL-M-38527/7 10129534
An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE. View more Electrical-Electronic Component Mounting Pad
November 2023
7
Marketplace 5999-01-372-3663
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5999-01-372-3663 5+ Documents (More...)
BUY NE Updated Every Day 5999-01-372-3663 RQST NE Updated Every Day 5999-01-372-3663 RQST Updated Every
RQST NE Updated Every Day 5999-01-372-3663 RQST Updated Every Day 5999-01-372-3663 RQST NE Related
640055P6 7242150P001 M38527/07-005N M38527/7-005N A-55485/07-005D M38527/07-005D MIL-M-38527/7 10139601
5999013723663 013723663,A-A-55485/7 A-55485/07-005N M38527/07-005NMIL-M-38527/7 10129534 An item
M38527/7-005N A-55485 https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-372-3663 5999013723663
013723663,A-A-55485/7 A-55485/07-005N M38527/07-005N MIL-M-38527/7 10129534 An item fabricated from
An item fabricated from electrically A-A-55485/7 MOUNTING PAD 10 EA NS Request Quotation Subscribe
MOUNTING PAD https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-372-3663 5999013723663 013723663
Mounting Pad5999013723663 013723663 A-A-55485/7 ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5999
material An item fabricated from electrically A-A-55485/7 https//www.nsnlookup.com /fsg-59/fsc-5999/
Restrictions 5999-01-372-3663
5999-01-372-3663 is a Electrical-Electronic Component Mounting Pad that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5999-01-372-3663
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-372-3663
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKE
- Finland (WF01)
- Effective Date:
- 1 Apr 2011
- Spain (YB01)
- Effective Date:
- 1 Mar 2003
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5999-01-372-3663
- Part Number
- Manufacturer
- Status
- A-55485/07-005N
- Manufacturer
- 58536 - Federal Commercial Item Description (Active)
- Definitive Standard
- Definitive Standard
- A-A-55485/7
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
- M38527/07-005N
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-M-38527/7
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10129534
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5999-01-372-3663
- Characteristic
- Specifications
- FIIG
- Specifications
- A03600
- Accommodated Device Mounting Hole Pattern Style [CZGX]

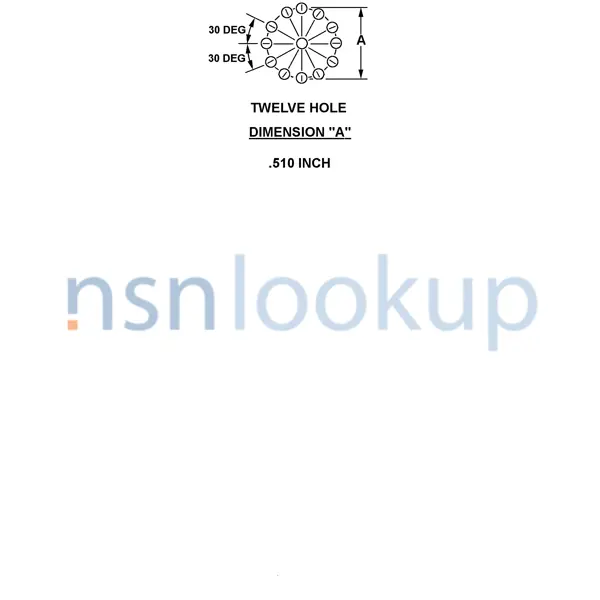

- Twelve Hole - 0.510 Inch
- Accommodated Device Mounting Hole Quantity [CZGY]
- 12
- Body Style [AAQL]
- Disk
- Color [HUES]
- Natural
- Material Document And Classification [MDCL]
- Mil-P-46112 Mil Spec Single Material Response
- Material [MATT]
- Plastic Polyamide
- Mounting Facility Type And Quantity [AXHR]
- 12 Unthreaded Hole All Mounting Facilities
- Overall Diameter [ADAV]
- 0.580 Inches Nominal
- Overall Height [ABKW]
- 0.420 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.510 Inches Nominal Single Mounting Facility
Weapon Systems (WSDC) 5999-01-372-3663
DLA Procurement Analysis 5999-01-372-3663
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5999-01-372-3663
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5999-01-372-3663
Freight Information 5999-01-372-3663
5999-01-372-3663 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093600. A Sub NMFC of X. It has a NMFC Description of BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC. 5999-01-372-3663 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 5999-01-372-3663 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5999-01-372-3663 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5999-01-372-3663 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
