5999-01-344-6167
Electrical-Electronic Component Mounting Pad
5999013446167 013446167 532-050 11575
An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE. View more Electrical-Electronic Component Mounting Pad
May 2023
3
Marketplace 5999-01-344-6167
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-344-6167 5+ Documents (More...)
United States (US) 4. 5999-01-344-6167 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5999-01-344-6167 RQST NE Updated Every Day 5999-01-344-6167 RQST
https//www.nsnlookup.com /fsg-30/fsc-3020/us 3020-01-066-6634 Worm Gear 3020010666634010666634 64-11575
fr 5330-14-294-9247 Gasket 5330142949247 142949247,DH11575 Membrane Assembly6665995139215 995139215 11575
/fsg-53/fsc-5330/fr
to enable JavaScript in your web browser . 5340-20-003-3874Retaining Strap5340200033874 200033874 11575
Gasket 5330142949247142949247,DH11575 5998251411180 251411180 NumberManufacturerStatus5-13-11575 https
-STRIP 11575 A preformed item of rigid or semirigid material designed to partially surround other items
enable JavaScript in your web browser . 6665-99-513-9215C Membrane Assembly6665995139215 995139215 11575
no 2030-25-120-8307 Oilseal 2030251208307 251208307,11575 Membrane Assembly 6665995139215995139215 11575
-90NBR/108V5-11575-90NBR10859201705005006 A https//www.nsnlookup.com /fsg-53/fsc-5315/fr 5315-14-432
Restrictions 5999-01-344-6167
5999-01-344-6167 is a Electrical-Electronic Component Mounting Pad that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5999-01-344-6167
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-344-6167
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
Approved Sources 5999-01-344-6167
- Part Number
- Manufacturer
- Status
- 11575
- Manufacturer
- 60132 - Rantec Power Systems Inc. (Active)
- Original Design
- Original Design
- 532-050
- 32559 - Bivar Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5999-01-344-6167
- Characteristic
- Specifications
- FIIG
- Specifications
- A03600

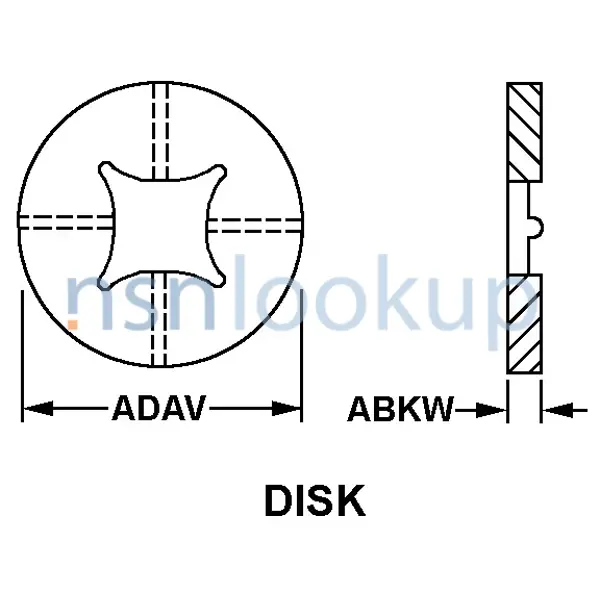

- Body Style [AAQL]
