5999-01-342-3993

Electrical-Electronic Component Heat Sink

5999013423993 013423993 10139139-101 07-2080 578622B03200G 5786B22B03200 07-7315 5786B 5786B22B03200G

An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies. View more Electrical-Electronic Component Heat Sink

Managed by United States

NSN Created on 22 Jul 1991

Data Last Changed
November 2023

NATO Update Count
8

NATO Data Quality

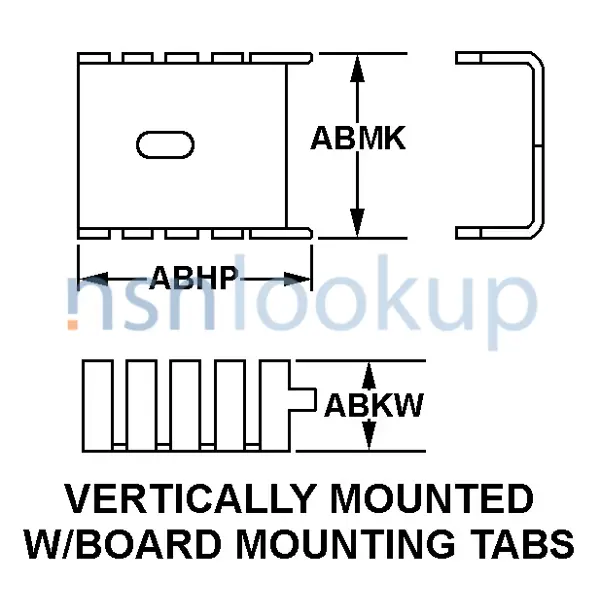

AAQL Style 11A for 5999-01-342-3993 1/1 — NSN 5999-01-342-3993 (Identification) 1/1

Marketplace 5999-01-342-3993

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

5999-01-342-3993 RQST NE

Restrictions 5999-01-342-3993

5999-01-342-3993 is a Electrical-Electronic Component Heat Sink that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.

Import and Export 5999-01-342-3993

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5999-01-342-3993

US Air Force (FXGX)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXTX; AMC 3 AMSC Z IMC Z IMCACTY SX

US Navy (N9BN)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ND
Supplementary Collaborators:: GTHD; AMC 3 AMSC Z IMC Z IMCACTY HD

Poland (WP01)
Effective Date:: 1 Oct 2004

Spain (YB01)
Effective Date:: 1 May 1997

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 5999-01-342-3993

Part Number
Manufacturer
Status
10139139-101: 4X560 - Tern Technology, Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
07-2080: 57705 - Huntron Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
578622B03200G: 1N6F3 - Boyd Laconia Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
5786B22B03200: 1N6F3 - Boyd Laconia Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
07-7315: 57705 - Huntron Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5786B22B03200: 30161 - Aavid Thermalloy Llc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
5786B: 30161 - Aavid Thermalloy Llc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5786B22B03200G: 1N6F3 - Boyd Laconia Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5

Datasheet 5999-01-342-3993

Characteristic
Specifications
FIIG: A03600
End Item Identification [AGAV]: 6625-01-258-2893 Tester,Semicond
Body Style [AAQL]: Vertically Mounted W/Board Mounting Tabs
Material [MATT]: Aluminum Alloy
Mounting Facility Type And Quantity [AXHR]: 2 Unthreaded Hole Single Mounting Facility
Overall Height [ABKW]: 0.500 Inches Nominal
Overall Length [ABHP]: 1.480 Inches Nominal
Overall Width [ABMK]: 1.155 Inches Nominal
Unthreaded Mounting Hole Diameter [AEBV]: 0.150 Inches Nominal Single Mounting Facility
Surface Treatment [SFTT]: Anodize And Tin

Weapon Systems (WSDC) 5999-01-342-3993

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5999-01-342-3993

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5999-01-342-3993

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Mar 2020: Department of the Air Force (DF); EA; Subscribe; 1

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

EH: ELECTRONIC COMPONENTS

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

NATO Stock Numbers Related to 5999-01-342-3993

5999-14-333-2737 5999-99-618-3300 5999-14-482-2254 5999-14-369-4130 5961-14-303-4085 5999-14-426-7062 5999-99-168-5473 5999-14-345-6933 5999-14-462-2178 5999-27-012-9296 5999-99-115-0239 5999-14-409-4224 5999-14-367-1548 5999-21-894-9736 5999-14-550-9423 6645-14-383-7272 5999-14-384-7323 5999-14-406-3412

Freight Information 5999-01-342-3993

5999-01-342-3993 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063085. A Sub NMFC of X. It has a NMFC Description of SINKS HEAT. 5999-01-342-3993 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 5999-01-342-3993 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5999-01-342-3993 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5999-01-342-3993 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5999-01-342-3993

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Electrical Instrument; 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"; 85 to 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; --; --; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5999-01-342-3993 2 Records
