5999-01-267-9733
Electronic Shielding Gasket
5999012679733 012679733 10-40-450-20S 7010047-007
A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE. View more Electronic Shielding Gasket
November 2023
4
Marketplace 5999-01-267-9733
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-267-9733 5+ Documents (More...)

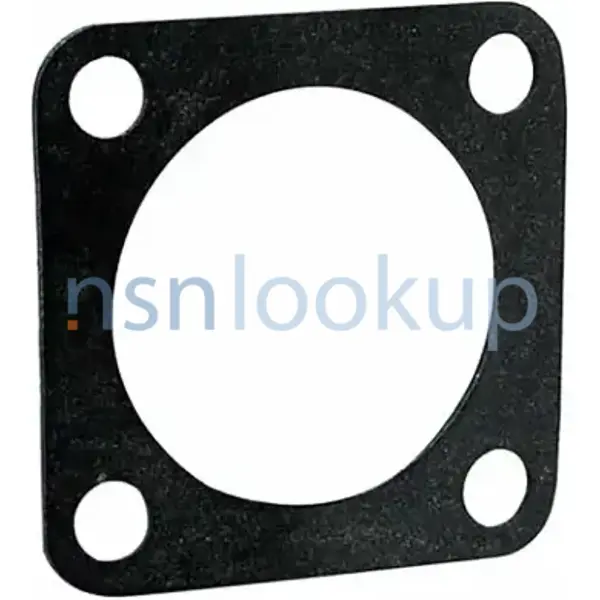

Photo 1/3 NSN 5999-01-267-9733 (Identification) 2/3 NSN 5999-01-267-9733 (Identification) 3/3 -
RQST NE Updated Every Day 5999-01-267-9733 RQST Updated Every Day 5999-01-267-9733 RQST NE Related
Restrictions 5999-01-267-9733
5999-01-267-9733 is a Electronic Shielding Gasket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-01-267-9733
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-267-9733
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHX
- Poland (WP01)
- Effective Date:
- 1 Jul 2007
Approved Sources 5999-01-267-9733
- Part Number
- Manufacturer
- Status
- 7010047-007
- Manufacturer
- 12436 - Bae Systems Information And (Active)
- Original Design
- Original Design
- 10-40-450-20S
- 77820 - Amphenol Corp (Active)
- Secondary Buy
- Secondary Buy
- 10-40-450-20S
- 74868 - Amphenol Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5999-01-267-9733
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Aperture Diameter [ABVL]
- 1.250 Inches Minimum And 1.266 Inches Maximum
- Bolt Hole Quantity [AECS]
- 4
- Center To Center Distance Between Bolt Holes Along Length [ADUZ]
- 1.156 Inches Nominal
- Center To Center Distance Between Bolt Holes Along Width [ADUY]
- 1.156 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Emi
- Cross-Sectional Height [ADVN]
- 0.020 Inches Nominal
- Environmental Protection Material Location [CTNJ]
- Throughout Rf Shielding Gasket
- Hole Diameter [AAUB]
- 0.203 Inches Nominal
- Material [MATT]
- Aluminum Emi/Rfi Conductor
- Material [MATT]
- Rubber Chloroprene Class Cr Environmental Seal
- Outside Corner Radius [ADPW]
- 0.176 Inches Nominal
- Material Document And Classification [MDCL]
- Ams-3222 Fed Spec Single Material Response Environmental Seal
- Outside Edge To Bolt Hole Center Distance Along Length [ADVE]
- 0.125 Inches Nominal
- Outside Edge To Bolt Hole Center Distance Along Width [ADVD]
- 0.125 Inches Nominal
- Overall Length [ABHP]
- 1.500 Inches Minimum And 1.516 Inches Maximum
- Overall Width [ABMK]
- 1.500 Inches Minimum And 1.516 Inches Maximum
- Style Designator [STYL]
- Non-Circular
Weapon Systems (WSDC) 5999-01-267-9733
DLA Procurement Analysis 5999-01-267-9733
- Last Stock Position:
- 114 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5999-01-267-9733
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5999-01-267-9733
Freight Information 5999-01-267-9733
5999-01-267-9733 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062800. A Sub NMFC of X. It has a NMFC Description of RADIO/TV RECEIVING SET CHASSIS ETC. 5999-01-267-9733 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5999-01-267-9733 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5999-01-267-9733 is not classified as a special type of cargo when transported by water. 5999-01-267-9733 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5999-01-267-9733
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
