5999-01-153-9432
Electrical Contact
5999011539432 011539432 R354273-11 66099-2 BP2091
An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP. View more Electrical Contact
June 2023
8
Marketplace 5999-01-153-9432
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-153-9432 3+ Documents (More...)
Details... 66099-2 CONTACT,ELECTRICAL 2 EA NS Request Quotation Updated Every Day 5999-01-153-9432 RQST
NE Updated Every Day 5999-01-153-9432 RQST Updated Every Day 5999-01-153-9432 RQST NE Related Documents
Electrical Contact 5999011539432 011539432 Upgrade your Account Upgrade 5999-01-153-9432Electrical
Contact5999011539432 011539432 R354273-11 66099-2 CONTACT,ELECTRICAL 22 EA NS Request Quotation Subscribe
Rule:WN01Effective Date:1 Feb 2001 Approved Sources 1430-00-303-4161 Part NumberManufacturerStatus25-66099-2
Restrictions 5999-01-153-9432
5999-01-153-9432 is a Electrical Contact that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-01-153-9432
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-153-9432
- US Army (A918)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZ
- US Air Force (FXGX)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5999-01-153-9432
- Part Number
- Manufacturer
- Status
- R354273-11
- Manufacturer
- 04071 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 66099-2
- 00779 - Te Connectivity Corporation (Active)
- Secondary Buy
- Secondary Buy
- R354273-11
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- R354273-11
- 0FW39 - Bae Systems Tactical Vehicle Systems (Active)
- Secondary Buy
- Secondary Buy
- BP2091
- 27361 - Burke Products Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5999-01-153-9432
- Characteristic
- Specifications
- FIIG
- Specifications
- A222A0
- Cable Entrance Diameter [AFQJ]
- 0.040 Inches Minimum And 0.050 Inches Maximum
- Material [MATT]
- Copper Alloy Body And Contact
- Mounting Method [AXGY]
- Terminal

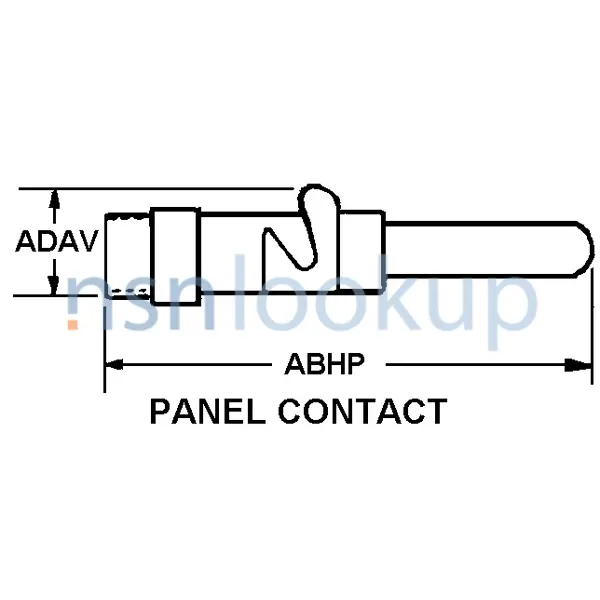

- Style Designator [STYL]
- Panel Contact
- Overall Diameter [ADAV]
- 0.080 Inches Nominal
- Overall Length [ABHP]
- 1.000 Inches Nominal
- Pin Diameter [ABVV]
- 0.062 Inches Nominal
- Surface Treatment [SFTT]
- Tin Body And Contact
- Terminal Type And Quantity [TTQY]
- 1 Crimp End Opposite Contact
Weapon Systems (WSDC) 5999-01-153-9432
DLA Procurement Analysis 5999-01-153-9432
Management Data 5999-01-153-9432
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5999-01-153-9432
Freight Information 5999-01-153-9432
5999-01-153-9432 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5999-01-153-9432 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5999-01-153-9432 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5999-01-153-9432 is not classified as a special type of cargo when transported by water. 5999-01-153-9432 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5999-01-153-9432
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5999-01-153-9432 2 Records
Contracting Technical Data File (CTDF) 5999-01-153-9432 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- R
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
