5999-01-068-3639
Electrical-Electronic Component Mounting Pad
5999010683639 010683639 60-11-D383-1674 3013154-11 A3013154-11
An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE. View more Electrical-Electronic Component Mounting Pad
May 2023
2
Marketplace 5999-01-068-3639
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-068-3639 5+ Documents (More...)
(Identification) 1/2 NSN 5999-01-068-3639 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5999-01-068-3639 RQST NE Updated Every Day 5999-01-068-3639 RQST
5999010683639 010683639,60-11-D383-1674 6545013249292013249292,UA-D383 https//www.nsnlookup.com
/fsg-59/fsc-5999/us 5999-01-068-3639 5999010683639 5999-01-068-3639Electrical-Electronic Component https
5999010683639 010683639,60-11-D383-1674 Upgrade 5999-01-068-3639Electrical-Electronic Component
Mounting Pad5999010683639 010683639 60-11-D383 -1674 60-11-D383-16743013154-11A3013154-11 An item fabricated
5999010683639 010683639,60-11-D383-1674 Upgrade 5999-01-068-3639Electrical-Electronic Component
Mounting Pad5999010683639 010683639 60-11-D383 -1674 60-11-D383-16743013154-11A3013154-11 An item fabricated
5999010683639 010683639,60-11-D383-1674 Upgrade 5999-01-068-3639Electrical-Electronic Component
Mounting Pad5999010683639 010683639 60-11-D383 -1674 60-11-D383-16743013154-11A3013154-11 An item fabricated
Restrictions 5999-01-068-3639
5999-01-068-3639 is a Electrical-Electronic Component Mounting Pad that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-01-068-3639
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-068-3639
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
Approved Sources 5999-01-068-3639
- Part Number
- Manufacturer
- Status
- 60-11-D383-1674
- Manufacturer
- 18565 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 3013154-11
- 1FY32 - New England Die Cutting, Inc. (Active)
- Primary Buy
- Primary Buy
- A3013154-11
- 80063 - Us Army Communications & Electronics (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5999-01-068-3639
- Characteristic
- Specifications
- FIIG
- Specifications
- A03600

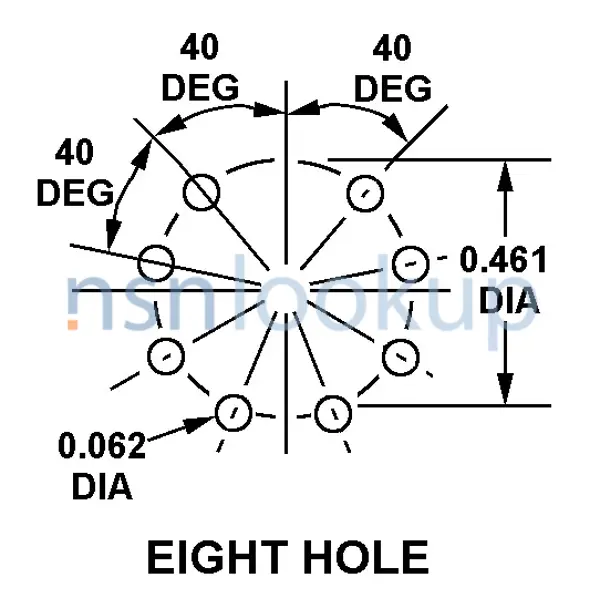

- Accommodated Device Mounting Hole Pattern Style [CZGX]
- Eight Hole
- Accommodated Device Mounting Hole Quantity [CZGY]
- 8
- Body Style [AAQL]
- Oval
- Color [HUES]
- Blue
- End Item Identification [AGAV]
- Radio System, Single Channel Ground And Airborne-V (Sincgars)
- Material [MATT]
- Glass Fiber And Rubber Silicone Class Q
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole All Mounting Facilities
- Overall Height [ABKW]
- 0.008 Inches Nominal
- Overall Length [ABHP]
- 1.655 Inches Nominal
- Overall Width [ABMK]
- 1.187 Inches Nominal
- Special Features [FEAT]
- Materials-Glass Cloth Reinforced; Voltage Breakdown-1500 Volts
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.156 Inches Nominal All Mounting Facilities
