Delay Line
5999010336341 010336341 2534934-2 V1554
An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY. View more Delay Line
May 2023
9
Marketplace 5999-01-033-6341
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-033-6341 5+ Documents (More...)
V1554 DELAY LINE 50 EA NS Request Quotation FedMall Updated Every 15 Minutes 5999-01-033-6341 BUY NE
.. ) https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-033-6341 Delay Line 5999010336341 010336341,2534934
Delay Line 5999010336341 010336341,2534934-2 $1 a day Upgrade your Account Upgrade 5999-01-033-
6341Delay Line5999010336341 010336341 2534934-2 V1554 V1554 DELAY LINE 50 EA NS Request Quotation FedMall
-090 V1554-090 A washer having a centrally located hole with a solid or laminated cross-section and two
2/3 NSN 5999-01-033-6341 (Identification V1554 https//www.nsnlookup.com /fsg-53/fsc-5310/au 5310-66-
5999-01-033-6341Delay Line5999010336341 010336341 2534934 www.nsnlookup.com /fsg-59/fsc-5999/us 5999-
01-033-6341 Delay Line 5999010336341 010336341,2534934-2 2534934 Delay Line 5999004913650 004913650,2534934
Delay Line 5999010336341 010336341,2534934-2 00-491-3650 Delay Line 5999004913650 004913650,2534934
Restrictions 5999-01-033-6341
5999-01-033-6341 is a Delay Line that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5999-01-033-6341
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-033-6341
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5999-01-033-6341
- Part Number
- Manufacturer
- Status
- 2534934-2
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- V1554
- 95924 - Neurotech Corp Control Electronics (Active)
- Secondary Buy
- Secondary Buy
- 2534934-2
- 00222 - Esc Control Electronics Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5999-01-033-6341
- Characteristic
- Specifications
- FIIG
- Specifications
- A32100
- Adjustment Device Quantity [ACZT]
- 2
- Adjustment Device Drive Type [ACZU]
- Shaft
- Attenuation In Decibels [BHTH]
- 3.500
- Body Length [ADAQ]
- 3.500 Inches Nominal
- Body Style [AAQL]
- Rectangular, Bracketed
- Body Width [ADAT]
- 2.250 Inches Nominal
- Delay Time Variation Method [CCDN]
- Variable
- Flat Height [ABNC]
- 0.216 Inches Nominal
- Flatted Portion Length [ABXQ]
- 0.250 Inches Nominal
- Mounting Facility Quantity [AKPV]
- 4
- Mounting Facility [AZGM]
- Slotted Hole
- Mounting Provision Arrangement Style [BBBW]
- Four Position Rectangular
- Operating Temp Range [AFGA]
- +0.0 To 70.0 Deg Celsius
- Output Impedance Rating [ANSR]
- 100.000 Ohms
- Individual Section Quantity [AFBH]
- 1
- Input Impedance Rating [ANSL]
- 100.000 Ohms
- Longest Horizontal Distance Between Mounting Centers [AFDS]
- 1.750 Inches Nominal
- Longest Vertical Distance Between Mounting Centers [AFDV]
- 4.000 Inches Nominal
- Material And Location [ANNQ]
- Aluminum Body
- Pulse Rise Time Rating [CCDX]
- 250.0 Nanoseconds
- Section Delay Time [CCDQ]
- 6.400 Microseconds Nominal Single Section
- Shaft Diameter [ABWV]
- 0.250 Inches Nominal
- Shaft Length [ABXF]
- 0.500 Inches Nominal
- Shaft Style [AEDX]

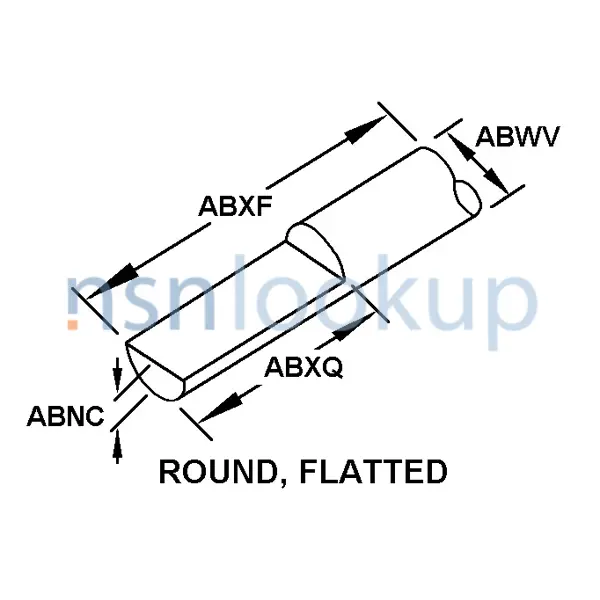

- Round, Flatted
- Signal Delay Method [BZWM]
- Lumped Constant
- Slot Length [ABGD]
- 0.250 Inches Nominal
- Slotted Hole Width [CDQK]
- 0.196 Inches Nominal
- Overall Length [ABHP]
- 4.500 Inches Nominal
- Surface Treatment And Location [ANNR]
- Enamel, Gray Body
- Terminal Type And Quantity [CCFF]
- 2 Coaxial Receptacle And 2 Wire Hook
