5999-01-020-6709
Electronic Shielding Gasket
5999010206709 010206709 06-0204-1248 1219-556 51-00236A 51-00236
A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE. View more Electronic Shielding Gasket
August 2023
4
Marketplace 5999-01-020-6709
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-020-6709 2+ Documents (More...)
(Identification) 1/2 NSN 5999-01-020-6709 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5999-01-020-6709 RQST Updated Every Day 5999-01-020-6709 RQST NE Related
-4010 Flange To Hose Straight Adapter 016064010 https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-020-6709
Electronic Shielding Gasket 5999010206709 Upgrade your Account Upgrade 5999-01-020-6709Electronic
Restrictions 5999-01-020-6709
5999-01-020-6709 is a Electronic Shielding Gasket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5999-01-020-6709
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-020-6709
- National Security Agency (DGX1)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- DTX1
- Supplementary Receivers:
- TX
Approved Sources 5999-01-020-6709
- Part Number
- Manufacturer
- Status
- 1219-556
- Manufacturer
- 72314 - Bae Systems Information And (Active)
- Primary Buy
- Primary Buy
- 06-0204-1248
- 18565 - Parker-Hannifin Corporation (Active)
- Secondary Buy
- Secondary Buy
- 1219-556
- 18565 - Parker-Hannifin Corporation (Active)
- Secondary Buy
- Secondary Buy
- 51-00236A
- 07700 - Technical Wire Products, Llc (Active)
- Secondary Buy
- Secondary Buy
- 06-0204-1248
- 12881 - Metal Textiles Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1219-556
- 12881 - Metal Textiles Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 51-00236
- 07700 - Technical Wire Products, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5999-01-020-6709
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Aperture Length [ADUF]
- 11.830 Inches Minimum And 11.850 Inches Maximum
- Aperture Width [ADUE]
- 4.054 Inches Minimum And 4.070 Inches Maximum
- Cross Section Outside Diameter [ADVL]
- 0.157 Inches Minimum And 0.225 Inches Maximum

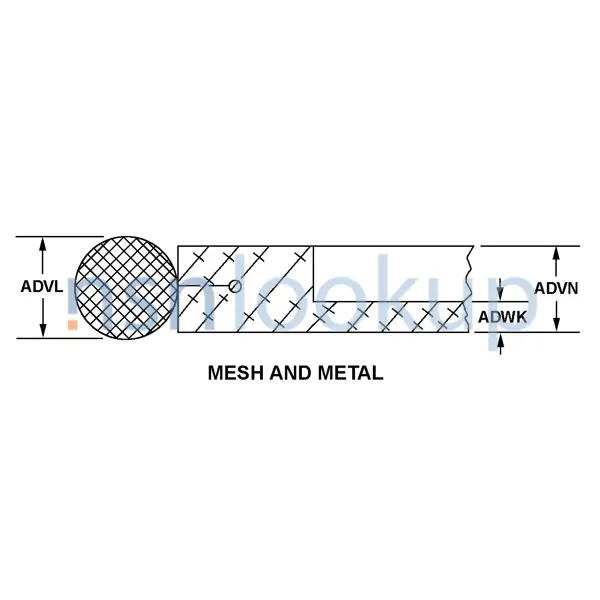

- Cross-Sectional Shape Style [AAGR]
- Mesh And Metal
- Cross-Sectional Height [ADVN]
- 0.125 Inches Nominal
- Environmental Protection Material Location [CTNJ]
- Around Rf Shielding Gasket Aperture
- Material [MATT]
- Aluminum Alloy 6063 Emi/Rfi Conductor And Steel Emi/Rfi Conductor
- Material [MATT]
- Rubber Silicone Class Q Environmental Seal
- Minor Height [ADWK]
- 0.125 Inches Nominal
- Inside Corner Radius [ADPQ]
- 0.060 Inches Maximum
- Material Document And Classification [MDCL]
- Ams-3195 Assn Std Single Material Response Environmental Seal
- Overall Length [ABHP]
- 13.210 Inches Minimum And 13.230 Inches Maximum
- Overall Width [ABMK]
- 5.430 Inches Minimum And 5.450 Inches Maximum
- Style Designator [STYL]
- Non-Circular
- Surface Treatment [SFTT]
- Tin Emi/Rfi Conductor And Copper Emi/Rfi Conductor And Anodize Emi/Rfi Conductor
DLA Procurement Analysis 5999-01-020-6709
Management Data 5999-01-020-6709
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5999-01-020-6709
Freight Information 5999-01-020-6709
5999-01-020-6709 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062800. A Sub NMFC of X. It has a NMFC Description of RADIO/TV RECEIVING SET CHASSIS ETC. 5999-01-020-6709 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5999-01-020-6709 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5999-01-020-6709 is not classified as a special type of cargo when transported by water. 5999-01-020-6709 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5999-01-020-6709
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- ASTM-D4727, Fiberboard used as a Stiffener on Both Sides of Item
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5999-01-020-6709 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
