5999-01-017-8434
Delay Line
5999010178434 010178434 707076-1 1555
An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY. View more Delay Line
May 2023
13
Marketplace 5999-01-017-8434
Request a Quotation from participating marketplace vendors
Related Documents 5999-01-017-8434 3+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Global Test Supply 1555 Fluke 1555
Details... 1555 DELAY LINE 8 EA NS Request Quotation Updated Every Day 5999-01-017-8434 RQST NE Related
Delay Line 5999010178434 010178434,707076-1 Upgrade for $1 a day Upgrade your Account Upgrade 5999
-01-017-8434Delay Line5999010178434 010178434 707076 www.nsnlookup.com /fsg-59/fsc-5999/us 5999-01-017
Restrictions 5999-01-017-8434
IUID Required
5999-01-017-8434 is a Delay Line that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-01-017-8434
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-01-017-8434
- US Navy (N2H4)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
- Poland (WP01)
- Effective Date:
- 1 Sep 2003
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Sep 1993
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5999-01-017-8434
- Part Number
- Manufacturer
- Status
- 1555
- Manufacturer
- 11869 - St Olektron Corp (Obsolete)
- Original Design
- Original Design
- 707076-1
- 49956 - Raytheon Company (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5999-01-017-8434
- Characteristic
- Specifications
- FIIG
- Specifications
- A32100
- Attenuation In Decibels [BHTH]
- 33.000

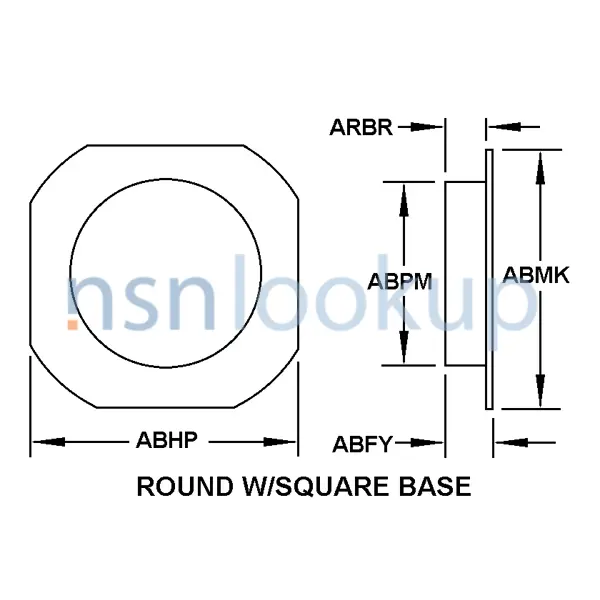

- Body Style [AAQL]
- Round W/Square Base
- Delay Time Variation Method [CCDN]
- Variable
- Frequency Rating [ACZB]
- 32.000 Megahertz Nominal
- Mounting Provision Arrangement Style [BBBW]
- Four Position Circular
- Operating Temp Range [AFGA]
- -0.0/+70.0 Deg Celsius
- Output Impedance Rating [ANSR]
- 50.000 Ohms
- Input Impedance Rating [ANSL]
- 50.000 Ohms
- Signal Delay Method [BZWM]
- Surface Acoustical Wave
- Overall Depth [ABFY]
- 1.500 Inches Nominal
- Overall Length [ABHP]
