5999-00-982-2840
Light-Switch Assembly
5999009822840 009822840 XP3LB7S2GT62-1
An electrical device consisting of a Switch (1) and two or more lights, or two or more switches and two or more lights, mounted on a common mounting. The lights are not intended for illumination but are present for the purpose of indication. Each item may be separable and capable of functioning individually, or the items may be fabricated into a common inseparable body, incapable of functioning individually. It may include wall plate or box cover and it may be complete with box. Excludes push, pull, push-pull, and toggle switches with a lamp mounted integrally in the actuator. View more Light-Switch Assembly
January 2023
8
Marketplace 5999-00-982-2840
Request a Quotation from participating marketplace vendors
Related Documents 5999-00-982-2840 1+ Documents (More...)
5999-00-982-2840 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-00-982-2840
/fsg-59/fsc-5999/us 5999-00-982-2840 Every Day 5999-00-982-2840 RQST NE Related Documents 5999-00-982
Restrictions 5999-00-982-2840
5999-00-982-2840 is a Light-Switch Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5999-00-982-2840
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-00-982-2840
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5999-00-982-2840
- Part Number
- Manufacturer
- Status
- XP3LB7S2GT62-1
- Manufacturer
- 78011 - Midland-Ross Corp (Replaced)
- Original Design
- Original Design
- XP3LB7S2GT62-1
- 56501 - Abb Installation Products Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5999-00-982-2840
- Characteristic
- Specifications
- FIIG
- Specifications
- A507C0
- Component Type And Quantity [CXCK]
- 2 Switch And 1 Light
- Current Rating [AXNP]
- 2.0 Amperes Nominal
- Environmental Protection [ADZC]
- Explosion Proof
- Features Provided [CBBL]
- Transformer And Box Cover And Threaded Entrance

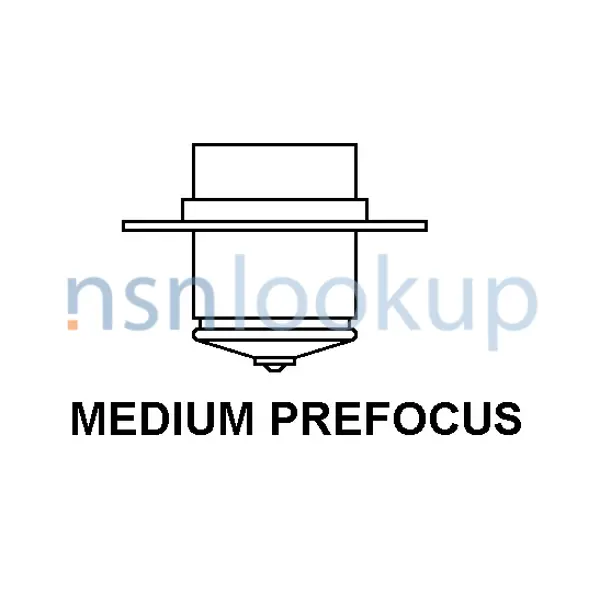

- Lamp Base Style [AEWV]
- Medium Prefocus
- Lamp Bulb Size Designator [AEWU]
- S-6
- Lens Color [AEXD]
- Green
- Special Features [FEAT]
- Assy O/A H:7.500 In. Nom; Switch Current Type:Ac; Lamp:Included; Assy O/A W:3.500 In. Nom; Assy O/A L:7.250 In. Nom; Mntg Config:Panel Mtd By Three 1 Inch Thd. Bushings Spaced 1.750 In. C To C In Line; Primary Voltage Rating:220 V Nom; Secondary Voltage Rating:110 V Nom; Luminous Actuator:Not Included; Threaded Entrance Qty:1; Thread Location:Internal; Contact Arrangement:Two-St,Double Break,Normally Open,Ref Dwg Group 217; Face Cover Type:Box Cover; Opening Thread Size:1-11-1/2; Material:Aluminum Cast
- Voltage Rating [AMSE]
- 220.0 Volts Nominal
- Surface Treatment [SFTT]
- Anodize
- Switch Type [AEEA]
- Push
Similar Supply Items to 5999-00-982-2840
Freight Information 5999-00-982-2840
5999-00-982-2840 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5999-00-982-2840 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5999-00-982-2840 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5999-00-982-2840 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5999-00-982-2840 is not classified as a special type of cargo when transported by water. 5999-00-982-2840 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
