5999-00-642-1248
Light-Switch Assembly
5999006421248 006421248 6981ED173-145
An electrical device consisting of a Switch (1) and two or more lights, or two or more switches and two or more lights, mounted on a common mounting. The lights are not intended for illumination but are present for the purpose of indication. Each item may be separable and capable of functioning individually, or the items may be fabricated into a common inseparable body, incapable of functioning individually. It may include wall plate or box cover and it may be complete with box. Excludes push, pull, push-pull, and toggle switches with a lamp mounted integrally in the actuator. View more Light-Switch Assembly
May 2023
6
Marketplace 5999-00-642-1248
Request a Quotation from participating marketplace vendors
Related Documents 5999-00-642-1248 1+ Documents (More...)
United States (US) 4. 5999-00-642-1248 Marketplace Restrictions Approved Sources Datasheet Management
LIGHT-SWITCH ASSEMBLY 4 EA NS Request Quotation Updated Every Day 5999-00-642-1248 RQST NE Updated
Restrictions 5999-00-642-1248
5999-00-642-1248 is a Light-Switch Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5999-00-642-1248
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-00-642-1248
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5999-00-642-1248
- Part Number
- Manufacturer
- Status
- 6981ED173-145
- Manufacturer
- 27192 - Drs Naval Power Systems Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5999-00-642-1248
- Characteristic
- Specifications
- FIIG
- Specifications
- A507C0
- Environmental Protection [ADZC]
- Spray Tight
- Features Provided [CBBL]
- Transformer And Threaded Entrance And Box And Box Cover
- Material [MATT]
- Plastic

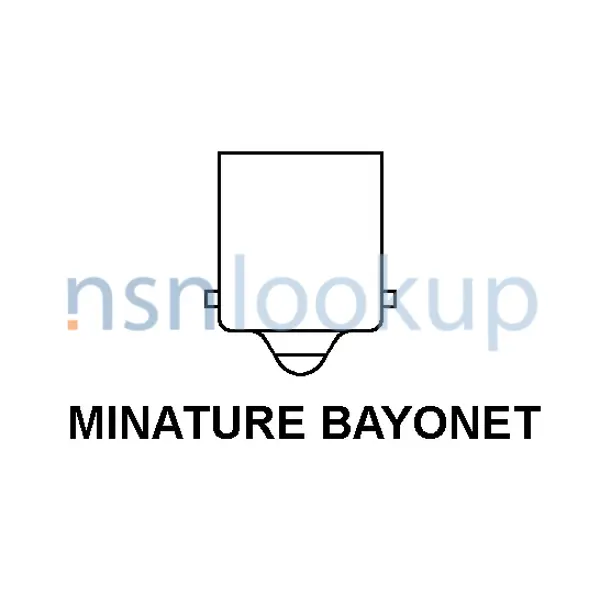

- Lamp Base Style [AEWV]
- Miniature Bayonet
- Lamp Bulb Size Designator [AEWU]
- G-4-1/2
- Lens Color [AEXD]
- Red
- Special Features [FEAT]
- Inclosure Matl:Plastic;Assy O/A H:4.625 In. Nom.;Switch Type:Rotary 1St Variation,Push 2Nd Variation;Switch Current Rating In Amps:15.0 1St Variation,10.0 2Nd Variation;Switch Current Type:1St & 2Nd Variation Ac;Lamp:Included;Assy O/A W:4.750 In. Nom.;Assy O/A L:10.750 In. Nom.;Mnts By (4) 13/32 In. Dia. Mtg Holes On 3-1/2 In. By 9-7/8 In. Mtg Cntrs;Voltage Rating:440.0 V Nom. 1St & 2Nd Variation;Individual Switch Qty:1 For 1St & 2Nd Variation;Light Qty:1;Primary Voltage Rating:440.0 V Nom.;Secondary Voltage Rating:4.0 V Nom.;Luminous Actuator:Not Included;Threaded Interest Qty:2;Thread Location:Internal;Contact Arrangement:1St Variation,2 Circuit,Double Break,3Position,1 Position Momentary, 2Nd Variation Spdt,Double Break,Normally Open;Opening Thread Size:1 In. Ips 11-1/2;Special Markings:Stop-On-Start,Emergency Run
Weapon Systems (WSDC) 5999-00-642-1248
DLA Procurement Analysis 5999-00-642-1248
Management Data 5999-00-642-1248
Navy
- Cognizance:
- 3B
Similar Supply Items to 5999-00-642-1248
Freight Information 5999-00-642-1248
5999-00-642-1248 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5999-00-642-1248 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5999-00-642-1248 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5999-00-642-1248 is not classified as a special type of cargo when transported by water. 5999-00-642-1248 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5999-00-642-1248
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5999-00-642-1248 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
