5999-00-535-9395
Delay Line
5999005359395 005359395 8519041 GA53051
An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY. View more Delay Line
January 2023
14
Marketplace 5999-00-535-9395
Request a Quotation from participating marketplace vendors
Related Documents 5999-00-535-9395 5+ Documents (More...)
https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-00-535-9395 Delay Line 5999005359395 005359395,8519041
Electrolytic Fixed Capacitor 5910123056578 8519041 Delay Line 5999005359395 005359395,8519041 Fault
https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-00-535-9395 Delay Line 5999005359395 005359395,8519041
Electrolytic Fixed Capacitor 5910123056578 8519041 Delay Line 5999005359395 005359395,8519041 Fault
Delay Line 5999005359395 005359395,8519041 /fsg-59/fsc-5999/us 5999-00-535-9395 Delay Line 5999005359395
005359395,8519041 Restrictions 5935-01-642-1324 www.nsnlookup.com /fsg-75/fsc-7530/ca 7530-21-911-0240 8519041
Documents ( More... ) https//www.nsnlookup.com /fsg https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-00-535-9395
Delay Line 5999005359395 005359395,8519041 https//www.nsnlookup.com /fsg-66/ 013906631 8519041
/fsg-66/fsc-6625/us
https//www.nsnlookup.com /fsg-66/fsc-6625/us 6625-01-390-6631 Fault Locating Indicator 6625013906631 8519041
Indicator6625013906631 0139066318519041-2MI61S-28-S816 Electrolytic Fixed Capacitor 5910123056578 8519041
Restrictions 5999-00-535-9395
5999-00-535-9395 is a Delay Line that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5999-00-535-9395
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-00-535-9395
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5999-00-535-9395
- Part Number
- Manufacturer
- Status
- 8519041
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- GA53051
- 64959 - American Telephone And Telegraph Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- GA53051
- 70408 - At And T Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5999-00-535-9395
- Characteristic
- Specifications
- FIIG
- Specifications
- A32100
- Body Diameter [ABPM]
- 1.141 Inches Nominal
- Body Length [ADAQ]
- 3.625 Inches Nominal

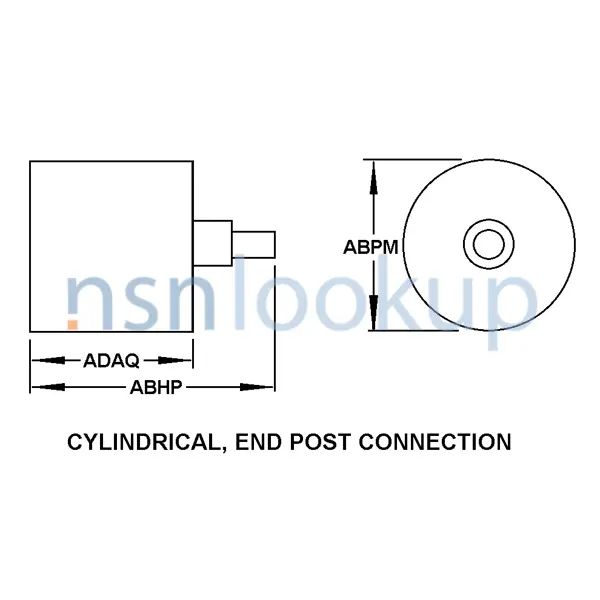

- Body Style [AAQL]
- Cylindrical, End Post Connection
- Mounting Facility Quantity [AKPV]
- 2
- Mounting Facility [AZGM]
- Threaded Stud
- Mounting Provision Arrangement Style [BBBW]
- 2 Position In-Line
- Operating Temp Range [AFGA]
- -50.0/+65.0 Deg Celsius
- Output Impedance Rating [ANSR]
- 200.000 Ohms
- Individual Section Quantity [AFBH]
- 1
- Longest Horizontal Distance Between Mounting Centers [AFDS]
- 0.562 Inches Nominal
- Pulse Rise Time Rating [CCDX]
- 0.025 Microseconds
- Section Delay Time [CCDQ]
- 5.500 Microseconds Maximum Single Section
- Signal Delay Method [BZWM]
- Lumped Constant
- Overall Length [ABHP]
- 4.000 Inches Nominal
- Stud Length [AGXF]
- 0.375 Inches Nominal
- Terminal Type And Quantity [CCFF]
- 3 Solder Stud
- Thread Size And Series/Type Designator [THDS]
- 0.164-32 Unc
Similar Supply Items to 5999-00-535-9395
Freight Information 5999-00-535-9395
5999-00-535-9395 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5999-00-535-9395 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5999-00-535-9395 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5999-00-535-9395 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5999-00-535-9395 is not classified as a special type of cargo when transported by water. 5999-00-535-9395 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
