5999-00-497-9266
Electronic Shielding Gasket
5999004979266 004979266 003622
A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE. View more Electronic Shielding Gasket
May 2023
2
Marketplace 5999-00-497-9266
Request a Quotation from participating marketplace vendors
Related Documents 5999-00-497-9266 5+ Documents (More...)
Updated Every Day 5999-00-497-9266 RQST NE Related Documents 5999-00-497-9266 5+ Documents ( More...
) https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-00-497-9266 Electronic Shielding Gasket 5999004979266
day Upgrade your Account Upgrade 5999-00-497-9266Electronic Shielding Gasket5999004979266 004979266
Battery6140251520977 2515209776273201098 (003622 Electronic Shielding Gasket 5999004979266 day Upgrade
JavaScript in your web browser . 6140-25-152-0977Storage Battery6140251520977 2515209776273201098 (003622
JavaScript in your web browser . 6140-25-152-0977Storage Battery6140251520977 2515209776273201098 (003622
Id-Diacell-B 6640221239377 221239377,003622 003622 https//www.nsnlookup.com Id-Diacell-B 6640221239377
221239377,003622 003622 Id-Diacell-B 6640221239377 221239377,003622 003622 https//www.nsnlookup.com
www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-300-9839 Radio Frequency Transmission Line Switch 037-003622
Electronic Shielding Gasket 5999004979266 221239377,003622 003622 https//www.nsnlookup.com https
Restrictions 5999-00-497-9266
5999-00-497-9266 is a Electronic Shielding Gasket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-00-497-9266
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-00-497-9266
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5999-00-497-9266
- Part Number
- Manufacturer
- Status
- 003622
- Manufacturer
- 19156 - Moog Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5999-00-497-9266
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Material [MATT]
- Aluminum Emi/Rfi Conductor
- Material [MATT]
- Rubber Silicone Class Q Environmental Seal
- Environmental Protection Material Location [CTNJ]
- Throughout Rf Shielding Gasket
- Cross-Sectional Shape Style [AAGR]
- Linked Wire And Composition
- Cross-Sectional Height [ADVN]
- 0.020 Inches Nominal

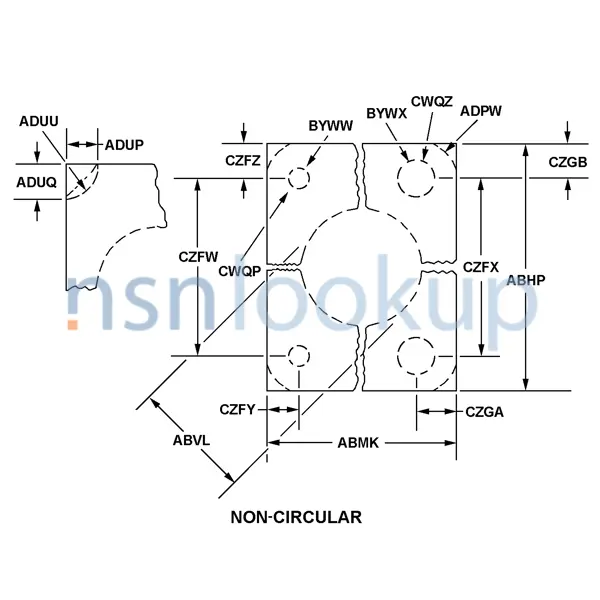

- Style Designator [STYL]
- Non-Circular Square W/O Aperature
- Overall Length [ABHP]
- 7.250 Inches Nominal
- Overall Width [ABMK]
- 2.375 Inches Nominal
- Smallest Bolt Hole Diameter [BYWW]
- 0.140 Inches Nominal
- Center To Center Distance Between Smallest Bolt Holes [CZFW]
- 3.942 Inches Nominal
- Center To Center Distance Between Largest Bolt Holes [CZFX]
- 3.000 Inches Nominal
- Outside Edge To Smallest Bolt Hole Center Distance Along Width [CZFY]
- 1.000 Inches Nominal
- Outside Edge To Largest Bolt Hole Center Distance Along Length [CZGB]
- 0.312 Inches Nominal
- Smallest Bolt Hole Quantity [CWQP]
- 6
DLA Procurement Analysis 5999-00-497-9266
Management Data 5999-00-497-9266
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5999-00-497-9266
Freight Information 5999-00-497-9266
5999-00-497-9266 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062800. A Sub NMFC of X. It has a NMFC Description of RADIO/TV RECEIVING SET CHASSIS ETC. 5999-00-497-9266 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5999-00-497-9266 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5999-00-497-9266 is not classified as a special type of cargo when transported by water. 5999-00-497-9266 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5999-00-497-9266
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- A-A-1507, Chipboard Sheet used as a Stiffener on Both Sides of Item
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5999-00-497-9266 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
