5999-00-494-6127
Electronic Shielding Gasket
5999004946127 004946127 03-0101-6661 51-90033 136635-0004 136635-4
A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE. View more Electronic Shielding Gasket
May 2023
19
Marketplace 5999-00-494-6127
Request a Quotation from participating marketplace vendors
Related Documents 5999-00-494-6127 5+ Documents (More...)
RQST NE Updated Every Day 5999-00-494-6127 RQST Updated Every Day 5999-00-494-6127 RQST NE Related Documents
5999-00-494-6127 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-00-494-6127
Updated Every Day 5999-00-482-2189 RQST Updated Every https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-00-494-6127
Electronic Shielding Gasket 5999004946127 Upgrade your Account Upgrade 5999-00-494-6127Electronic
Electronic Shielding Gasket 5999004946127 Upgrade 5999-00-494-6127Electronic Shielding Gasket5999004946127
004946127 03-0101-6661 51-90033 136635 Battery Cell 6140145406745 145406745,136635 www.nsnlookup.com
Electronic Shielding Gasket 5999004946127 Upgrade 5999-00-494-6127Electronic Shielding Gasket5999004946127
004946127 03-0101-6661 51-90033 136635 -0004 136635-4 A shaped metallic item designed to increase the
Electronic Shielding Gasket 5999004946127 6140145406745 145406745,136635 www.nsnlookup.com https
Restrictions 5999-00-494-6127
5999-00-494-6127 is a Electronic Shielding Gasket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5999-00-494-6127
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-00-494-6127
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Poland (WP01)
- Effective Date:
- 1 Apr 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 11 Jun 1992
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5999-00-494-6127
- Part Number
- Manufacturer
- Status
- 51-90033
- Manufacturer
- 07700 - Technical Wire Products, Llc (Active)
- Primary Buy
- Primary Buy
- 136635-4
- 06481 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 136635-0004
- 06481 - Northrop Grumman Systems Corporation (Active)
- Vendor Drawing
- Vendor Drawing
- 03-0101-6661
- 12881 - Metal Textiles Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5999-00-494-6127
- Characteristic
- Specifications
- FIIG
- Specifications
- A032A0
- Aperture Length [ADUF]
- 9.956 Inches Nominal
- Aperture Width [ADUE]
- 9.706 Inches Nominal
- Bolt Hole Quantity [AECS]
- 14
- Cross Section Outside Diameter [ADVL]
- 0.180 Inches Nominal

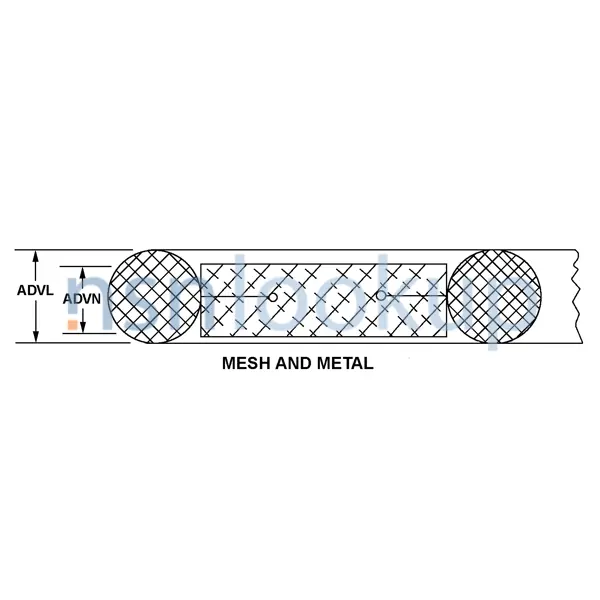

- Cross-Sectional Shape Style [AAGR]
- Mesh And Metal
- Cross-Sectional Height [ADVN]
- 0.093 Inches Nominal
- Environmental Protection Material Location [CTNJ]
- Around Rf Shielding Gasket Outer Perimeter
- Material Document And Classification [MDCL]
- Mil-R-6130,Type 2,Grade A,Condition Medium Mil Spec Single Material Response Environmental Seal
- Material Document And Classification [MDCL]
- Qq-A-200/9,Alloy 6063-T42 Fed Spec 1St Material Response Emi/Rfi Conductor And Qq-A-281,Class A Fed Spec 2Nd Material Response Emi/Rfi Conductor
- Material [MATT]
- Aluminum Alloy 6063 Emi/Rfi Conductor And Nickel Alloy 400 Emi/Rfi Conductor
- Material [MATT]
- Rubber Chloroprene Class Cr Environmental Seal
- Outside Corner Radius [ADPW]
- 0.120 Inches Nominal
- Largest Bolt Hole Diameter [BYWX]
- 0.281 Inches Nominal
- Smallest Bolt Hole Diameter [BYWW]
- 0.127 Inches Minimum And 0.133 Inches Maximum
- Overall Length [ABHP]
- 11.190 Inches Nominal
- Overall Width [ABMK]
- 10.940 Inches Nominal
- Surface Treatment Document And Classification [STDC]
- Mil-C-5541,Class 2 Mil Spec 1St Treatment Response Emi/Rfi Conductor And Mil-P-8585 Mil Spec 2Nd Treatment Response Emi/Rfi Conductor And Mil-E-15090,Type 2,Class 2 Mil Spec 3Rd Treatment Response Emi/Rfi Conductor
- Surface Treatment [SFTT]
- Chromate Emi/Rfi Conductor And Chromate Zinc Emi/Rfi Conductor And Enamel Emi/Rfi Conductor
DLA Procurement Analysis 5999-00-494-6127
Management Data 5999-00-494-6127
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5999-00-494-6127
Freight Information 5999-00-494-6127
5999-00-494-6127 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062800. A Sub NMFC of X. It has a NMFC Description of RADIO/TV RECEIVING SET CHASSIS ETC. 5999-00-494-6127 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5999-00-494-6127 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5999-00-494-6127 is not classified as a special type of cargo when transported by water. 5999-00-494-6127 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5999-00-494-6127
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- ASTM-D4727, Fiberboard used as a Stiffener on Both Sides of Item
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
