5999-00-487-3267

Delay Line

5999004873267 004873267 7648779P003 4272-3 0153ACM-1

An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY. View more Delay Line

Managed by United States

NSN Created on 19 Jun 1974

Data Last Changed
May 2023

NATO Update Count
8

NATO Data Quality

AAQL Style 1 for 5999-00-487-3267 1/2 — NSN 5999-00-487-3267 (Identification) 1/2

BBBW Style 1 for 5999-00-487-3267 2/2 — NSN 5999-00-487-3267 (Identification) 2/2

Marketplace 5999-00-487-3267

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

7648779P003 DELAY LINE 10 EA NS

Updated Every Day

5999-00-487-3267 RQST NE

Restrictions 5999-00-487-3267

5999-00-487-3267 is a Delay Line that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

Import and Export 5999-00-487-3267

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5999-00-487-3267

US Navy (N9BN)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ND
Supplementary Collaborators:: HD; AMC 1 AMSC H IMC Z IMCACTY HD

Brazil (YA01)
Effective Date:: 1 Jan 2002

Turkey (ZW01)
Effective Date:: 1 Dec 2005

Approved Sources 5999-00-487-3267

Part Number
Manufacturer
Status
7648779P003: 03538 - Lockheed Martin Corporation (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
4272-3: 03947 - Micro Networks Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
0153ACM-1: 02090 - American Electric Fusion Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5

Datasheet 5999-00-487-3267

Characteristic
Specifications
FIIG: A32100
Adjustment Device Drive Type [ACZU]: Slotted Screw
Adjustment Device Quantity [ACZT]: 1
Body Depth [ARBR]: 0.781 Inches Nominal
Body Length [ADAQ]: 5.500 Inches Nominal
Body Style [AAQL]: Rectangular
Body Width [ADAT]: 4.100 Inches Nominal
Delay Time Variation Method [CCDN]: Variable
Frequency Rating [ACZB]: 648.000 Kilohertz Nominal
Mounting Facility [AZGM]: Threaded Insert
Mounting Facility Quantity [AKPV]: 4

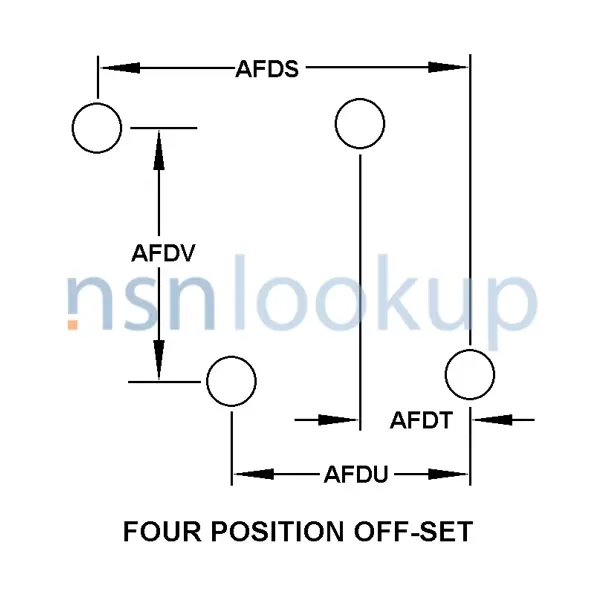

Mounting Provision Arrangement Style [BBBW]: Four Position Off-Set
Operating Temp Range [AFGA]: +15.1/+45.0 Deg Celsius
Individual Section Quantity [AFBH]: 1
Intermediate Horizontal Distance Between Mounting Centers [AFDU]: 4.500 Inches Maximum
Longest Horizontal Distance Between Mounting Centers [AFDS]: 4.500 Inches Maximum
Longest Vertical Distance Between Mounting Centers [AFDV]: 3.000 Inches Nominal
Material And Location [ANNQ]: Aluminum Alloy, Qq-A-225/5, Alloy 2017, T4 Case
Pulse Rise Time Rating [CCDX]: 40.0 Nanoseconds
Section Delay Time [CCDQ]: 1.350 Milliseconds Nominal Single Section
Shortest Horizontal Distance Between Mounting Centers [AFDT]: 1.100 Inches Nominal
Signal Delay Method [BZWM]: Lumped Constant
Voltage Rating [AMSE]: 60.000 Millivolts Nominal
Surface Treatment And Location [ANNR]: Anodized, Mil-A-8625, Type 3, Class 1 Case
Terminal Type And Quantity [CCFF]: 5 Turret
Thread Class [AAJD]: 2B
Thread Pitch Diameters [AAJE]: +0.1440/+0.1480 Inches
Thread Size And Series/Type Designator [THDS]: 0.164-32 Unc

Subscribe
View Data

DLA Procurement Analysis 5999-00-487-3267

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5999-00-487-3267

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Department of the Navy (DN); EA; Subscribe; 1
Mar 2020: Department of the Navy (DN); EA; Subscribe; 1

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

NATO Stock Numbers Related to 5999-00-487-3267

5999-25-132-3140 5999-17-042-3514 1285-12-178-7047 5999-21-800-4364 5840-12-154-9839 5999-99-746-8199 5999-12-150-0928 5999-15-108-0488 5999-99-122-8952 5999-21-873-9064 5999-21-874-5658 5999-01-239-1202 5999-01-220-6306 5999-01-524-8514 5999-15-056-4154 5840-99-900-1352 5999-00-299-1207 5999-01-047-2526

Freight Information 5999-00-487-3267

5999-00-487-3267 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5999-00-487-3267 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5999-00-487-3267 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5999-00-487-3267 is not classified as a special type of cargo when transported by water. 5999-00-487-3267 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5999-00-487-3267

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"; 85 to 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; --; --; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: Any Suitable Fiber Box

Contracting Technical Data File (CTDF) 5999-00-487-3267 October 2021
