5999-00-204-8355
Electrical Clip
5999002048355 002048355 650 143-130 551368
A clip designed to electrically connect items and components. Its primary function is to make a quick and/or temporary electrical connection. Includes alligator and crocodile test clips, battery clips, contact clips, electron tube clips, resistor clips, or the like. For electron tube grid and plate cap clips with wire leads attached, see LEAD, ELECTRICAL. Excludes CLAMP, ELECTRICAL; CLIP, SPRING TENSION; and FUSEHOLDER (as modified). View more Electrical Clip
May 2023
27
Marketplace 5999-00-204-8355
Request a Quotation from participating marketplace vendors
Related Documents 5999-00-204-8355 5+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Global Test Supply 650 Greenlee 650
160 EA NS Request Quotation Updated Every Day 5999-00-204-8355 RQST NE Updated Every Day 5999-00-204
721-3595 Radio Frequency Transformer 5950007213595 Radio Frequency Coil 5950009387335009387335 SM-D-551368
Electrical Clip 5999002048355 002048355,650 -204-8355 RQST NE Updated Every Day 5999-00-204 https
Documents ( More... https//www.nsnlookup.com /fsg-59/fsc-5950/us 5950-00-721-3595 007213595AC7031SM-D-551368
https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-00-204-8355 Electrical Clip 5999002048355 002048355,650
Photographic Film 6750014291730014291730 AC7031 SM-D-551368 Photographic Film 6750014291730014291730
https//www.nsnlookup.com /fsg-59/fsc-5999/us 5999-00-204-8355 Electrical Clip 5999002048355 002048355,650
Restrictions 5999-00-204-8355
5999-00-204-8355 is a Electrical Clip that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5999-00-204-8355
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-00-204-8355
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Supplementary Collaborators:
- HD
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- United States of America (ZZ)
Approved Sources 5999-00-204-8355
- Part Number
- Manufacturer
- Status
- 650
- Manufacturer
- 81312 - Winchester Interconnect Corporation (Active)
- Primary Buy
- Primary Buy
- 143-130
- 17671 - Televisonet, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 551368
- 77068 - Allied-Signal Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5999-00-204-8355
- Characteristic
- Specifications
- FIIG
- Specifications
- A222A0

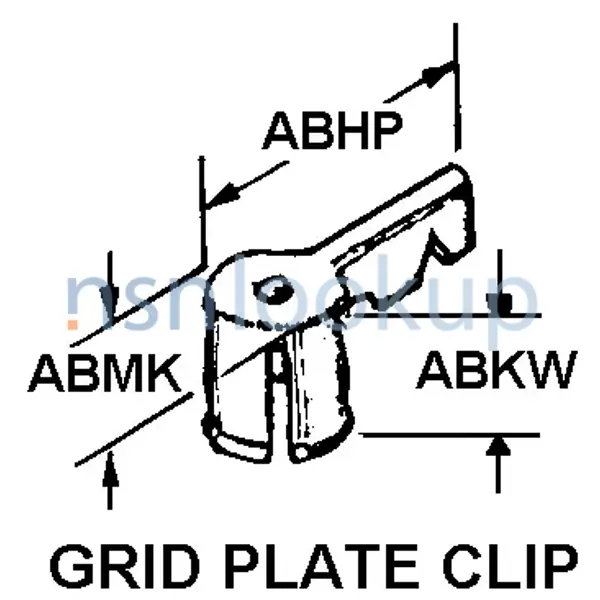

- Style Designator [STYL]
- Grid Plate Clip
- Overall Length [ABHP]
- 1.675 Inches Nominal
- Overall Height [ABKW]
- 0.500 Inches Nominal
- Material [MATT]
- Copper Alloy Body
- Material Document And Classification [MDCL]
- Qq-C-533 Fed Spec Single Material Response Body
- Surface Treatment [SFTT]
- Gold Body
- Terminal Type And Quantity [TTQY]
- 1 Tab, Solder Lug Axially At One End
- Mounting Method [AXGY]
- Force Fit
- Hole Accommodation Diameter [AKRM]
- 0.625 Inches Nominal
- Precious Material [PRMT]
- Gold
- Precious Material And Weight [PMWT]
- 0.005 Gold Grains, Troy
- Precious Material And Location [PMLC]
- Body Surface Gold
DLA Procurement Analysis 5999-00-204-8355
Management Data 5999-00-204-8355
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5999-00-204-8355
Freight Information 5999-00-204-8355
5999-00-204-8355 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093490. A Sub NMFC of X. It has a NMFC Description of BOLT/NUT/SCREW/CLIPS/FASTENER/ETC. 5999-00-204-8355 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50270 which rates the freight between FCL and LCL. 5999-00-204-8355 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5999-00-204-8355 is not classified as a special type of cargo when transported by water. 5999-00-204-8355 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5999-00-204-8355 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
