5999-00-044-0485
Delay Line
5999000440485 000440485 477909-2
An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY. View more Delay Line
January 2023
7
Marketplace 5999-00-044-0485
Request a Quotation from participating marketplace vendors
Related Documents 5999-00-044-0485 2+ Documents (More...)
/fsc-5999/us 5999-00-044-0485 Delay Line 5999000440485 000440485,477909-2 (Identification) 1/2 NSN 5999
/fsc-5999/us 5999-00-044-0485 Delay Line 5999000440485 000440485,477909-2 (Identification) 1/2 NSN 5999
Delay Line 5999000440485 000440485,477909-2 000440485,477909-2 (Identification) 1/2 NSN 5999 https
Restrictions 5999-00-044-0485
5999-00-044-0485 is a Delay Line that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5999-00-044-0485
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-00-044-0485
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5999-00-044-0485
- Part Number
- Manufacturer
- Status
- 477909-2
- Manufacturer
- 96214 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5999-00-044-0485
- Characteristic
- Specifications
- FIIG
- Specifications
- A32100
- Attenuation In Decibels [BHTH]
- 3.000
- Body Depth [ARBR]
- 2.000 Inches Nominal
- Body Diameter [ABPM]
- 8.125 Inches Nominal
- Body Style [AAQL]
- Round W/Round Base
- Flange Diameter [ABKK]
- 8.250 Inches Nominal
- Frequency Bandwidth [APQL]
- 1500.0 Kilohertz Nominal
- Frequency Rating [ACZB]
- 20.000 Megahertz Nominal
- Fsc Application Data [ZZZV]
- Radar Nonairborne Except Fire Control And Guided Missile
- Mounting Facility Quantity [AKPV]
- 6
- Mounting Facility [AZGM]
- Threaded Hole
- Mounting Hole Circle Radius [ABUH]
- 3.500 Inches Nominal

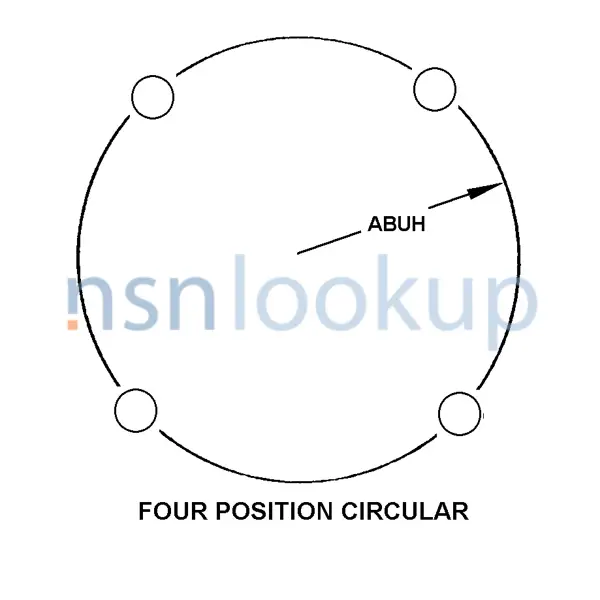

- Mounting Provision Arrangement Style [BBBW]
- Four Position Circular
- Operating Temp Range [AFGA]
- +0.0 To 50.0 Deg Celsius
- Output Impedance Rating [ANSR]
- 95.000 Ohms
- Overall Depth [ABFY]
- 2.500 Inches Nominal
- Individual Section Quantity [AFBH]
- 2
- Input Impedance Rating [ANSL]
- 95.000 Ohms
- Material And Location [ANNQ]
- Steel Case
- Section Delay Time [CCDQ]
- 481.500 Microseconds Nominal 1St Section
- Section Delay Time [CCDQ]
- 481.500 Microseconds Nominal 2Nd Section
- Signal Delay Method [BZWM]
- Inductance
- Surface Treatment And Location [ANNR]
- Enamel, Dull Gray, Metallic Case
- Terminal Type And Quantity [CCFF]
- 4 Coaxial Receptacle
- Thread Class [AAJD]
- 2B
- Thread Pitch Diameters [AAJE]
- +0.2500 To 0.2501 Inches
- Thread Size And Series/Type Designator [THDS]
- 0.164-32 Unc
