5999-00-020-0099
Delay Line
5999000200099 000200099 67A30C607
An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY. View more Delay Line
May 2023
5
Marketplace 5999-00-020-0099
Request a Quotation from participating marketplace vendors
Related Documents 5999-00-020-0099 5+ Documents (More...)
/fsg-30/fsc-3040/it
Restrictions 5999-00-020-0099
5999-00-020-0099 is a Delay Line that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5999-00-020-0099
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5999-00-020-0099
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
Approved Sources 5999-00-020-0099
- Part Number
- Manufacturer
- Status
- 67A30C607
- Manufacturer
- 30003 - Naval Air Systems Command Managed (Active)
- Primary Buy
- Primary Buy
- 67A30C607
- 92912 - Bel Fuse Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5999-00-020-0099
- Characteristic
- Specifications
- FIIG
- Specifications
- A32100
- Body Diameter [ABPM]
- 1.438 Inches Nominal
- Body Depth [ARBR]
- 0.688 Inches Nominal
- Body Inside Diameter [ADAS]
- 0.688 Inches Nominal

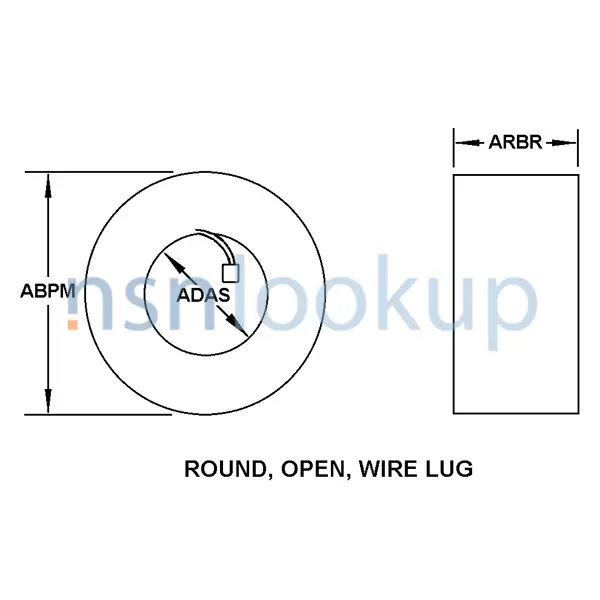

- Body Style [AAQL]
- Round, Open, Wire Lug
- Frequency Bandwidth [APQL]
- 61000.0 Kilohertz Nominal
- Fsc Application Data [ZZZV]
- Transponder Set,Identification
- Mounting Facility Quantity [AKPV]
- 3
- Mounting Facility [AZGM]
- Terminal
- Operating Temp Range [AFGA]
- -55.0/+125.0 Deg Celsius
- Individual Section Quantity [AFBH]
- 1
- Section Delay Time [CCDQ]
- 500.000 Nanoseconds Nominal Single Section
- Signal Delay Method [BZWM]
- Transmission Line
- Terminal Type And Quantity [CCFF]
- 3 Wire Leads
DLA Procurement Analysis 5999-00-020-0099
Management Data 5999-00-020-0099
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 5895
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 5895
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5999-00-020-0099
Freight Information 5999-00-020-0099
5999-00-020-0099 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061360. A Sub NMFC of X. It has a NMFC Description of COILS/YOKES FOCUS/DEFLECTION TV. 5999-00-020-0099 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34430 which rates the freight between FCL and LCL. 5999-00-020-0099 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5999-00-020-0099 is not classified as a special type of cargo when transported by water. 5999-00-020-0099 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5999-00-020-0099
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
