5998-01-335-9542
Electrical Card Holder
5998013359542 013359542 5033634-2
A device specifically designed to retain CIRCUIT CARD ASSEMBLY or PRINTED CIRCUIT BOARD in their installed position. Excludes, RETAINER-EJECTOR, ELECTRICAL CARD; and HOLDER, PRINTED CIRCUIT BOARD. View more Electrical Card Holder
May 2023
2
Marketplace 5998-01-335-9542
Request a Quotation from participating marketplace vendors
Related Documents 5998-01-335-9542 2+ Documents (More...)
-335-9542 RQST NE Updated Every Day 5998-01-335-9542 RQST Updated Every Day 5998-01-335-9542 RQST NE
/us 5998-01-335-9542 Electrical Card Holder 5998013359542 Quotation FedMall Updated Every 15 Minutes
Electrical Card Holder 5998013359542 a day Upgrade your Account Upgrade 5998-01-335-9542Electrical
Card Holder5998013359542 013359542 5033634 Subscribe to View Vendor Details... 5998-01-335-9542 HOLDER
Restrictions 5998-01-335-9542
5998-01-335-9542 is a Electrical Card Holder that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5998-01-335-9542
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5998-01-335-9542
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
Approved Sources 5998-01-335-9542
- Part Number
- Manufacturer
- Status
- 5033634-2
- Manufacturer
- 82577 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5998-01-335-9542
- Characteristic
- Specifications
- FIIG
- Specifications
- A03600

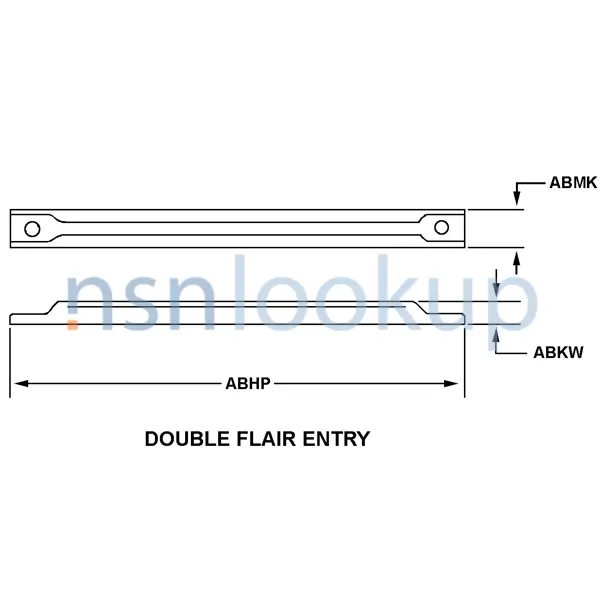

- Body Style [AAQL]
- Double Flair Entry
- Overall Length [ABHP]
- 2.320 Inches Nominal
- Overall Height [ABKW]
- 0.300 Inches Nominal
- Overall Width [ABMK]
- 0.340 Inches Nominal
- Material [MATT]
- Aluminum Alloy 6061
- Material Document And Classification [MDCL]
- Qq-A-225/8,Alloy 6061,Temper 6 Fed Spec Single Material Response
- Surface Treatment [SFTT]
- Nickel
- Surface Treatment Document And Classification [STDC]
- Qq-N-290,Class 2 Fed Spec Single Treatment Response
- Mounting Facility Type And Quantity [AXHR]
- 3 Threaded Hole Single Mounting Facility
- Thread Series Designator [THSD]
- Unc Single Mounting Facility
- Nominal Thread Size [CQJX]
- 0.112 Inches Single Mounting Facility
- Thread Class [AAJD]
- 2B Single Mounting Facility
DLA Procurement Analysis 5998-01-335-9542
Management Data 5998-01-335-9542
Similar Supply Items to 5998-01-335-9542
Freight Information 5998-01-335-9542
5998-01-335-9542 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061045. A Sub NMFC of Z. It has a NMFC Description of BOARDS PRINTED CIRCUIT ELEC. 5998-01-335-9542 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 5998-01-335-9542 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5998-01-335-9542 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5998-01-335-9542 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5998-01-335-9542
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5998-01-335-9542 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
