5998-01-225-1505
Electrical Card Retainer-Ejector
5998012251505 012251505 35-7BH-2-4-3 717801901-001 717801901
A device specifically designed to retain CIRCUIT CARD ASSEMBLY or PRINTED CIRCUIT BOARD in their installed position. Excludes, RETAINER-EJECTOR, ELECTRICAL CARD; and HOLDER, PRINTED CIRCUIT BOARD. View more Electrical Card Holder
June 2023
8
Marketplace 5998-01-225-1505
Request a Quotation from participating marketplace vendors
Related Documents 5998-01-225-1505 2+ Documents (More...)
RQST NE Updated Every Day 5998-01-225-1505 RQST Updated Every Day 5998-01-225-1505 RQST NE Related
Documents 5998-01-225-1505 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5998/us 5998
Documents 5998-01-207-1820 2+ Documents ( More https//www.nsnlookup.com /fsg-59/fsc-5998/us 5998-01-225-1505
Electrical Card Retainer-Ejector 012251505 https//www.nsnlookup.com /fsg-59/fsc-5998/us 5998 https
Restrictions 5998-01-225-1505
5998-01-225-1505 is a Electrical Card Retainer-Ejector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5998-01-225-1505
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5998-01-225-1505
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- Australia (ZA01)
- Effective Date:
- 1 Apr 2003
- Greece (ZU01)
- Effective Date:
- 1 Aug 2005
Approved Sources 5998-01-225-1505
- Part Number
- Manufacturer
- Status
- 35-7BH-2-4-3
- Manufacturer
- 61081 - Schroff Inc (Active)
- Primary Buy
- Primary Buy
- 717801901-001
- 04939 - Lockheed Martin Corporation (Active)
- Secondary Buy
- Secondary Buy
- 717801901
- 04939 - Lockheed Martin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5998-01-225-1505
- Characteristic
- Specifications
- FIIG
- Specifications
- A03600

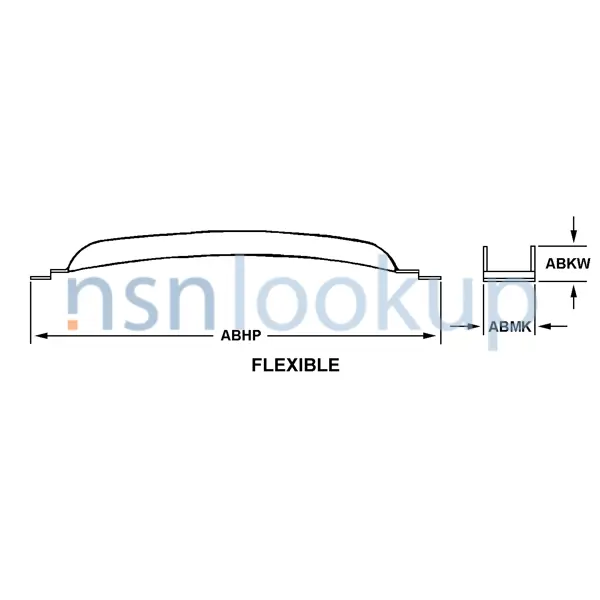

- Body Style [AAQL]
- Flexible
- Material Document And Classification [MDCL]
- Qq-C-533 Fed Spec Single Material Response
- Material [MATT]
- Copper Alloy 172
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole Single Mounting Facility
- Overall Height [ABKW]
- 0.125 Inches Nominal
- Overall Length [ABHP]
- 2.000 Inches Nominal
- Overall Width [ABMK]
- 0.250 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.066 Inches Minimum Single Mounting Facility And 0.070 Inches Maximum Single Mounting Facility
- Surface Treatment Document And Classification [STDC]
- Qq-P-416A Fed Spec Single Treatment Response
- Surface Treatment [SFTT]
- Cadmium
Weapon Systems (WSDC) 5998-01-225-1505
DLA Procurement Analysis 5998-01-225-1505
Management Data 5998-01-225-1505
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 5999
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 5999
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5998-01-225-1505
Freight Information 5998-01-225-1505
5998-01-225-1505 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061045. A Sub NMFC of Z. It has a NMFC Description of BOARDS PRINTED CIRCUIT ELEC. 5998-01-225-1505 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 5998-01-225-1505 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5998-01-225-1505 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5998-01-225-1505 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5998-01-225-1505
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5998-01-225-1505 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
