5995-00-870-6235
Electrical Lead
5995008706235 008706235 10897993 2510008706235
A definite length of one-conductor electrical wire, wire braid, or other conductive material, except cable or cord, one or both ends of which are processed or terminated. The lead may be of any size or shape, insulated or uninsulated. See also LEAD, TEST and BUS CONDUCTOR. Excludes LEAD, STORAGE BATTERY; LEAD, IGNITION, ENGINE, and items having attached switches, lampholders, suppressors, resistors, and the like. View more Electrical Lead
May 2023
35
Marketplace 5995-00-870-6235
Request a Quotation from participating marketplace vendors
Related Documents 5995-00-870-6235 5+ Documents (More...)

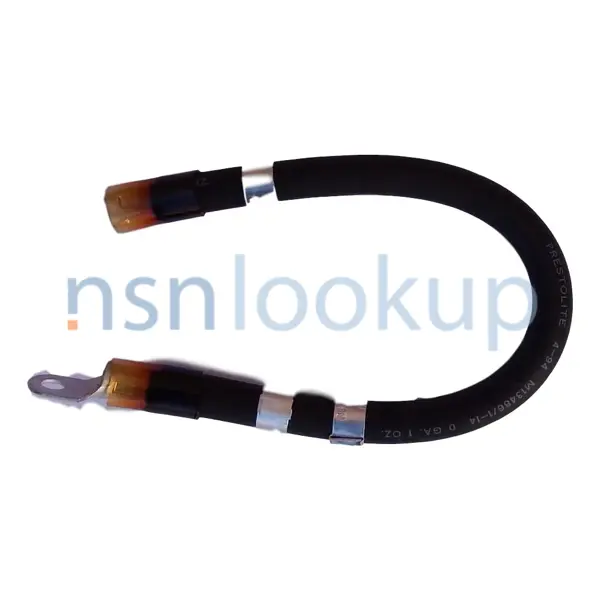

Photo 1/2 NSN 5995-00-870-6235 (Identification) 2/2 - - 1.
United States (US) 4. 5995-00-870-6235 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 5995-00-870-6235
5995-00-870-6235 is a Electrical Lead that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5995-00-870-6235
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5995-00-870-6235
- US Army (A918)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A178
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC41)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2004
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Israel (YD01)
- Effective Date:
- 1 Sep 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 1997
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jun 2006
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5995-00-870-6235
- Part Number
- Manufacturer
- Status
- 10897993
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 2510008706235
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5995-00-870-6235
- Characteristic
- Specifications
- FIIG
- Specifications
- A077A0
- Conductor Form [CXCW]
- Stranded Single Conductor
- Material [MATT]
- Copper Core Conductor Single Conductor
- Material [MATT]
- Rubber Synthetic 1St Position Primary Insulation Single Conductor
- Material [MATT]
- Cotton 2Nd Position Braid, Non-Metallic Single Conductor
- Material [MATT]
- Rubber Chloroprene Class Cr 3Rd Position Sheath Single Conductor
- Material Document And Classification [MDCL]
- Qq-W-343,Soft Fed Std All Material Responses Core Conductor Single Conductor
- Round Conductor Size [CXDC]
- 0 Awg Single Conductor
- Strand Quantity Per Conductor [BLNZ]
- 1033 Single Conductor
- Strand Awg Size Per Conductor [CXDG]
- 30 Single Conductor
- Cross-Sectional Shape Style [AAGR]
- Round
- Cross Section Outside Diameter [ADVL]
- 0.324 Inches Nominal
- Termination Type [AKRZ]
- Lug Terminal W/Mounting Hole Both Ends Single Conductor
- Terminal Lug Aperture Size [CXFM]
- 0.665 Inches 1St End Single Conductor
- Terminal Lug Aperture Size [CXFM]
- 0.665 Inches 2Nd End Single Conductor
- Terminal Commercial And Government Entity Code [CXGN]
- 96906 Both Ends Single Conductor
- Lead Overall Length [AXBQ]
- 18.876 Inches Nominal
- Special Features [FEAT]
- G3 Marker Bands,2 Insulators
Weapon Systems (WSDC) 5995-00-870-6235
DLA Procurement Analysis 5995-00-870-6235
Management Data 5995-00-870-6235
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 2590
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2590
- X
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5995-00-870-6235
Freight Information 5995-00-870-6235
5995-00-870-6235 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062360. A Sub NMFC of X. It has a NMFC Description of LEADS/LEAD WIRES ELEC ARTICLE ETC. 5995-00-870-6235 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34890 which rates the freight between FCL and LCL. 5995-00-870-6235 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 743 for ocean manifesting and military sealift. 5995-00-870-6235 is not classified as a special type of cargo when transported by water. 5995-00-870-6235 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5995-00-870-6235
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 18.8" H x -- W x -- L
- --
- --
- Physical Protection
- Any Suitable Process
- 18.8" H x -- W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 5995-00-870-6235 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- R
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
