5995-00-488-8868
Electrical Cord Assembly
5995004888868 004888868 2BAMG72 11727738
A definite length of CORD, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to another item. It is generally used with telephone and communication equipment, such as headsets, category cable and switchboard patch cable. See also CABLE ASSEMBLY, (as modified and LEAD (as modified.) View more Electrical Cord Assembly
January 2023
7
Marketplace 5995-00-488-8868
Request a Quotation from participating marketplace vendors
Related Documents 5995-00-488-8868 1+ Documents (More...)
/fsg-59/fsc-5995/us
RQST NE Updated Every Day 5995-00-488-8868 RQST NE Updated Every Day 5995-00-488-8868 RQST Updated Every
/fsg-59/fsc-5995/us 5995-00-488-8868 Electrical Cord Assembly 5995004888868 2BAMG7211727738 A definite
Restrictions 5995-00-488-8868
5995-00-488-8868 is a Electrical Cord Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5995-00-488-8868
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5995-00-488-8868
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5995-00-488-8868
- Part Number
- Manufacturer
- Status
- 2BAMG72
- Manufacturer
- 4U744 - Fluke Electronics Corp (Active)
- Primary Buy
- Primary Buy
- 2BAMG72
- 05276 - Fluke Electronics Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 11727738
- 19200 - Combat Capabilities Development (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5995-00-488-8868
- Characteristic
- Specifications
- FIIG
- Specifications
- A077A0
- End Item Identification [AGAV]
- An/Tpm-22 Radar
- Conductor Arrangement And Quantity [CXDQ]
- 1 Twisted Pair
- Conductor Form [CXCW]
- Stranded All Conductors
- Cross Section Outside Diameter [ADVL]
- 0.430 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Round
- Conductor Quantity [AMQN]
- 2
- Round Conductor Size [CXDC]
- 18 Awg All Conductors
- Overall Length [AAJU]
- 6.680 Feet
- Strand Awg Size Per Conductor [CXDG]
- 36 All Conductors
- Strand Quantity Per Conductor [BLNZ]
- 65 All Conductors

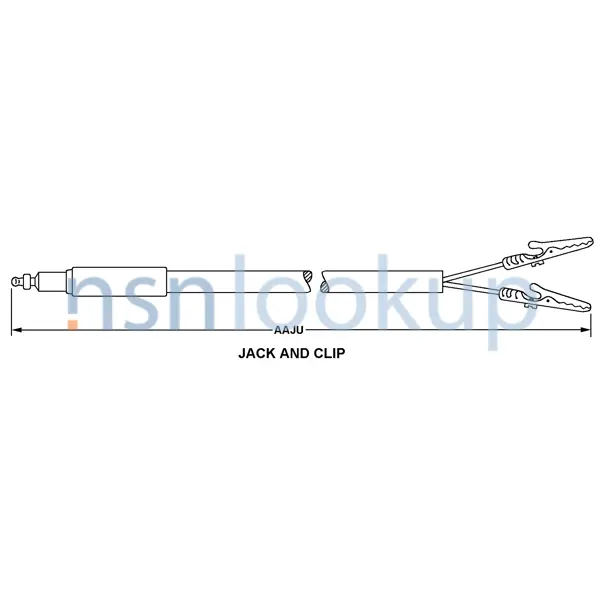

- Style Designator [STYL]
- Jack And Clip
- Termination Type [AKRZ]
- Clip Terminal 2Nd End All Conductors
- Termination Type [AKRZ]
- Plug Telephone 1St End All Conductors
Similar Supply Items to 5995-00-488-8868
Freight Information 5995-00-488-8868
5995-00-488-8868 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061130. A Sub NMFC of X. It has a NMFC Description of CABLE ASSEMBLY. 5995-00-488-8868 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34350 which rates the freight between FCL and LCL. 5995-00-488-8868 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5995-00-488-8868 is not classified as a special type of cargo when transported by water. 5995-00-488-8868 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5995-00-488-8868
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
