5990-01-107-8682
Electrical Transolver
5990011078682 011078682 CM41005009 145730

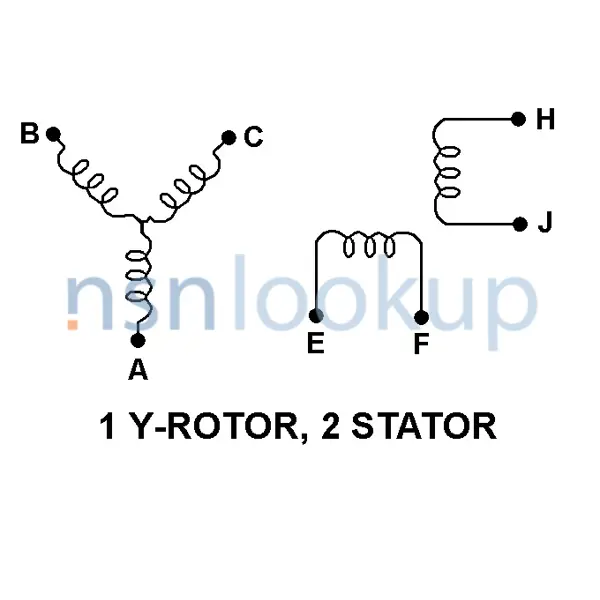

An item consisting of a rotor and a stator inductively coupled. It has wye connected and quadrature windings, either of which can be stator or the rotor and serve as the Primary for input voltages. The output voltages are trigonometric functions of the input voltages and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified). Excludes RESOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers. View more Electrical Transolver
November 2023
7
Marketplace 5990-01-107-8682
Request a Quotation from participating marketplace vendors
Related Documents 5990-01-107-8682 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5990-01-107-8682 RQST NE Updated Every Day 5990-01-107-8682 RQST
Updated Every Day 5990-01-107-8682 RQST NE Related Documents 5990-01-107-8682 5+ Documents ( More...
Electrical Transolver 5990011078682 011078682 Documents 5990-01-107-8682 5+ Documents ( More...
184-9365 5990-00-136-9609 5990-00-135-5561 5990-14-437-1070 5990-14-437-1122 5990-00-471-4962 5990-01-107-8682
Electrical Transolver 5990011078682 011078682 5990-14-437-1122 5990-00-471-4962 5990-01-107-8682
184-9365 5990-00-136-9609 5990-00-135-5561 5990-14-437-1070 5990-14-437-1122 5990-00-471-4962 5990-01-107-8682
Electrical Transolver 5990011078682 011078682 5990-14-437-1122 5990-00-471-4962 5990-01-107-8682
184-9365 5990-00-136-9609 5990-00-135-5561 5990-14-437-1070 5990-14-437-1122 5990-00-471-4962 5990-01-107-8682
Electrical Transolver 5990011078682 011078682 5990-01-107-8682 184-9365 5990-00-136-9609 5990-00
-135-5561 5990-14-437-1070 5990-14-437-1122 5990-00-471-4962 59/fsc-5990/us 5990-01-107-8682 Electrical
Restrictions 5990-01-107-8682
5990-01-107-8682 is a Electrical Transolver that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5990-01-107-8682
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5990-01-107-8682
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
Approved Sources 5990-01-107-8682
- Part Number
- Manufacturer
- Status
- CM41005009
- Manufacturer
- 88818 - Kearfott Corporation (Active)
- Primary Buy
- Primary Buy
- CM41005009
- 05088 - Kearfott Corp (Active)
- Secondary Buy
- Secondary Buy
- 145730
- 35351 - Ge Aviation Systems Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5990-01-107-8682
- Characteristic
- Specifications
- FIIG
- Specifications
- A07800
- Electrical Error Angular Range In Minutes [AJVL]
- -7.0/+7.0
- Actuator Friction Torque At Minus 55 Deg Celsius [AJVS]
- 3.0 Centimeter-Grams Maximum
- Actuator Friction Torque At Plus 25 Deg Celsius [AJVT]
- 9.0 Centimeter-Grams Maximum
- Body Material [AAFZ]
- Aluminum
- Body Size [AJSL]
- 8
- Body Style [AAQL]
- Standard Round A
- Flange Diameter [ABKK]
- 0.7500 Inches Maximum
- Flange Thickness [ABKU]
- 0.0620 Inches Nominal
- Fragility Factor [AFJN]
- Moderately Rugged
- Frequency In Hertz [AJSS]
- 800.0 Nominal
- Maximum Temp Rise [AHCG]
- 5.0 Deg Celsius
- Maximum Total Null Voltage Output In Millivolts Per Volt [AJVH]
- 30.00
- Mounting Surface To Terminal End Distance [AJWX]
- 1.2410 Inches Maximum
- Plus J Zro Reactance In Ohms [CQXQ]
- 270.00 Nominal
- Plus J Zrs Reactance In Ohms [CRKL]
- 27.00 Nominal
- Plus J Zso Reactance In Ohms [CRGZ]
- 342.00 Nominal
- Plus J Zss Reactance In Ohms [CSFG]
- 37.00 Nominal
- Rotor Dc Resistance In Ohms [AJTS]
- 61.00 Nominal
- Rotor Input Current Rating [AJST]
- 43.0 Milliamperes Maximum
- Rotor Input Electrical Power Rating [AJSV]
- 120.0 Allqjaa3.500 Microwatts
- Rotor Input Voltage Rating In Volts [AJSR]
- 11.8 Nominal
- Shaft End Play Determining Weight [CWYF]
- 8.0 Ounces
- Shaft End Play [AJWH]
- 0.0003 Inches Minimum And 0.0015 Inches Maximum
- Shaft Diameter [ABWV]
- 0.0900 Inches Maximum Single Shaft
- Shaft Maximum Radial Play [AJWG]
- 0.0008 Inches
- Shaft Maximum Runout [AJXB]
- 0.0010 Inches
- Shaft Length [ABXF]
- 0.5000 Inches Maximum Single Shaft
- Shaft Radial Play Determining Weight [CWXK]
- 4.0 Ounces
- Shaft Radial Play Test Point [AJWE]
- 0.250 Inches Maximum
- Shaft Slot Depth [CQZS]
- 0.0350 Inches Maximum Single Shaft
- Shaft Slot Width [CRHN]
- 0.0300 Inches Maximum Single Shaft
- Shaft Type [CRSJ]
- Round, Slotted Single Shaft
- Overall Length [ABHP]
- 1.7460 Inches Maximum
- Pilot Diameter [AAVL]
- 0.5000 Inches Maximum
- Pilot Length [AJWQ]
- 0.0430 Nominal Inches
- Phase Shift Angle In Deg [AJVF]
- 10.500 Input To Output Nominal
- Transformation Ratio [CSJY]
- 1.022 Stator To Rotor Nominal
- Schematic Diagram Designator [AEBZ]
- Unable To Decode
- Undercut Diameter [ABPA]
- 0.6910 Inches Maximum
- Undercut Width [ABPC]
- 0.0570 Inches Minimum
- Zrs Resistance In Ohms [AJTA]
- 81.00 Nominal
- Zso Resistance In Ohms [AJSY]
- 82.00 Nominal
- Zss Resistance In Ohms [AJTC]
- 101.00 Nominal
- Zro Resistance In Ohms [AJSW]
- 72.00 Nominal
- Stator Dc Resistance In Ohms [AJTT]
- 49.50 Nominal
- Terminal Location [CQTM]
- Rear
- Terminal Type And Quantity [TTQY]
- 7 Wire Lead
Weapon Systems (WSDC) 5990-01-107-8682
DLA Procurement Analysis 5990-01-107-8682
- Last Stock Position:
- 8 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5990-01-107-8682
Similar Supply Items to 5990-01-107-8682
Freight Information 5990-01-107-8682
5990-01-107-8682 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of Z. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI. 5990-01-107-8682 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 5990-01-107-8682 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 5990-01-107-8682 is not classified as a special type of cargo when transported by water. 5990-01-107-8682 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
