5990-01-106-3786
Electrical Resolver
5990011063786 011063786 583R421H02 CR90908015 U-221193 CR90908016 BZC-11-QP-12N/F064
An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers. View more Electrical Resolver
Managed by United States
NSN Created on 16 Jan 1981
Data Last Changed
May 2023
May 2023
NATO Update Count
16
16
NATO Data Quality
Marketplace 5990-01-106-3786
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5990-01-106-3786 5+ Documents (More...)
583R421H02 CR90908015 U-221193 CR90908016 BZC-11-QP-12N/F064 An item consisting of a rotor and a stator
RQST NE Updated Every Day 5990-01-106-3786 RQST Updated Every Day 5990-01-106-3786 RQST NE Related Documents
5990-01-106-3786 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-01-106-3786
RQST NE Updated Every Day 5990-01-106-3786 RQST Updated Every Day 5990-01-106-3786 RQST NE Related Documents
5990-01-106-3786 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-01-106-3786
https//www.nsnlookup.com
/fsg-34/fsc-3455/uk
/fsg-34/fsc-3455/uk
3455-99-138-8746 Hole Saw Blade 3455991388746 991388746
NumberManufacturerStatusBS9365 F064 https/ https//www.nsnlookup.com https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-01-106-3786
Electrical Resolver 5990011063786 011063786 3786Electrical Resolver5990011063786 011063786 583R421H02
CR90908015 U-221193 CR90908016 BZC-11-QP-12N/F064 3786 Electrical Resolver 5990011063786011063786 583R421H02CR90908015U
Electrical Resolver 5990011063786 011063786 3786Electrical Resolver5990011063786 011063786 583R421H02
CR90908015 U-221193 CR90908016 BZC-11-QP-12N/F064 3786 Electrical Resolver 5990011063786011063786 583R421H02CR90908015U
Assembly5998010346286 010346286174221193-401 174-221193 https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-01-106-3786
Electrical Resolver 5990011063786 011063786 Account Upgrade 5990-01-106-3786Electrical Resolver5990011063786
011063786 583R421H02 CR90908015 U-221193 Carrying Handl Stud 7490009241502009241502 Assembly5998010346286
Electrical Resolver 5990011063786 011063786 Account Upgrade 5990-01-106-3786Electrical Resolver5990011063786
011063786 583R421H02 CR90908015 U-221193 Carrying Handl Stud 7490009241502009241502 Assembly5998010346286
7490-00-924-1502 Carrying Handl Stud 7490009241502 https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-01-106-3786
Electrical Resolver 5990011063786 011063786 Account Upgrade 5990-01-106-3786Electrical Resolver5990011063786
011063786 583R421H02 CR90908015 U-221193 1502 Carrying Handl Stud 7490009241502 009241502 Assembly5998010346286
Electrical Resolver 5990011063786 011063786 Account Upgrade 5990-01-106-3786Electrical Resolver5990011063786
011063786 583R421H02 CR90908015 U-221193 1502 Carrying Handl Stud 7490009241502 009241502 Assembly5998010346286
Current Motor 6105013521848 https//www.nsnlookup.com https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-01-106-3786
Electrical Resolver 5990011063786 011063786 Deflector Assembly 2810002132133 002132133 1502Carrying
Electrical Resolver 5990011063786 011063786 Deflector Assembly 2810002132133 002132133 1502Carrying
Restrictions 5990-01-106-3786
5990-01-106-3786 is a Electrical Resolver that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5990-01-106-3786
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5990-01-106-3786
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- Poland (WP01)
- Effective Date:
- 1 Mar 2007
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5990-01-106-3786
- Part Number
- Manufacturer
- Status
- 583R421H02
- Manufacturer
- 97942 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- CR90908015
- 88818 - Kearfott Corporation (Active)
- Secondary Buy
- Secondary Buy
- U-221193
- 82686 - Transicoil Llc (Active)
- Secondary Buy
- Secondary Buy
- CR90908016
- 05088 - Kearfott Corp (Active)
- Secondary Buy
- Secondary Buy
- BZC-11-QP-12N/F064
- 99932 - Moog Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5990-01-106-3786
- Characteristic
- Specifications
- FIIG
- Specifications
- A07800
- Electrical Error Angular Range In Minutes [AJVL]
- -10.0/+10.0
- Actuator Friction Torque At Minus 55 Deg Celsius [AJVS]
- 0.30 Inch-Ounces Maximum
- Actuator Friction Torque At Plus 25 Deg Celsius [AJVT]
- 0.10 Inch-Ounces Maximum
- Alignment Hole Bolt Circle Diameter [CTCW]
- 0.8120 Inches Nominal
- Alignment Hole Depth [CRSY]
- 0.1250 Inches Maximum
- Alignment Hole Quantity [AJVW]
- 4
- Body Material [AAFZ]
- Steel, Corrosion Resisting
- Body Size [AJSL]
- 11
- Body Style [AAQL]
- Standard Round C
- Flange Diameter [ABKK]
- 1.0620 Inches Maximum
- Flange Thickness [ABKU]
- 0.0930 Inches Nominal
- Fragility Factor [AFJN]
- Moderately Rugged
- Frequency In Hertz [AJSS]
- 400.0 Nominal
- Maximum Fundamental Null Voltage In Millivolts Per Volt [AJVG]
- 15.00 Input
- Maximum Temp Rise [AHCG]
- 5.0 Deg Fahrenheit
- Maximum Total Null Voltage Output In Millivolts Per Volt [AJVH]
- 20.00
- Mounting Surface To Terminal End Distance [AJWX]
- 2.0670 Inches Maximum
- Schematic Diagram Designator [AEBZ]

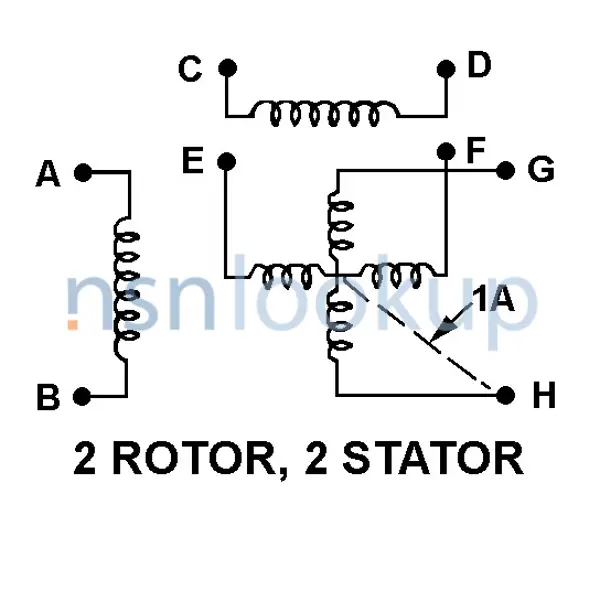

- 2 Rotor, 2 Stator
- Plus J Zro Reactance In Ohms [CQXQ]
- 7530.00 Nominal
- Plus J Zrs Reactance In Ohms [CRKL]
- 670.00 Nominal
- Plus J Zso Reactance In Ohms [CRGZ]
- 2050.00 Nominal
- Rotor Dc Resistance In Ohms [AJTS]
- 1200.00 Nominal
- Shaft End Play Determining Weight [CWYF]
- 16.0 Ounces
- Shaft End Play [AJWH]
- 0.0001 Inches Minimum And 0.0015 Inches Maximum
- Shaft Diameter [ABWV]
- 0.1200 Inches Maximum Single Shaft
- Shaft Maximum Radial Play [AJWG]
- 0.0010 Inches
- Shaft Maximum Runout [AJXB]
- 0.0008 Inches
- Shaft Length [ABXF]
- 0.5000 Inches Nominal Single Shaft
- Shaft Radial Play Determining Weight [CWXK]
- 8.0 Ounces
- Shaft Radial Play Test Point [AJWE]
- 0.125 Inches Maximum
- Shaft Slot Depth [CQZS]
- 0.0250 Inches Nominal Single Shaft
- Shaft Slot Width [CRHN]
- 0.0200 Inches Nominal Single Shaft
- Shaft Type [CRSJ]
- Round, Slotted Single Shaft
- Shoulder Diameter [AAVH]
- 1.0000 Inches Maximum
- Shoulder Length [AJWR]
- 0.0620 Inches Nominal
- Overall Length [ABHP]
- 2.6440 Inches Maximum
- Pilot Diameter [AAVL]
- 0.6250 Inches Maximum
- Pilot Length [AJWQ]
- 0.0620 Inches Nominal
- Phase Shift Angle In Deg [AJVF]
- 8.500 Output To Input Nominal
- Transformation Ratio Equality In Percent [AJTW]
- 0.25 Nominal
- Transformation Ratio [CSJY]
- 1.713 Rotor To Stator Nominal
- Undercut Diameter [ABPA]
- 0.9750 Inches Nominal
- Undercut Width [ABPC]
- 0.0620 Inches Nominal
- Zrs Resistance In Ohms [AJTA]
- 1790.00 Nominal
- Zso Resistance In Ohms [AJSY]
- 375.00 Nominal
- Zro Resistance In Ohms [AJSW]
- 1760.00 Nominal
- Stator Input Voltage Rating In Volts [AJSN]
- 11.8 Nominal
- Stator Dc Resistance In Ohms [AJTT]
- 170.00 Nominal
- Stator Input Current Rating [AJSP]
- 6.0 Milliamperes Nominal
- Stator Input Electrical Power Rating [AJSQ]
- 11.0 Milliwatts Nominal
- Terminal Designator And Schematic Position [AJWP]
- Connection R1 Position G And Connection R2 Position E And Connection R3 Position H And Connection R4 Position F And Connection S1 Position A And Connection S2 Position C And Connection S3 Position B And Connection S4 Position D
- Terminal Location [CQTM]
- Rear
- Terminal Type And Quantity [TTQY]
- 6 Screw
