5990-01-097-4721

Differential Receiver Synchro

5990010974721 010974721 11-PTR-9E

A synchro, the rotor of which is free to turn, which will assume a position in accordance with the sum or difference of the electrical angular information received from two transmitter synchros. Does not include variable resistors, goniometers, variable transformers, or items with dials. View more Differential Receiver Synchro

Managed by United States

NSN Created on 12 Jul 1980

Data Last Changed
June 2023

NATO Update Count
27

NATO Data Quality

AAQL Style A3 for 5990-01-097-4721 1/2 — NSN 5990-01-097-4721 (Identification) 1/2

AEBZ Style E6 for 5990-01-097-4721 2/2 — NSN 5990-01-097-4721 (Identification) 2/2

Marketplace 5990-01-097-4721

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

5990-01-097-4721 RQST NE

Restrictions 5990-01-097-4721

5990-01-097-4721 is a Differential Receiver Synchro that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5990-01-097-4721

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5990-01-097-4721

US Air Force (FXGX)
Effective Date:: 1 Jul 2005
Former MOE Rule:: FXTX; AMC 3 AMSC H IMC Z IMCACTY SX

US Navy (N9BN)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 3 AMSC H IMC Z IMCACTY GH

Poland (WP01)
Effective Date:: 1 Feb 2007

Canada (ZC01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Feb 2005

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 May 2008

Turkey (ZW01)
Effective Date:: 1 Dec 2005

Approved Sources 5990-01-097-4721

Part Number
Manufacturer
Status
11-PTR-9E: 4H618 - Moog Inc. (Active); Original Design; RNCC 3 RNVC 9 DAC 5
11-PTR-9E: 99932 - Moog Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3

Datasheet 5990-01-097-4721

Characteristic
Specifications
FIIG: A07800
Body Material [AAFZ]: Aluminum Or Steel, Stainless
Body Style [AAQL]: Standard Round C
Flange Diameter [ABKK]: 1.0610 Inches Minimum And 1.0620 Inches Maximum
Flange Thickness [ABKU]: 0.0880 Inches Minimum And 0.0980 Inches Maximum
Fragility Factor [AFJN]: Moderately Rugged
Frequency In Hertz [AJSS]: 60.0 Nominal
Body Size [AJSL]: 11
Mounting Surface To Terminal End Distance [AJWX]: 1.4000 Inches Maximum

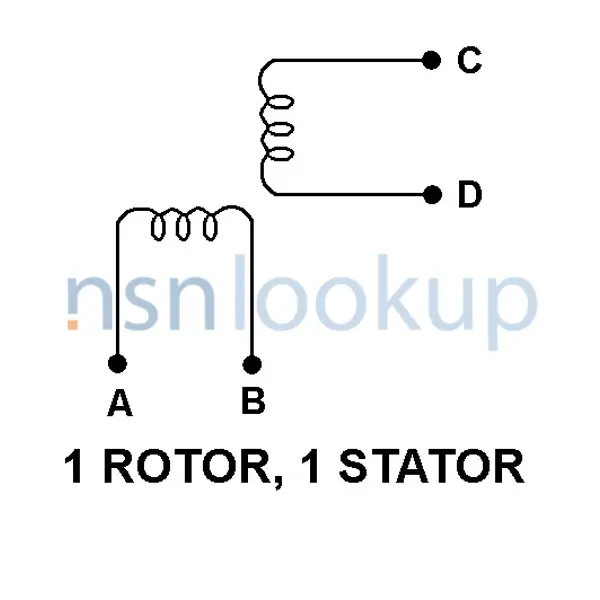

Schematic Diagram Designator [AEBZ]: 1 Rotor, 1 Stator
Receiver Error Angular Range In Minutes [AJVN]: -1.0/+1.0
Shaft End Play [AJWH]: 0.0020 Inches Minimum And 0.0050 Inches Maximum
Shaft Diameter [ABWV]: 0.1195 Inches Minimum Single Shaft And 0.1200 Inches Maximum Single Shaft
Shaft Maximum Radial Play [AJWG]: 0.0010 Inches
Shaft Maximum Runout [AJXB]: 0.0010 Inches
Shaft Length [ABXF]: 0.3750 Inches Nominal Single Shaft
Shaft Type [CRSJ]: Round Single Shaft
Shoulder Diameter [AAVH]: 0.9995 Inches Minimum And 1.0000 Inches Maximum
Shoulder Length [AJWR]: 0.0570 Nominal Mils And 0.0670 Nominal Centimeters
Overall Length [ABHP]: 1.8900 Inches Maximum
Pilot Diameter [AAVL]: 0.6245 Inches Minimum And 0.6250 Inches Maximum
Pilot Length [AJWQ]: 0.0570 Nominal Mils And 0.0670 Nominal Centimeters
Torque Gradient Per Angular Deg [AJVV]: 6200.0 Millimeter-Milligrams Nominal
Undercut Diameter [ABPA]: 0.9700 Inches Minimum And 0.9800 Inches Maximum
Undercut Width [ABPC]: 0.0450 Inches Minimum And 0.0550 Inches Maximum
Stator Input Voltage Rating In Volts [AJSN]: 10.0 Nominal
Stator Dc Resistance In Ohms [AJTT]: 71.00 Nominal
Stator Input Current Rating [AJSP]: 141.0 Milliamperes Nominal
Stator Input Electrical Power Rating [AJSQ]: 1.408 Watts Nominal
Terminal Location [CQTM]: Rear
Terminal Type And Quantity [TTQY]: 4 Wire Lead
