5990-01-087-6466
Electrical Resolver
5990010876466 010876466 163339-01
An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers. View more Electrical Resolver
May 2023
6
Marketplace 5990-01-087-6466
Request a Quotation from participating marketplace vendors
Related Documents 5990-01-087-6466 2+ Documents (More...)
Updated Every Day 5990-01-087-6466 RQST NE Related Documents 5990-01-087-6466 2+ Documents ( More...
Every Day 5990-01-087-6466 RQST NE Related Documents 5990-01-087-6466 2+ Documents ( More...
Electrical Resolver 5990010876466 010876466 $1 a day Upgrade your Account Upgrade 5990-01-087-6466Electrical
Resolver5990010876466 010876466 163339 Documents 5990-01-087-6466 2+ Documents ( More... https//www.nsnlookup.com
Restrictions 5990-01-087-6466
5990-01-087-6466 is a Electrical Resolver that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5990-01-087-6466
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5990-01-087-6466
- US Air Force (FGGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FGTX
Approved Sources 5990-01-087-6466
- Part Number
- Manufacturer
- Status
- 163339-01
- Manufacturer
- 35351 - Ge Aviation Systems Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5990-01-087-6466
- Characteristic
- Specifications
- FIIG
- Specifications
- A07800
- Actuator Friction Torque At Minus 55 Deg Celsius [AJVS]
- 16.0 Centimeter-Grams Nominal
- Actuator Friction Torque At Plus 25 Deg Celsius [AJVT]
- 4.0 Centimeter-Grams Nominal
- Body Material [AAFZ]
- Any Acceptable
- Body Size [AJSL]
- 11
- Body Style [AAQL]
- Standard Round C
- Flange Diameter [ABKK]
- 1.0610 Inches Minimum And 1.0620 Inches Maximum
- Flange Thickness [ABKU]
- 0.0930 Inches Nominal
- Fragility Factor [AFJN]
- Moderately Rugged
- Frequency In Hertz [AJSS]
- 1600.0 Nominal
- Maximum Fundamental Null Voltage In Millivolts Per Volt [AJVG]
- 80.00 Input
- Maximum Temp Rise [AHCG]
- 125.0 Deg Celsius
- Mounting Surface To Terminal End Distance [AJWX]
- 1.6000 Inches Maximum

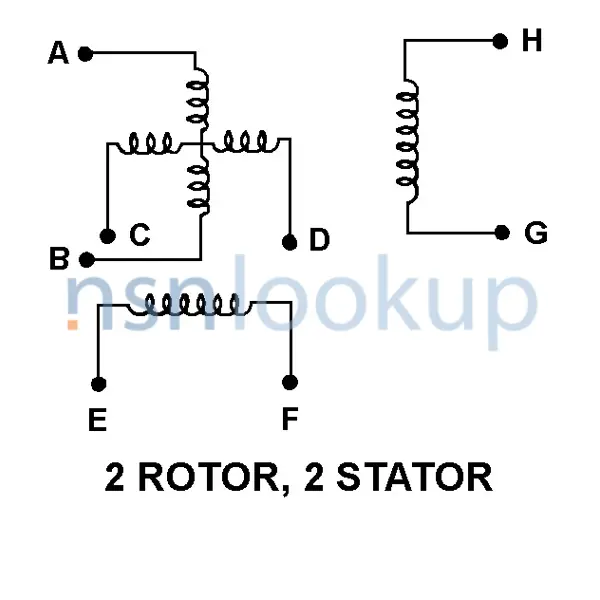

- Schematic Diagram Designator [AEBZ]
- 2 Rotor, 2 Stator
- Plus J Zro Reactance In Ohms [CQXQ]
- 1852.00 Nominal
- Plus J Zso Reactance In Ohms [CRGZ]
- 460.00 Nominal
- Plus J Zss Reactance In Ohms [CSFG]
- 4.50 Nominal
- Rotor Input Current Rating [AJST]
- 33.8 Milliamperes Maximum
- Rotor Input Voltage Rating In Volts [AJSR]
- 0.5 Minimum And 57.5 Maximum
- Shaft End Play Determining Weight [CWYF]
- 8.0 Ounces
- Shaft End Play [AJWH]
- 0.0003 Inches Minimum And 0.0015 Inches Maximum
- Shaft Diameter [ABWV]
- 0.1195 Inches Minimum Single Shaft And 0.1200 Inches Maximum Single Shaft
- Shaft Maximum Radial Play [AJWG]
- 0.0008 Inches
- Shaft Length [ABXF]
- 0.3600 Inches Minimum Single Shaft And 0.3900 Inches Maximum Single Shaft
- Shaft Radial Play Determining Weight [CWXK]
- 4.0 Ounces
- Shaft Radial Play Test Point [AJWE]
- 0.120 Inches Nominal
- Shaft Slot Depth [CQZS]
- 0.0220 Inches Minimum Single Shaft And 0.0320 Inches Maximum Single Shaft
- Shaft Slot Width [CRHN]
- 0.0220 Inches Minimum Single Shaft And 0.0320 Inches Maximum Single Shaft
- Shaft Type [CRSJ]
- Round, Slotted Single Shaft
- Shoulder Diameter [AAVH]
- 0.9800 Inches Maximum
- Shoulder Length [AJWR]
- 0.0590 Inches Minimum And 0.0650 Inches Maximum
- Overall Length [ABHP]
- 2.0550 Inches Maximum
- Pilot Diameter [AAVL]
- 0.6245 Inches Minimum And 0.6250 Inches Maximum
- Pilot Length [AJWQ]
- 0.0590 Inches Minimum And 0.0650 Inches Maximum
- Transformation Ratio Equality In Percent [AJTW]
- 0.5 Nominal
- Transformation Ratio [CSJY]
- 0.488 Rotor To Stator Nominal
- Undercut Diameter [ABPA]
- 0.9995 Inches Minimum And 1.0000 Inches Maximum
- Undercut Width [ABPC]
- 0.0450 Inches Minimum
- Zso Resistance In Ohms [AJSY]
- 112.00 Nominal
- Zss Resistance In Ohms [AJTC]
- 30.50 Nominal
- Zro Resistance In Ohms [AJSW]
- 405.00 Nominal
- Terminal Location [CQTM]
- Rear
- Terminal Type And Quantity [TTQY]
- 8 Wire Lead
DLA Procurement Analysis 5990-01-087-6466
Management Data 5990-01-087-6466
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- AY
- FIRE CONTROL AND BOMBING SYSTEMS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5990-01-087-6466
Freight Information 5990-01-087-6466
5990-01-087-6466 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 5990-01-087-6466 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5990-01-087-6466 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5990-01-087-6466 is not classified as a special type of cargo when transported by water. 5990-01-087-6466 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5990-01-087-6466
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5990-01-087-6466 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
