5990-01-025-7465
Electrical Resolver
5990010257465 010257465 976060-10 CR09624075 U217508 11RB24 573A
An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers. View more Electrical Resolver
Managed by United States
NSN Created on 8 Aug 1976
Data Last Changed
May 2023
May 2023
NATO Update Count
13
13
NATO Data Quality
Marketplace 5990-01-025-7465
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
11RB24 RESOLVER,ELECTRICAL 2 EA NS
976060-10 RESOLVER,ELECTRICAL 4 EA NS
U-217508 RESOLVER,ELECTRICAL 2 EA NS
FedMall
Updated Every 15 Minutes
Updated Every 15 Minutes 5990-01-025-7465 BUY NE FedMall
Updated Every Day 5990-01-025-7465 RQST NE
Updated Every Day 5990-01-025-7465 RQST
Updated Every Day 5990-01-025-7465 RQST NE
Related Documents 5990-01-025-7465 5+ Documents (More...)
976060-10 CR09624075 U217508 11RB24 573A An item consisting of a rotor and a stator inductively coupled
BUY NE FedMall Updated Every Day 5990-01-025-7465 RQST NE Updated Every Day 5990-01-025-7465 RQST Updated
Every Day 5990-01-025-7465 RQST NE Related Documents 5990-01-025-7465 5+ Documents ( More... ) https
BUY NE FedMall Updated Every Day 5990-01-025-7465 RQST NE Updated Every Day 5990-01-025-7465 RQST Updated
Every Day 5990-01-025-7465 RQST NE Related Documents 5990-01-025-7465 5+ Documents ( More... ) https
your Account Upgrade 6660-00-266-8499Photocell D Assembly6660002668499 002668499 K210A4457 9159B5-573A
/fsc-5999/fr 5999-14-336-2774 Electrical Contact Assembly 5999143362774 6920014325906014325906,ADU-573A
-136-3743 Plastic Dielectric Fixed Capacitor 001363743 6920-01-432-5906 6920014325906014325906,ADU-573A
/fsc-5999/fr 5999-14-336-2774 Electrical Contact Assembly 5999143362774 6920014325906014325906,ADU-573A
-136-3743 Plastic Dielectric Fixed Capacitor 001363743 6920-01-432-5906 6920014325906014325906,ADU-573A
Upgrade your Account Upgrade 5910-00-136-3743Plastic Dielectric Fixed Capacitor5910001363743 001363743 573A
enable JavaScript in your web browser . 5985-14-465-2495Antenna5985144652495 144652495 DXX66505 AN-573A
Electrical Resolver 5990010257465 010257465 Upgrade 5990-01-025-7465Electrical Resolver5990010257465
enable JavaScript in your web browser . 5985-14-465-2495Antenna5985144652495 144652495 DXX66505 AN-573A
Electrical Resolver 5990010257465 010257465 Upgrade 5990-01-025-7465Electrical Resolver5990010257465
enable JavaScript in your web browser . 6125-01-130-4139Motor-Generator6125011304139 011304139 PU-573A
//www.nsnlookup.com /fsg-61/fsc-6125/us 6125-01-130-4139 Motor-Generator 6125011304139011304139 PU-573A
00-170-8728 Electrical Switch Cover 5930001708728,43A Updated Every Day 6625-01-337-9572 Every Day 573A
//www.nsnlookup.com /fsg-61/fsc-6125/us 6125-01-130-4139 Motor-Generator 6125011304139011304139 PU-573A
00-170-8728 Electrical Switch Cover 5930001708728,43A Updated Every Day 6625-01-337-9572 Every Day 573A
enable JavaScript in your web browser . 5985-14-465-2495Antenna5985144652495 144652495 DXX66505 AN-573A
www.nsnlookup.com /fsg-59/fsc-5985/fr 5985-14-465-2495 Antenna 5985144652495144652495,DXX66505 DXX66505AN-573A
-5750 Robinet Lance Incen 4210143475750 143475750 Assembly6660002668499 002668499 K210A4457 9159B5-573A
www.nsnlookup.com /fsg-59/fsc-5985/fr 5985-14-465-2495 Antenna 5985144652495144652495,DXX66505 DXX66505AN-573A
-5750 Robinet Lance Incen 4210143475750 143475750 Assembly6660002668499 002668499 K210A4457 9159B5-573A
Restrictions 5990-01-025-7465
5990-01-025-7465 is a Electrical Resolver that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5990-01-025-7465
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5990-01-025-7465
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
Approved Sources 5990-01-025-7465
- Part Number
- Manufacturer
- Status
- 976060-10
- Manufacturer
- 82577 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- CR09624075
- SU241 - Kearfott Precisiones Generales De (Active)
- Secondary Buy
- Secondary Buy
- U217508
- 82686 - Transicoil Llc (Active)
- Secondary Buy
- Secondary Buy
- 11RB24
- 08719 - Ducommun Labarge Technologies, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 573A
- 63928 - Panex Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- CR09624075
- 09301 - Kearfott Corp Soma Forwarding Div (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5990-01-025-7465
- Characteristic
- Specifications
- FIIG
- Specifications
- A07800
- Electrical Error Angular Range In Minutes [AJVL]
- -3.0/+3.0
- Actuator Friction Torque At Minus 55 Deg Celsius [AJVS]
- 30.0 Centimeter-Grams Maximum
- Actuator Friction Torque At Plus 25 Deg Celsius [AJVT]
- 15.0 Centimeter-Grams Maximum
- Alignment Hole Bolt Circle Diameter [CTCW]
- 0.8120 Inches Nominal
- Alignment Hole Depth [CRSY]
- 0.1250 Inches Minimum
- Alignment Hole Quantity [AJVW]
- 4
- Body Diameter [ABPM]
- 1.0590 Nominal Mils And 1.0670 Nominal Centimeters
- Body Material [AAFZ]
- Steel, Corrosion Resisting
- Body Size [AJSL]
- 11
- Body Style [AAQL]

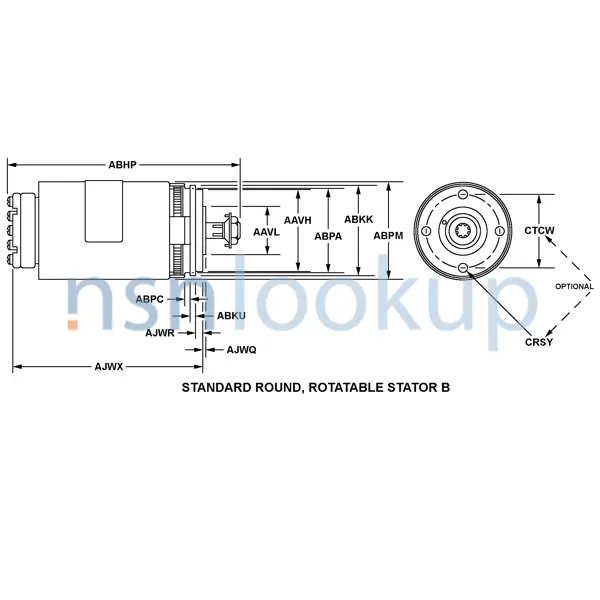

- Standard Round, Rotatable Stator B
- Compensation Method [AJTX]
- Winding Compensated
- Flange Diameter [ABKK]
- 1.0600 Inches Minimum And 1.0620 Inches Maximum
- Flange Thickness [ABKU]
- 0.0900 Inches Minimum And 0.0960 Inches Maximum
- Fragility Factor [AFJN]
- Moderately Rugged
- Frequency In Hertz [AJSS]
- 400.0 Nominal
- Maximum Fundamental Null Voltage In Millivolts Per Volt [AJVG]
- 20.00 Input
- Maximum Temp Rise [AHCG]
- 10.0 Deg Celsius
- Maximum Total Null Voltage Output In Millivolts Per Volt [AJVH]
- 25.00
- Mounting Surface To Terminal End Distance [AJWX]
- 2.9660 Inches Maximum
- Output Voltage Functional Error Range In Percent [AJVK]
- -0.1/+0.1
- Schematic Diagram Designator [AEBZ]
- 2 Rotor, 2 Stator, 2 Compensator, 2 Resistor
- Interaxis Error Angular Range In Minutes [AJVJ]
- -3.0/+3.0
- Rotor Input Voltage Rating In Volts [AJSR]
- 15.0 Nominal
- Shaft End Play Determining Weight [CWYF]
- 8.0 Ounces
- Shaft End Play [AJWH]
- 0.0005 Inches Minimum And 0.0015 Inches Maximum
- Shaft Diameter [ABWV]
- 0.1195 Inches Minimum Single Shaft And 0.1200 Inches Maximum Single Shaft
- Shaft Length [ABXF]
- 0.4290 Inches Minimum Single Shaft And 0.4510 Inches Maximum Single Shaft
- Shaft Maximum Radial Play [AJWG]
- 0.0008 Inches
- Shaft Maximum Runout [AJXB]
- 0.0010 Inches
- Shaft Radial Play Determining Weight [CWXK]
- 4.0 Ounces
- Shaft Radial Play Test Point [AJWE]
- 0.250 Inches Nominal
- Shaft Type [CRSJ]
- Round Single Shaft
- Shoulder Diameter [AAVH]
- 0.9995 Inches Minimum And 1.0000 Inches Maximum
- Shoulder Length [AJWR]
- 0.0590 Nominal Mils And 0.0650 Nominal Centimeters
- Overall Length [ABHP]
- 3.3170 Inches Maximum
- Pilot Diameter [AAVL]
- 0.6245 Inches Minimum And 0.6250 Inches Maximum
- Phase Shift Angle In Deg [AJVF]
- 0.100 Input To Output Maximum
- Pilot Length [AJWQ]
- 0.0590 Nominal Mils And 0.0650 Nominal Centimeters
- Special Features [FEAT]
- Spur Gear
- Transformation Ratio Equality In Percent [AJTW]
- 0.1 Maximum
- Transformation Ratio [CSJY]
- 1.000 Rotor To Stator Nominal
- Undercut Diameter [ABPA]
- 0.9750 Inches Maximum
- Undercut Width [ABPC]
- 0.0450 Inches Minimum And 0.0550 Inches Maximum
- Zro Impedance Magnitude In Ohms [AJTG]
- 500000.00 Minimum
- Zso Impedance Angle In Deg [AJTK]
- 35.00 Nominal
- Zso Impedance Magnitude In Ohms [AJTJ]
- 500.00 Maximum
- Terminal Designator And Schematic Position [AJWP]
- Connection R1 Position H And Connection R2 Position G And Connection R3 Position E And Connection R4 Position J And Connection S1 Position L And Connection S2 Position L And Connection S3 Position K And Connection S4 Position N And Connection C1 Position D And Connection C2 Position C And Connection C3 Position A And Connection C4 Position B
- Terminal Location [CQTM]
- Side
- Terminal Type And Quantity [TTQY]
- 12 Wire Lead
