5990-00-924-4165

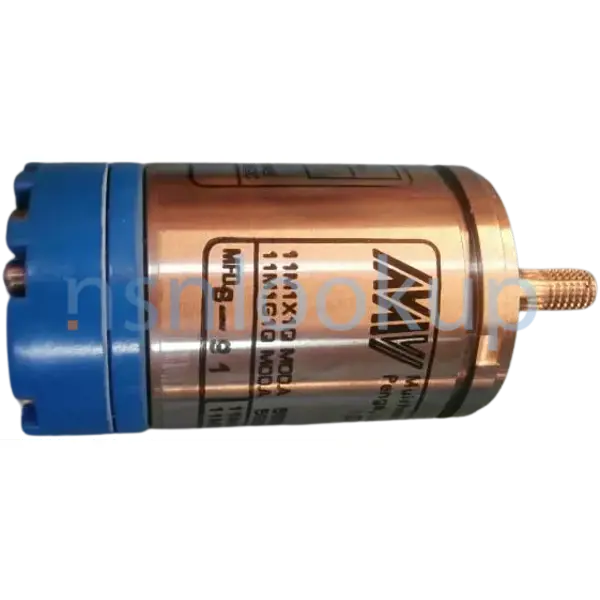

Transmitter Synchro
5990009244165 009244165 SAE-AS20708/2 11CX4E/2-001 26V-11CX4E AS20708 AS 20708/2 11CX1346-1 618381-000 2625497 450900-1271-002 450900-1271-2 069732101 352250005264 11CX4C M20708&2C001 618381 M20708/2-01E V23401-E0001-A102 M20708/2-001 MIL-S-20708/2 11CX4E
A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials. View more Transmitter Synchro
Managed by United States
NSN Created on 20 Jan 1966
Data Last Changed
November 2023
November 2023
NATO Update Count
62
62
NATO Data Quality
Marketplace 5990-00-924-4165
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5990-00-924-4165 5+ Documents (More...)
SAE-AS20708/2 11CX4E/2-001 26V-11CX4E AS20708 AS 20708/2 11CX1346-1 618381-000 2625497 450900-1271-002
450900-1271-2 069732101 352250005264 11CX4C M20708&2C001 618381 M20708/2-01E V23401-E0001-A102 M20708
/2-001 MIL-S-20708/2 11CX4E A synchro consisting of a stator and rotor inductively coupled.
450900-1271-2 069732101 352250005264 11CX4C M20708&2C001 618381 M20708/2-01E V23401-E0001-A102 M20708
/2-001 MIL-S-20708/2 11CX4E A synchro consisting of a stator and rotor inductively coupled.
5365/fr 5365-14-408-1194 Ring Spacer 5365144081194 144081194,618381 11CX4E00211CX4EDEFSTAN59-27PT6 AS 20708/2
11CX1346-1 618381 https//www.nsnlookup.com /fsg-58/fsc-5845/uk 5845-99-254-4577 Transmitter Synchro
-99-254-45775845992544577992544577 is a synchro https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-00-924-4165
11CX1346-1 618381 https//www.nsnlookup.com /fsg-58/fsc-5845/uk 5845-99-254-4577 Transmitter Synchro
-99-254-45775845992544577992544577 is a synchro https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-00-924-4165
AS20708 AS20708 AS 20708/2 11CX1346-1 618381 -000 2625497 618381 AS20708 AS 20708/2 11CX1346-1 618381
-000 2625497 618381 450900-1271-002 450900-1271 Restrictions 5990 https//www.nsnlookup.com /fsg-53/fsc
618381 450900-1271-002 450900 AS20708 15-141-5387Torque Motor9999151415387 151415387618381 Synchro5990009244165
-000 2625497 618381 450900-1271-002 450900-1271 Restrictions 5990 https//www.nsnlookup.com /fsg-53/fsc
618381 450900-1271-002 450900 AS20708 15-141-5387Torque Motor9999151415387 151415387618381 Synchro5990009244165
11CX4E AS20708/2 11CX1346-4 CR40913002 M20708/2-04E MIL-S-20708/2 A synchro consisting of a stator
SAE-AS20708/2 11CX4E 141-5387 Torque Motor 9999151415387 151415387,618381 https//www.nsnlookup.com /
Synchro5990009244165 009244165 SAE-AS20708/2 11CX4E/2-001 26V-11CX4E AS20708 AS 20708/2 11CX1346-1 618381
SAE-AS20708/2 11CX4E 141-5387 Torque Motor 9999151415387 151415387,618381 https//www.nsnlookup.com /
Synchro5990009244165 009244165 SAE-AS20708/2 11CX4E/2-001 26V-11CX4E AS20708 AS 20708/2 11CX1346-1 618381
11CX4E AS20708/2 VCX11-4G1 M20708/2-05E 1.791521 59 000-13 M20708/2C-005 MIL-S-20708/2 M20708/2-005
https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-00-924-4165 Transmitter Synchro 5990009244165 009244165
/2 11CX4E/2-001 26V-11CX4E AS20708 AS 20708/2 11CX1346-1 618381-000 2625497 618381 450900-1271-002 450900
https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-00-924-4165 Transmitter Synchro 5990009244165 009244165
/2 11CX4E/2-001 26V-11CX4E AS20708 AS 20708/2 11CX1346-1 618381-000 2625497 618381 450900-1271-002 450900
Restrictions 5990-00-924-4165
5990-00-924-4165 is a Transmitter Synchro that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5990-00-924-4165
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5990-00-924-4165
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- BD
- US Coast Guard (C911)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C007
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKEJBHD
- Latvia (VD01)
- Effective Date:
- 1 Jun 2012
- Poland (WP01)
- Effective Date:
- 1 Jun 2007
- Bulgaria (WU01)
- Effective Date:
- 1 May 2006
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5990-00-924-4165
- Part Number
- Manufacturer
- Status
- SAE-AS20708/2
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- M20708/2-01E
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- 11CX4E/2-001
- B6577 - Elcos (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 26V-11CX4E
- 99932 - Moog Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AS20708
- 0VH01 - Sae Customer Service Dept 2045 (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AS 20708/2
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- V23401-E0001-A102
- C0426 - Hensoldt Sensors Gmbh (Active)
- Secondary Buy
- Secondary Buy
- M20708/2-001
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-S-20708/2
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- M20708/2-01E
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 11CX4E
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 11CX1346-1
- 14404 - Ametek Technical & Industrial (Active)
- Advisory Reference
- Advisory Reference
- 618381-000
- 56232 - Lockheed Martin Corporation (Active)
- Advisory Reference
- Advisory Reference
- 2625497
- 53711 - Naval Sea Systems Command (Active)
- Advisory Reference
- Advisory Reference
- 450900-1271-002
- D4856 - Northrop Grumman Litef Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 450900-1271-2
- D4856 - Northrop Grumman Litef Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 069732101
- D1876 - Elac Sonar Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 352250005264
- H0203 - Thales Nederland (Active)
- Advisory Reference
- Advisory Reference
- 11CX4C
- 81349 - Military Specifications (Active)
- Advisory Reference
- Advisory Reference
- M20708&2C001
- 81349 - Military Specifications (Active)
- Advisory Reference
- Advisory Reference
- M20708/2-001
- 96906 - Military Standards (Active)
- Advisory Reference
- Advisory Reference
- 618381
- 56232 - Lockheed Martin Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5990-00-924-4165
- Characteristic
- Specifications
- FIIG
- Specifications
- A07800
- Electrical Error Angular Range In Minutes [AJVL]
- -7.0/+7.0
- Actuator Friction Torque At Plus 25 Deg Celsius [AJVT]
- 0.07 Inch-Ounces Maximum
- Alignment Hole Bolt Circle Diameter [CTCW]
- 0.8120 Inches Nominal
- Alignment Hole Depth [CRSY]
- 0.1250 Inches Minimum
- Alignment Hole Quantity [AJVW]
- 4
- Body Material [AAFZ]
- Steel, Corrosion Resisting
- Body Size [AJSL]
- 11
- Body Style [AAQL]
- Standard Round C
- Flange Diameter [ABKK]
- 1.0570 Inches Minimum And 1.0620 Inches Maximum
- Flange Thickness [ABKU]
- 0.0930 Inches Nominal
- Fragility Factor [AFJN]
- Moderately Rugged
- Frequency In Hertz [AJSS]
- 400.0 Nominal
- Maximum Fundamental Null Voltage In Millivolts Per Volt [AJVG]
- 45.00 Output
- Maximum Temp Rise [AHCG]
- 20.0 Deg Celsius
- Maximum Total Null Voltage Output In Millivolts Per Volt [AJVH]
- 75.00
- Mounting Surface To Terminal End Distance [AJWX]
- 1.7940 Inches Maximum
- Rotor Input Current Rating [AJST]
- 31.0 Milliamperes Maximum
- Rotor Input Electrical Power Rating [AJSV]
- 490.0 Milliwatts Nominal
- Rotor Input Voltage Rating In Volts [AJSR]
- 115.0 Nominal
- Shaft Diameter [ABWV]
- 0.1870 Inches Minimum Single Shaft And 0.1872 Inches Maximum Single Shaft
- Shaft Nominal Thread Size [CWBH]
- 0.190 Inches Single Shaft
- Shaft Length [ABXF]
- 0.5620 Inches Nominal Single Shaft
- Shaft Thread Class [AKAN]
- 2A Single Shaft
- Shaft Thread Direction [AKAF]
- Right-Hand Single Shaft
- Shaft Thread Length [CQWQ]
- 0.1900 Inches Nominal Single Shaft
- Shaft Thread Series Designator [AJYY]
- Unf Single Shaft
- Shaft Type [CRSJ]
- Spline W/Threads Single Shaft
- Shoulder Diameter [AAVH]
- 0.9995 Inches Minimum And 1.0000 Inches Maximum
- Shoulder Length [AJWR]
- 0.0620 Inches Nominal
- Overall Length [ABHP]
- 2.3560 Inches Nominal
- Pilot Diameter [AAVL]
- 0.6245 Inches Minimum And 0.6250 Inches Maximum
- Pilot Length [AJWQ]
- 0.0620 Inches Nominal
- Phase Shift Angle In Deg [AJVF]
- 4.500 Input To Output Nominal
- Transformation Ratio [CSJY]
- 0.783 Stator To Rotor Nominal
- Undercut Diameter [ABPA]
- 0.9750 Inches Nominal
- Undercut Width [ABPC]
- 0.0620 Inches Nominal
- Zro Impedance Angle In Deg [AJTH]
- 80.00 Minimum And 84.00 Maximum
- Zro Impedance Magnitude In Ohms [AJTG]
- 3720.00 Minimum And 4700.00 Maximum
- Zss Impedance Angle In Deg [AJTP]
- 17.00 Minimum And 26.00 Maximum
- Zss Impedance Magnitude In Ohms [AJTN]
- 410.00 Minimum And 500.00 Maximum
- Specification/Standard Data [ZZZK]
- 81349-Mil-S-20708/2 Government Specification
- Spline Tooth Diametral Pitch [AJXA]
- 120 Single Shaft
- Spline Tooth Quantity [AJVM]
- 21 Single Shaft
- Terminal Location [CQTM]
- Rear
- Terminal Type And Quantity [TTQY]
- 5 Screw
- Test Data Document [TEST]
- 81349-Mil-S-20708 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
Weapon Systems (WSDC) 5990-00-924-4165
DLA Procurement Analysis 5990-00-924-4165
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5990-00-924-4165
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 3B
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5990-00-924-4165
Freight Information 5990-00-924-4165
5990-00-924-4165 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062820. A Sub NMFC of Z. It has a NMFC Description of RADIO/TV TRANSMIT/RECEIVE SETS. 5990-00-924-4165 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35080 which rates the freight between FCL and LCL. 5990-00-924-4165 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 5990-00-924-4165 is not classified as a special type of cargo when transported by water. 5990-00-924-4165 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5990-00-924-4165
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Vendor's Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 5990-00-924-4165 12 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M018V2200
- 04 Dec 2017
- Subscribe
- 39
- Subscribe
- Subscribe
- Subscribe
- SPE7M118P0303
- 13 Oct 2017
- Subscribe
- 43
- Subscribe
- Subscribe
- Subscribe
- SPE7M517PA070
- 01 Jun 2017
- Subscribe
- 52
- Subscribe
- Subscribe
- Subscribe
- SPE7M517P2989
- 09 Dec 2016
- Subscribe
- 25
- Subscribe
- Subscribe
- Subscribe
- SPE7M515M8240
- 14 May 2015
- Subscribe
- 37
- Subscribe
- Subscribe
- Subscribe
- SPM4A111G0001U304
- 16 Jan 2015
- Subscribe
- 28
- Subscribe
- Subscribe
- Subscribe
- SPE7M515M1101
- 27 Oct 2014
- Subscribe
- 29
- Subscribe
- Subscribe
- Subscribe
- SPE7M914M0633
- 05 Dec 2013
- Subscribe
- 31
- Subscribe
- Subscribe
- Subscribe
- SPE7M914M0018
- 01 Oct 2013
- Subscribe
- 28
- Subscribe
- Subscribe
- Subscribe
- SPE7M913M0642
- 09 Sep 2013
- Subscribe
- 19
- Subscribe
- Subscribe
- Subscribe
- SPM7M313V5479
- 17 Apr 2013
- Subscribe
- 31
- Subscribe
- Subscribe
- Subscribe
- SPM7M113V5540
- 26 Feb 2013
- Subscribe
- 37
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5990-00-924-4165 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
