5990-00-796-0728
Electrical Transolver
5990007960728 007960728 CSDH-10-BCS-1/A002 1784216-9
An item consisting of a rotor and a stator inductively coupled. It has wye connected and quadrature windings, either of which can be stator or the rotor and serve as the Primary for input voltages. The output voltages are trigonometric functions of the input voltages and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified). Excludes RESOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers. View more Electrical Transolver
May 2023
12
Marketplace 5990-00-796-0728
Request a Quotation from participating marketplace vendors
Related Documents 5990-00-796-0728 5+ Documents (More...)
5990-00-796-0728 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-00-796-0728
RQST NE Updated Every Day 5990-00-796-0728 RQST Updated Every Day 5990-00-796-0728 RQST NE Related Documents
. ) https https 1681 Electrical Transolver 5990143811681 143811681 5990-14-381-1681 193-9226 5990-00-796-0728
5990-14-388-9323 5990-43-001-2901 https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-00-796-0728
Electrical Transolver 5990007960728 007960728 Electrical Transolver 5990121939226121939226 5990121939226121939226
5990121939226121939226 5990-14-388-9323 Electrical Transolver 5990143889323143889323 5990-99-199 9226 5990-00-796-0728
Electrical Transolver 5990007960728 007960728 796-0728 5990-14-388-9323 5990000192490 000192490
5990001321841001321841 1841 Documents 5990-00-132 5990007960728007960728 1996 069-8649 5990-12-193-9226 5990-00-796-0728
-5990/us 5990-00-019-2490 Electrical Transolver 5990000192490 000192490 14-381-1681 193-9226 5990-00-796-0728
Stock Numbers Related to 5990-14-369-7986 5990-43-001-2901 5990-01-069-8649 5990-12-193-9226 5990-00-796-0728
Restrictions 5990-00-796-0728
5990-00-796-0728 is a Electrical Transolver that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5990-00-796-0728
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- Poland (WP01)
- Effective Date:
- 1 May 2011
- Brazil (YA01)
- Effective Date:
- 1 Nov 2008
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5990-00-796-0728
- Part Number
- Manufacturer
- Status
- CSDH-10-BCS-1/A002
- Manufacturer
- 99932 - Moog Inc. (Active)
- Primary Buy
- Primary Buy
- 1784216-9
- 56232 - Lockheed Martin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5990-00-796-0728
- Characteristic
- Specifications
- FIIG
- Specifications
- A07800
- Electrical Error Angular Range In Minutes [AJVL]
- -5.0/+5.0
- End Item Identification [AGAV]
- 6610-00-474-2286
- Actuator Friction Torque At Minus 55 Deg Celsius [AJVS]
- 9.00 Centimeter-Grams Nominal
- Actuator Friction Torque At Plus 25 Deg Celsius [AJVT]
- 3.00 Centimeter-Grams Nominal
- Alignment Hole Bolt Circle Diameter [CTCW]
- 0.6870 Inches Nominal
- Alignment Hole Depth [CRSY]
- 0.0500 Inches Maximum
- Alignment Hole Quantity [AJVW]
- 3
- Body Material [AAFZ]
- Steel, Stainless
- Body Size [AJSL]
- 10
- Body Style [AAQL]
- Standard Round C
- Flange Diameter [ABKK]
- 0.9370 Inches Nominal
- Flange Thickness [ABKU]
- 0.0620 Inches Nominal
- Fragility Factor [AFJN]
- Moderately Rugged
- Frequency In Hertz [AJSS]
- 400.0 Nominal
- Maximum Total Null Voltage Output In Millivolts Per Volt [AJVH]
- 30.00
- Mounting Surface To Terminal End Distance [AJWX]
- 1.2810 Inches Maximum
- Plus J Zro Reactance In Ohms [CQXQ]
- 2570.00 Nominal
- Plus J Zrs Reactance In Ohms [CRKL]
- 260.00 Nominal
- Plus J Zso Reactance In Ohms [CRGZ]
- 470.00 Nominal
- Rotor Input Voltage Rating In Volts [AJSR]
- 22.2 Nominal
- Shaft Diameter [ABWV]
- 0.0900 Inches Maximum Single Shaft
- Shaft Length [ABXF]
- 0.5870 Inches Nominal Single Shaft
- Shaft End Play Determining Weight [CWYF]
- 8.0 Ounces
- Shaft End Play [AJWH]
- 0.0015 Inches Maximum
- Shaft Radial Play Test Point [AJWE]
- 0.125 Inches Maximum
- Shaft Slot Depth [CQZS]
- 0.0310 Inches Nominal Single Shaft
- Shaft Slot Width [CRHN]
- 0.0310 Inches Nominal Single Shaft
- Shaft Type [CRSJ]
- Round, Slotted Single Shaft
- Shaft Maximum Runout [AJXB]
- 0.0010 Inches
- Shaft Maximum Radial Play [AJWG]
- 0.0008 Inches
- Shoulder Diameter [AAVH]
- 0.3230 Inches Nominal
- Shoulder Length [AJWR]
- 0.0620 Nominal Inches
- Overall Length [ABHP]
- 1.9000 Inches Maximum
- Phase Shift Angle In Deg [AJVF]
- 9.000 Input To Output Nominal
- Pilot Diameter [AAVL]
- 0.5000 Inches Maximum
- Pilot Length [AJWQ]
- 0.0380 Nominal Inches
- Transformation Ratio [CSJY]
- 2.176 Rotor To Stator Nominal

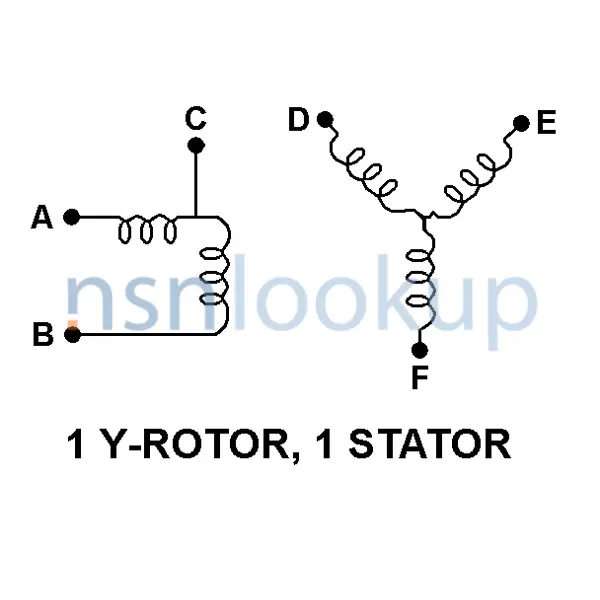

- Schematic Diagram Designator [AEBZ]
- Unable To Decode
- Undercut Diameter [ABPA]
- 0.8400 Inches Maximum
- Undercut Width [ABPC]
- 0.0620 Inches Nominal
- Zrs Resistance In Ohms [AJTA]
- 1200.00 Nominal
- Zso Resistance In Ohms [AJSY]
- 115.00 Nominal
- Zro Resistance In Ohms [AJSW]
- 1100.00 Nominal
- Stator Input Current Rating [AJSP]
- 11.8 Milliamperes Maximum
- Stator Input Electrical Power Rating [AJSQ]
- 60.0 Milliwatts Maximum
- Stator Input Voltage Rating In Volts [AJSN]
- 11.8 Nominal
- Terminal Location [CQTM]
- Rear
- Terminal Type And Quantity [TTQY]
- 6 Wire Lead
Weapon Systems (WSDC) 5990-00-796-0728
DLA Procurement Analysis 5990-00-796-0728
Management Data 5990-00-796-0728
Similar Supply Items to 5990-00-796-0728
Freight Information 5990-00-796-0728
5990-00-796-0728 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062120. A Sub NMFC of Z. It has a NMFC Description of GENERATORS/MOTORS/PARTS NOI. 5990-00-796-0728 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34760 which rates the freight between FCL and LCL. 5990-00-796-0728 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 5990-00-796-0728 is not classified as a special type of cargo when transported by water. 5990-00-796-0728 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
