5990-00-085-0829
Receiver-Transmitter Synchro
5990000850829 000850829 AS20708/70 AY3701-4C2 808112 AJ10029-1 MILS20708-70-37T 37TRX4A 37TX4B M20708-70-01A M20708-70-001 MIL-S-20708/70 5990PL1365971
A synchro having a dual purpose. It may be used in applications requiring either a receiver or transmitter. For synchros having a single purpose, see SYNCHRO, RECEIVER and SYNCHRO, TRANSMITTER. View more Receiver-Transmitter Synchro
Managed by United States
NSN Created on 24 Dec 1967
Data Last Changed
November 2023
November 2023
NATO Update Count
41
41
NATO Data Quality
Marketplace 5990-00-085-0829
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5990-00-085-0829 5+ Documents (More...)
AS20708/70 AY3701-4C2 808112 AJ10029-1 MILS20708-70-37T 37TRX4A 37TX4B M20708-70-01A M20708-70-001 MIL-S
-20708/70 5990PL1365971 A synchro having a dual purpose.
5990-00-085-0829 SYNCHRO,RECEIVER-TRANSMITTER RQST NS Request Quotation Updated Every Day 5990-00-085
-20708/70 5990PL1365971 A synchro having a dual purpose.
5990-00-085-0829 SYNCHRO,RECEIVER-TRANSMITTER RQST NS Request Quotation Updated Every Day 5990-00-085
5990-00-957-6125Receiver-Transmitter Synchro5990009576125 009576125 Cancelled - Replaced by NSN 5990-00-085-0829
Documents 5990-00-957-6125 2+ Documents ( More https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-00-085-0829
Receiver-Transmitter Synchro 5990000850829 Request Quotation Updated Every Day 5990-00-085 https
Documents 5990-00-957-6125 2+ Documents ( More https//www.nsnlookup.com /fsg-59/fsc-5990/us 5990-00-085-0829
Receiver-Transmitter Synchro 5990000850829 Request Quotation Updated Every Day 5990-00-085 https
5990222620878 5990004836623 Receiver-Transmitter Synchro 5990222620878 164-8673 5990-01-202-7003 5990-00-085-0829
5990222620878 5990-01-249-8212 5990-21-101-1801 5990-22-262-0878 https 164-8673 5990-01-202-7003 5990-00-085-0829
204-2127 5990-01-114-5095 5990-01-258-3848 5990-01-578-5382 5990-01-164-8673 5990-01-202-7003 5990-00-085-0829
5990222620878 5990-01-249-8212 5990-21-101-1801 5990-22-262-0878 https 164-8673 5990-01-202-7003 5990-00-085-0829
204-2127 5990-01-114-5095 5990-01-258-3848 5990-01-578-5382 5990-01-164-8673 5990-01-202-7003 5990-00-085-0829
www.nsnlookup.com https https Synchro 5990211011801 578-5382 5990-01-164-8673 5990-01-202-7003 5990-00-085-0829
204-2127 5990-01-114-5095 5990-01-258-3848 5990-01-578-5382 5990-01-164-8673 5990-01-202-7003 5990-00-085-0829
204-2127 5990-01-114-5095 5990-01-258-3848 5990-01-578-5382 5990-01-164-8673 5990-01-202-7003 5990-00-085-0829
Synchro 5990121526850 Receiver-Transmitter Synchro 5990997053778 Synchro 5990121526850 202-7003 5990-00-085-0829
204-2127 5990-01-114-5095 5990-01-258-3848 5990-01-578-5382 5990-01-164-8673 5990-01-202-7003 5990-00-085-0829
204-2127 5990-01-114-5095 5990-01-258-3848 5990-01-578-5382 5990-01-164-8673 5990-01-202-7003 5990-00-085-0829
Restrictions 5990-00-085-0829
5990-00-085-0829 is a Receiver-Transmitter Synchro that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5990-00-085-0829
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5990-00-085-0829
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 Jun 2007
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Feb 1997
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Jul 2000
- Greece (ZU01)
- Effective Date:
- 1 Aug 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5990-00-085-0829
- Part Number
- Manufacturer
- Status
- AS20708/70
- Manufacturer
- 0VH01 - Sae Customer Service Dept 2045 (Active)
- Incomplete Reference
- Incomplete Reference
- 37TRX4A
- 10112 - General Dynamics Motion Control Llc (Active)
- Secondary Buy
- Secondary Buy
- MILS20708-70-37T
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 37TRX4A
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 37TX4B
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- M20708-70-01A
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- M20708-70-001
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-S-20708/70
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5990PL1365971
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- AY3701-4C2
- 06840 - Bendix Corp The (Obsolete)
- Advisory Reference
- Advisory Reference
- 808112
- 06141 - L3 Aviation Products, Inc. (Active)
- Advisory Reference
- Advisory Reference
- AJ10029-1
- 08480 - Wilson Trophy Co (Obsolete)
- Advisory Reference
- Advisory Reference
- AY3701-4C2
- 06845 - Raytheon Company (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5990-00-085-0829
- Characteristic
- Specifications
- FIIG
- Specifications
- A07800
- Electrical Error Angular Range In Minutes [AJVL]
- -8.0/+8.0
- Aft Of Second Flange Diameter [AJWW]
- 3.3740 Inches Minimum And 3.3750 Inches Maximum
- Body Diameter [ABPM]
- 3.3850 Inches Minimum And 3.3900 Inches Maximum
- Body Material [AAFZ]
- Steel, Corrosion Resisting
- Body Size [AJSL]
- 37

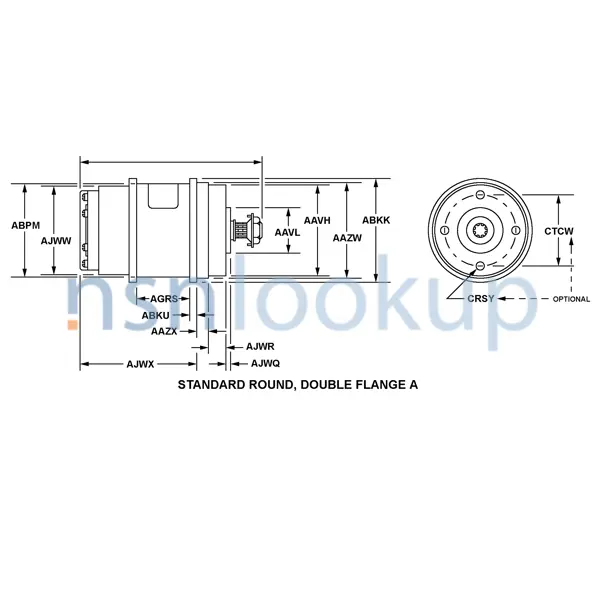

- Body Style [AAQL]
- Standard Round Double Flange A
- Distance Between Flanges [AGRS]
- 1.3120 Inches Nominal
- Flange Diameter [ABKK]
- 3.6240 Inches Minimum And 3.6250 Inches Maximum
- Flange Thickness [ABKU]
- 0.2500 Inches Nominal
- Frequency In Hertz [AJSS]
- 400.0 Nominal
- Maximum Fundamental Null Voltage In Millivolts Per Volt [AJVG]
- 35.00 Output
- Maximum Temp Rise [AHCG]
- 60.0 Deg Celsius
- Maximum Total Null Voltage Output In Millivolts Per Volt [AJVH]
- 170.00
- Mounting Surface To Terminal End Distance [AJWX]
- 4.0300 Inches Maximum
- Receiver Error Angular Range In Minutes [AJVN]
- -36.0/+36.0
- Rotor Input Voltage Rating In Volts [AJSR]
- 115.0 Nominal
- Rotor Input Current Rating [AJST]
- 1.9 Amperes Nominal
- Rotor Input Electrical Power Rating [AJSV]
- 20.0 Watts Nominal
- Second Shoulder Diameter [AAZW]
- 3.3740 Inches Minimum And 3.3750 Inches Maximum
- Second Shoulder Length [AAZX]
- 0.3750 Inches Nominal
- Shaft Diameter [ABWV]
- 0.2403 Inches Minimum Single Shaft And 0.2405 Inches Maximum Single Shaft
- Shaft Nominal Thread Size [CWBH]
- 0.250 Inches Single Shaft
- Shaft Thread Class [AKAN]
- 2A Single Shaft
- Shaft Thread Direction [AKAF]
- Right-Hand Single Shaft
- Shaft Thread Length [CQWQ]
- 0.3870 Inches Nominal Single Shaft
- Shaft Thread Series Designator [AJYY]
- Unf Single Shaft
- Shaft Type [CRSJ]
- Spline W/Threads Single Shaft
- Shaft Length [ABXF]
- 0.8900 Inches Nominal Single Shaft
- Shoulder Diameter [AAVH]
- 3.3290 Inches Minimum And 3.3340 Inches Maximum
- Shoulder Length [AJWR]
- 0.6550 Inches Nominal
- Overall Length [ABHP]
- 5.9200 Inches Nominal
- Phase Shift Angle In Deg [AJVF]
- 1.000 Input To Output Nominal
- Pilot Length [AJWQ]
- 0.1600 Inches Nominal
- Pilot Diameter [AAVL]
- 1.6250 Inches Nominal
- Zss Impedance Angle In Deg [AJTP]
- 66.00 Minimum And 70.00 Maximum
- Zss Impedance Magnitude In Ohms [AJTN]
- 3.00 Minimum And 4.00 Maximum
- Specification/Standard Data [ZZZK]
- 81349-Mil-S-20708/70 Government Specification
- Spline Tooth Quantity [AJVM]
- 22 Single Shaft
- Spline Tooth Diametral Pitch [AJXA]
- 96 Single Shaft
- Terminal Location [CQTM]
- Rear
- Terminal Type And Quantity [TTQY]
- 5 Screw
- Test Data Document [TEST]
- 81349-Mil-S-20708 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
- Torque Gradient Per Angular Deg [AJVV]
- 0.900 Inch-Ounces Nominal
- Transformation Ratio [CSJY]
- 0.783 Rotor To Stator Nominal
