5985-01-574-3189
Radio Frequency Transmission Line Switch
5985015743189 015743189 99007B7050 PS3.5/2S-5V-TTL
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
June 2023
2
Marketplace 5985-01-574-3189
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-574-3189 1+ Documents (More...)
United States (US) 4. 5985-01-574-3189 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5985-01-574-3189 RQST NE Updated Every Day 5985-01-574-3189 RQST
Restrictions 5985-01-574-3189
5985-01-574-3189 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-574-3189
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-574-3189
- US Marine Corps (MC49)
- Effective Date:
- 1 May 2009
Approved Sources 5985-01-574-3189
- Part Number
- Manufacturer
- Status
- PS3.5/2S-5V-TTL
- Manufacturer
- 23042 - Trilithic, Inc. (Obsolete)
- Original Design
- Original Design
- 99007B7050
- 01365 - Marine Corps Systems Command (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5985-01-574-3189
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- End Item Identification [AGAV]
- 6625-01-513-6372, An/Psm-105 Program Set

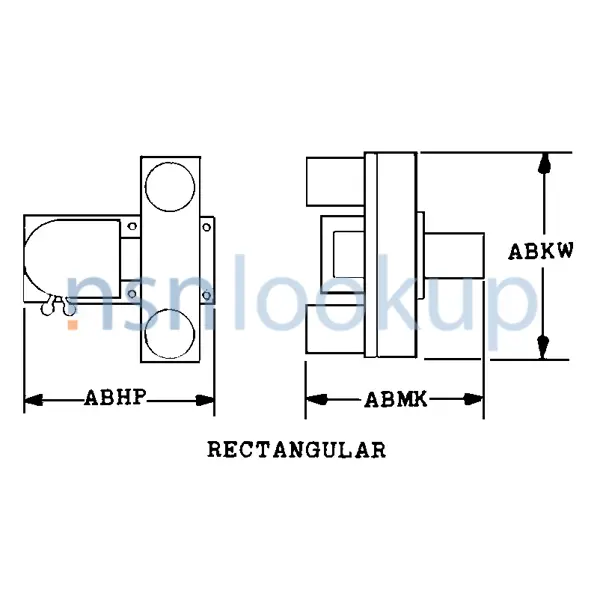

- Body Style [AAQL]
- Rectangular
- Coupling Position Quantity [AKRC]
- 3
- Features Provided [CBBL]
- Compatible Ttl And Mounting Hardware
- Frequency Rating [ACZB]
- 1.0 Megahertz Minimum And 3500.0 Megahertz Maximum Single Frequency Operating
- Insertion Loss In Decibels [AHTX]
- 2.50 Single
- Overall Height [ABKW]
- 0.990 Inches Nominal
- Overall Length [ABHP]
- 4.500 Inches Nominal
- Overall Width [ABMK]
- 1.770 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Switch, Radio Frequency Transmission Line - Programmable
- Special Features [FEAT]
- Switching Mode Is Non-Reflective;Input Port Connector 1;Output Pot Connectors 2;Control Option Ttl Compatible;Control Port Connector Style 9 Pin D Type;Control Port Connector 1;Temp Range 0 Deg C To 70 Deg C;Supply Voltage Plus 5 Vdc
- Switching Time [AKPP]
- 99.0 Nanoseconds
