Radio Frequency Transmission Line Switch
5985015448777 015448777 D4-123A20
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
May 2023
1
Marketplace 5985-01-544-8777
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-544-8777 2+ Documents (More...)
Updated Every Day 5985-01-544-8777 RQST NE Related Documents 5985-01-544-8777 2+ Documents ( More...
BUY NE FedMall Updated Every Day 5985-01-544-8777 RQST NE Updated Every Day 5985-01-544-8777 RQST Updated
Line Switch Account Upgrade 5985-01-544-8777Radio Frequency Transmission Line Switch5985015448777 015448777
D4-123A20 Eye Bolt 5306143495128 143495128,246-20 Documents 5306-14-349-5128 1+ Documents ( More...
Restrictions 5985-01-544-8777
5985-01-544-8777 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5985-01-544-8777
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-544-8777
- US Navy (N9BN)
- Effective Date:
- 1 Oct 2006
- Supplementary Collaborators:
- GTKE
Approved Sources 5985-01-544-8777
- Part Number
- Manufacturer
- Status
- D4-123A20
- Manufacturer
- 08719 - Ducommun Labarge Technologies, Inc (Active)
- Primary Buy
- Primary Buy
- D4-123A20
- 50667 - Jay-El Products Inc Dmt Div (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-01-544-8777
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- End Item Identification [AGAV]
- Aircraft, E-2C Hawkeye
- Actuator Current Type And Rating In Amps [AKPE]
- 0.2 Dc Maximum
- Actuator Operating Method [AKPC]
- Solid State
- Actuator Voltage In Volts [AKPJ]
- 28.0 Nominal

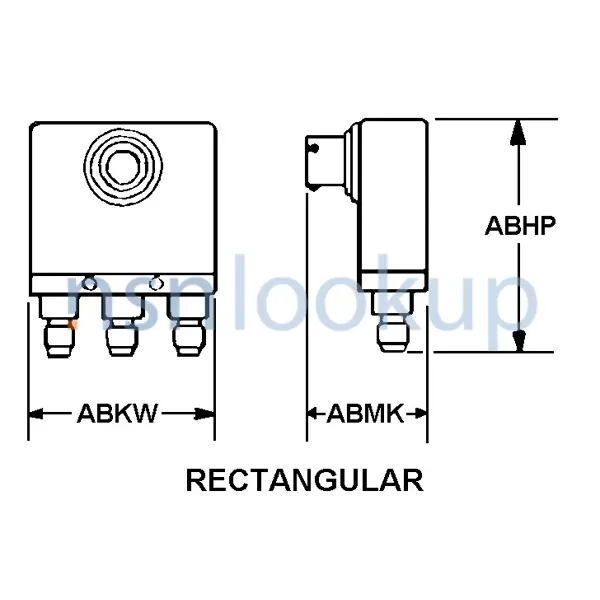

- Body Style [AAQL]
- Rectangular
- Coaxial Connector Series Designation [AHUC]
- Bnc
- Connector End Design [AHUD]
- Female
- Coupling Position Quantity [AKRC]
- 1
- Distance Between Mounting Facility Centers [AEJN]
- 0.885 Inches Nominal Single Mounting Facility Pattern
- Material [MATT]
- Aluminum Body
- Material [MATT]
- Copper Contact(S)
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole
- Mounting Facility Pattern [CQYJ]
- Two Position In-Line Single Mounting Facility Pattern
- Frequency Rating [ACZB]
- 3.0 Gigahertz Nominal 1St Frequency Operating
- Frequency Rating [ACZB]
- 3.0 Gigahertz Minimum And 8.0 Gigahertz Maximum 2Nd Frequency Operating
- Frequency Rating [ACZB]
- 8.0 Gigahertz Minimum And 12.4 Gigahertz Maximum 3Rd Frequency Operating
- Insertion Loss In Decibels [AHTX]
- 0.20 1St
- Insertion Loss In Decibels [AHTX]
- 0.50 3Rd
- Insertion Loss In Decibels [AHTX]
- 0.35 2Nd
- Precious Material And Location [PMLC]
- Connector Contacts Gold
- Precious Material [PRMT]
- Gold
- Overall Height [ABKW]
- 2.480 Inches Nominal
- Overall Length [ABHP]
- 2.950 Inches Nominal
- Overall Width [ABMK]
- 0.950 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.203 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 3 Plug, Coaxial
