5985-01-538-6220

Antenna

5985015386220 015386220 ML9078U-0B AV2091-0-00 757592995306 AS-4626/A

An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure. View more Antenna

Managed by United States

NSN Created on 28 Mar 2006

Data Last Changed
February 2024

NATO Update Count
19

NATO Data Quality

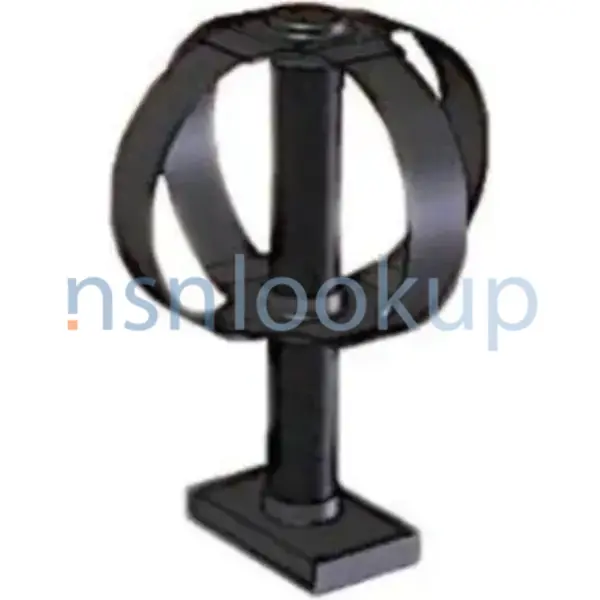

5985-01-538-6220 ANTENNA 5985015386220 015386220 1/1 — 5985-01-538-6220 Photo 1/1

Product Information 5985-01-538-6220

The AV2091 is an UHF Satcom antenna. It is also know as the Egg Beater Antenna.

Marketplace 5985-01-538-6220

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

AV2091-0-00 ANTENNA 1 EA NS

Updated Every Day

5985-01-538-6220 RQST NE

Restrictions 5985-01-538-6220

5985-01-538-6220 is a Antenna that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 5985-01-538-6220

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5985-01-538-6220

US Army (A918)
Effective Date:: 1 May 2008
Former MOE Rule:: A503
Supplementary Receivers:: CLCT; AMC 1 AMSC P IMC Z IMCACTY CD

US Navy (N9BN)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 1 AMSC P IMC Z IMCACTY GH

Hungary (WH01)
Effective Date:: 1 Jun 2010

Australia (ZA01)
Effective Date:: 1 Mar 2008

United Kingdom (ZK01)
Effective Date:: 1 Sep 2007

Norway (ZT01)
Effective Date:: 1 Apr 2007

Approved Sources 5985-01-538-6220

Part Number
Manufacturer
Status
AV2091-0-00: 60188 - Cobham Exeter, Inc. (Active); Original Design; RNCC 3 RNVC 9 DAC B
ML9078U-0B: 1UKX3 - Federal Custom Cable, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
757592995306: 0000V - Ncb Hungary (Honvedsegi Egyseges (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
AS-4626/A: 60188 - Cobham Exeter, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC B
AS-4626/A: 66544 - Frontgrade Technologies Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC B
AV2091-0-00: 66544 - Frontgrade Technologies Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC B

Management Data 5985-01-538-6220

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Nov 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

Q: Electronics Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 5985-01-538-6220

Freight Information 5985-01-538-6220

5985-01-538-6220 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 060560. A Sub NMFC of Z. It has a NMFC Description of AERIALS/ANTENNAE O/T TV. 5985-01-538-6220 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34030 which rates the freight between FCL and LCL. 5985-01-538-6220 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5985-01-538-6220 is not classified as a special type of cargo when transported by water. 5985-01-538-6220 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5985-01-538-6220

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; --; --

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning; 1 inch thick; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; Markings shall be omitted for sensitive, controlled or pilferable items per MIL-STD-129

Intermediate Pack Level

Quantity of Unit Packs
Container: Any Suitable Fiber Box

Contracting Technical Data File (CTDF) 5985-01-538-6220 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
