5985-01-536-2226
Radio Frequency Transmission Line Switch
5985015362226 015362226 440191-2 440191-1 440191 8438-S738 8438-S612
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
May 2023
8
Marketplace 5985-01-536-2226
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-536-2226 5+ Documents (More...)
Switch mechanically or electronically -2 440191-1 Frequency https https//www.nsnlookup.com /fsg-59/fsc
Line Switch 8438-S738 2226Radio Restrictions 5985-01-536-2226 DEMIL: D | DEMILI : 7 | CRITICALITY :
MAB438.5612160 SI3010-62 440191 Radio Frequency Transmission Line Switch 440191 8438-S738 https//www.nsnlookup.com
Radio Frequency Transmission Line Switch -2 440191-1 440191 8438-S738 8438-S612 An item specifically
Line Switch positioning one or more item specifically designed for mechanically or electronically -2 440191
-2 440191-1 440191 8438-S738 -2 440191-1 440191 8438-S738 8438-S612 An item specifically designed for
-1 440191 8438-S738 8438-S612 An item specifically designed for 012995990 MAB438.5612160 SI3010 -62 440191
Radio Frequency Transmission Line Switch 440191 8438-S738 https//www.nsnlookup.com /fsg-53 -2 440191
Restrictions 5985-01-536-2226
IUID Required
5985-01-536-2226 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-536-2226
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-536-2226
- US Air Force (FGG4)
- Effective Date:
- 1 Dec 2005
Approved Sources 5985-01-536-2226
- Part Number
- Manufacturer
- Status
- 8438-S738
- Manufacturer
- 96341 - Cobham Advanced Electronic Solutions (Obsolete)
- Original Design
- Original Design
- 440191-2
- 82340 - L3harris Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 440191-1
- 82340 - L3harris Technologies, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 8438-S612
- 96341 - Cobham Advanced Electronic Solutions (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 440191
- 82340 - L3harris Technologies, Inc. (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5985-01-536-2226
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- End Item Identification [AGAV]
- An/Alq-161A
- Actuator Operating Method [AKPC]
- Solid State

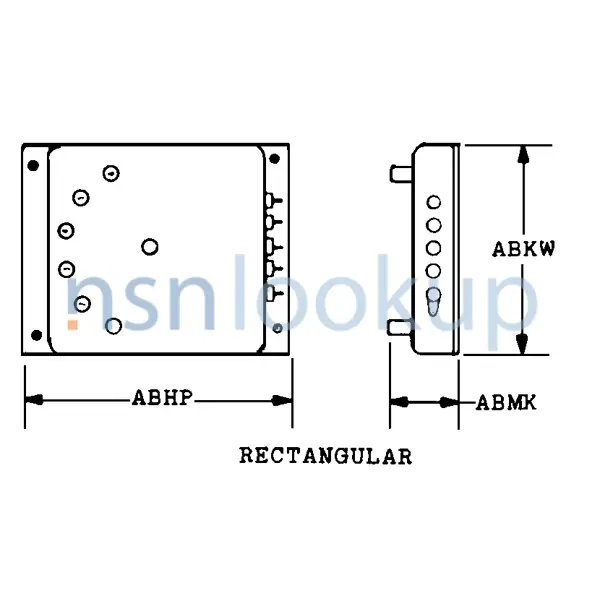

- Body Style [AAQL]
- Rectangular
- Coaxial Connector Series Designation [AHUC]
- Sma
- Connector End Design [AHUD]
- Female
- Minimum Crosstalk Rating In Decibels [AKNV]
- 40.0 Single
- Mounting Facility Type And Quantity [AXHR]
- 4 Unthreaded Hole
- Mounting Facility Pattern [CQYJ]
- Four Position Rectangular Single Mounting Facility Pattern
- Frequency Rating [ACZB]
- 1.8 Gigahertz Minimum And 2.6 Megahertz Maximum Single Frequency Operating
- Rf Power Handling Capability [AKNF]
- 20.0 Decibels Average Single
- Overall Height [ABKW]
- 1.160 Inches Nominal
- Overall Length [ABHP]
- 3.280 Inches Nominal
- Overall Width [ABMK]
- 2.000 Inches Nominal
- Special Features [FEAT]
- Item Is Called "Transmitter Rf Switch/Limiter Attenuator
- Unpackaged Unit Weight [PKWT]
- 15.000 Ounces
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.125 Inches Nominal
- Voltage Standing Wave Ratio [AHTW]
- 1.60 Single
- Switch Type [AEEA]
- Transfer
- Switching Time [AKPP]
- 10.0 Microseconds
- Terminal Type And Quantity [TTQY]
- 6 Receptacle, Coaxial And 5 Pin
Management Data 5985-01-536-2226
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- L
- E
- Replaced By 5985-01-624-3175
- E
- Department of the Air Force (DF)
- L
- R
- Refer To Net Price 4081.76
- NET PRICE 4081.76
- R
Similar Supply Items to 5985-01-536-2226
Freight Information 5985-01-536-2226
5985-01-536-2226 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 060535. A Sub NMFC of Z. It has a NMFC Description of AERIAL/ANTENNAS DIRECTIONAL. 5985-01-536-2226 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 06330 which rates the freight between FCL and LCL. 5985-01-536-2226 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5985-01-536-2226 is not classified as a special type of cargo when transported by water. 5985-01-536-2226 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
