5985-01-506-1465
Radio Frequency Transmission Line Switch
5985015061465 015061465 F9150T
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
January 2023
3
Marketplace 5985-01-506-1465
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-506-1465 1+ Documents (More...)
5985-01-506-1465 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-506-1465
/fsg-59/fsc-5985/us 5985-01-506-1465 /fsg-59/fsc-5985/us 5985-01-506-1465 /fsg-59/fsc-5985/us 5985-01
Restrictions 5985-01-506-1465
5985-01-506-1465 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-506-1465
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-506-1465
- Spain (YB01)
- Effective Date:
- 1 Mar 2003
Approved Sources 5985-01-506-1465
- Part Number
- Manufacturer
- Status
- F9150T
- Manufacturer
- 11332 - General Microwave Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5985-01-506-1465
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0

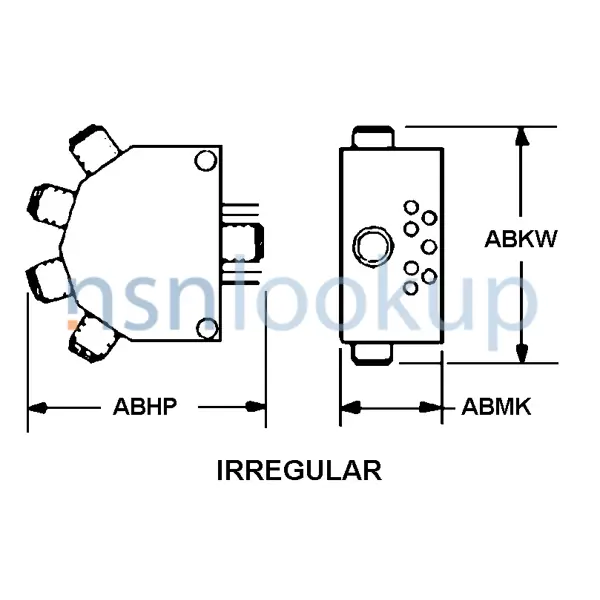

- Body Style [AAQL]
- Irregular
- Coaxial Connector Series Designation [AHUC]
- Sma
- Coupling Position Quantity [AKRC]
- 6
- Mounting Facility Type And Quantity [AXHR]
- 2 Threaded Hole
- Frequency Rating [ACZB]
- 1.0 Gigahertz Minimum And 18.0 Gigahertz Maximum Single Frequency Operating
- Insertion Loss In Decibels [AHTX]
- 3.00 Single
- Pole Quantity [AKPX]
- 5
- Rf Power Handling Capability [AKNF]
- 1.0 Watts Average Single
- Overall Height [ABKW]
- 0.880 Inches Nominal
- Overall Length [ABHP]
- 1.250 Inches Nominal
- Overall Width [ABMK]
- 1.250 Inches Nominal
- Throw Quantity [AKPY]
- 5
- Switch Type [AEEA]
- Nontransfer
- Switching Time [AKPP]
- 500.0 Nanoseconds
- Terminal Type And Quantity [TTQY]
- 6 Plug, Coaxial
Similar Supply Items to 5985-01-506-1465
Freight Information 5985-01-506-1465
5985-01-506-1465 has freight characteristics.. 5985-01-506-1465 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
