5985-01-499-0474
Radio Frequency Transmission Line Switch
5985014990474 014990474 50351 1452381-1 1452381
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
November 2023
2
Marketplace 5985-01-499-0474
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-499-0474 5+ Documents (More...)
United States (US) 4. 5985-01-499-0474 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5985-01-499-0474 RQST NE Related Documents 5985-01-499-0474 5+
8145151129995151129995 JavaScript in your web browser . 8145-15-112-9995Custodiapery50208145151129995 1511299959480 580 50351
. 8145-15-112-9995Custodiapery50208145151129995 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-499-0474
VIGNETTE ENTRETIEN 50351 A flexible item designed to be affixed to an object by adhesion or sewing to
7910-15-000-4829 Vacuum Cleaner Cleaning Tool Attachment -2425 Perno 4330150772425 150772425,50351 50351
Details... 3020-00-407-6161 GEAR,WORM 2 EA NS Request Quotation Subscribe to View Vendor Details... 50351
KLEINSCHMIDTPN:50351 GEAR,WORM RQST NS Request Quotation Subscribe to View Vendor Details...
Managed by Italy NSN Created on 31 Dec 1975 Data Last Changed Plate9905994353701 994353701 B3280-50351
3280-50351 An item which is rigid or semi-rigid, generally https https//www.nsnlookup.com /fsg-53/fsc
Restrictions 5985-01-499-0474
5985-01-499-0474 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5985-01-499-0474
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-499-0474
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
Approved Sources 5985-01-499-0474
- Part Number
- Manufacturer
- Status
- 50351
- Manufacturer
- 99899 - Narda Holdings, Inc. (Active)
- Primary Buy
- Primary Buy
- 1452381-1
- 93346 - Caes Systems Llc (Active)
- Vendor Drawing
- Vendor Drawing
- 1452381
- 93346 - Caes Systems Llc (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5985-01-499-0474
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- End Item Identification [AGAV]
- Next Assy 4240305 Used On Alq-99
- Actuator Operating Method [AKPC]
- Solid State

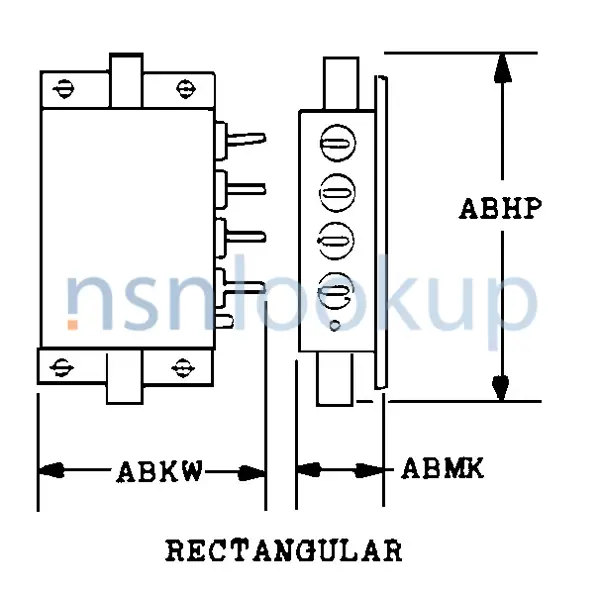

- Body Style [AAQL]
- Rectangular
- Coaxial Connector Series Designation [AHUC]
- Sma
- Connector End Design [AHUD]
- Male
- Coupling Position Quantity [AKRC]
- 2
- Distance Between Mounting Facility Centers [AEJN]
- 1.390 Inches Minimum Single Mounting Facility Pattern And 1.410 Inches Maximum Single Mounting Facility Pattern
- Material [MATT]
- Aluminum Alloy 6061 Body
- Minimum Crosstalk Rating In Decibels [AKNV]
- 60.0 Single
- Mounting Facility Pattern [CQYJ]
- Two Position Diagonal Single Mounting Facility Pattern
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole
- Operating Temp Range [AFGA]
- -57.0/+125.0 Deg Celsius
- Insertion Loss In Decibels [AHTX]
- 2.50 Single
- Longest Horizontal Distance Between Mounting Centers [AFDS]
- 0.990 Inches Minimum Single Mounting Facility Pattern And 1.010 Inches Maximum Single Mounting Facility Pattern
- Pole Quantity [AKPX]
- 1
- Overall Height [ABKW]
- 1.590 Inches Minimum And 1.610 Inches Maximum
- Overall Length [ABHP]
- 2.200 Inches Maximum
- Overall Width [ABMK]
- 0.380 Inches Minimum And 0.400 Inches Maximum
- Throw Quantity [AKPY]
- 1
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.094 Inches Nominal
- Unpackaged Unit Weight [PKWT]
- 2.500 Ounces
- Voltage Standing Wave Ratio [AHTW]
- 2.00 Single
- Switch Type [AEEA]
- Nontransfer
- Terminal Type And Quantity [TTQY]
- 2 Receptacle, Coaxial And 4 Pin And 1 Turret
Weapon Systems (WSDC) 5985-01-499-0474
DLA Procurement Analysis 5985-01-499-0474
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5985-01-499-0474
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5985-01-499-0474
Freight Information 5985-01-499-0474
5985-01-499-0474 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-01-499-0474 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-01-499-0474 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-01-499-0474 is not classified as a special type of cargo when transported by water. 5985-01-499-0474 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-01-499-0474
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 3.0" H x 2.0" W x 2.0" L
- --
- --
- --
- Any Suitable Process
- 3.0" H x 2.0" W x 2.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5985-01-499-0474 1 Records
Contracting Technical Data File (CTDF) 5985-01-499-0474 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
