5985-01-475-8711
Filter Waveguide Assembly
5985014758711 014758711 110798-1
A WAVEGUIDE ASSEMBLY which is specifically designed to pass frequencies within a range and to suppress frequencies outside that range. It may contain one or more tuned cavities, and tuning devices such as capacitive screws and the like. View more Filter Waveguide Assembly
January 2023
4
Marketplace 5985-01-475-8711
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-475-8711 5+ Documents (More...)
8711 Filter Waveguide Assembly 5985014758711 -59/fsc-5985/us 5985-01-475- 8711 Filter Waveguide Assembly
5985014758711 (Identification) 1/2 NSN 5985 -01-475-8711 (Identification ) 2/2 - - 1. -59/fsc-5985/us
Filter Waveguide Assembly 5985014758711 day Upgrade your Account Upgrade 5985-01-475-8711Filter
Waveguide Assembly5985014758711 014758711 110798 Seal Retaining Plate 5340982071639982071639 Documents
9428 Ring Spacer 5365011689428 011689428,110798 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-475-8711
Filter Waveguide Assembly 5985014758711 day Upgrade your Account Upgrade 5985-01-475-8711Filter
Filter Waveguide Assembly 5985014758711 87115985014758711014758711 is a waveguide https/ https/
Filter Waveguide Assembly 5985014758711 Upgrade your Account Upgrade 5985-01-475-8711Filter https
Restrictions 5985-01-475-8711
5985-01-475-8711 is a Filter Waveguide Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-475-8711
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-475-8711
- Canada (ZC01)
- Effective Date:
- 1 Jun 2000
Approved Sources 5985-01-475-8711
- Part Number
- Manufacturer
- Status
- 110798-1
- Manufacturer
- 50478 - Cpi Satcom & Antenna Technologies (Active)
- Primary Buy
- Primary Buy
Datasheet 5985-01-475-8711
- Characteristic
- Specifications
- FIIG
- Specifications
- A073A0

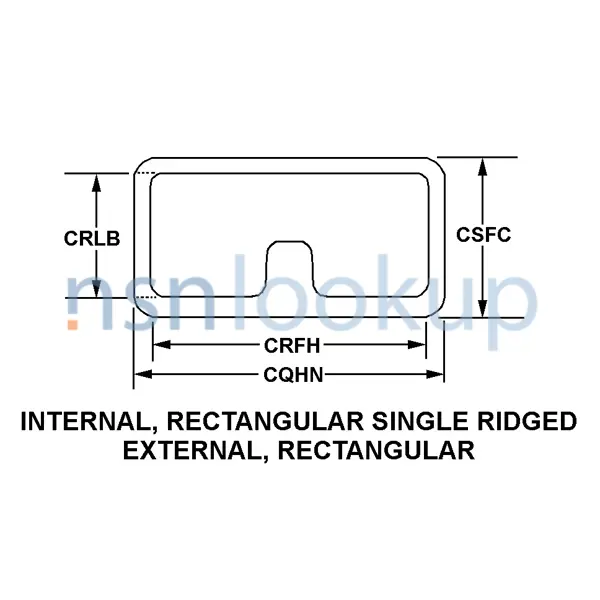

- Cross-Sectional Shape Style [AAGR]
- Internal, Rectangular Single Ridged External, Rectangular
- Flange Quantity [AHSF]
- 2
- Flange Style [CTCJ]
- Contact, Double Ridge Type All Flanges
- Material [MATT]
- Aluminum Single Tubing Segment
- Style Designator [STYL]
- Straight Type
- Insertion Loss In Decibels [AHTX]
- 0.035
- Special Features [FEAT]
- Manufacturer Nomenclature Transmit Reject Filter C-Band; Frequency Range 3.625 - 4.200 Ghz; Pressurization Sealed To 5 Psi; Temperature Range -40 To +80 Degrees C; Interior And Flange Face Finish Are Cadmium Plated; Exterior White Paint
- Voltage Standing Wave Ratio [AHTW]
- 1.10
- Waveguide Length [CTFD]
- 6.350 Inches Nominal
- Specified Frequency [CZKN]
- 3.625 Gigahertz Minimum And 4.2 Gigahertz Maximum
- Surface Treatment [SFTT]
- Cadmium First Flange All Surfaces
- Surface Treatment [SFTT]
- Paint Second Tubing Segment Outside Surfaces
