5985-01-462-0825
Waveguide Assembly
5985014620825 014620825 307771-1
An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE. View more Waveguide Assembly
May 2023
3
Marketplace 5985-01-462-0825
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-462-0825 5+ Documents (More...)
RQST NE Updated Every Day 5985-01-462-0825 RQST Updated Every Day 5985-01-462-0825 RQST NE Related Documents
5985-01-462-0825 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-462-0825
462 -0825Waveguide Assembly5985014620825 014620825 307771 https//www.nsnlookup.com /fsg-53/fsc-5310/us
Waveguide Assembly 5985014620825014620825 307771 $1 a day Upgrade your Account Upgrade 5985-01-
462 -0825Waveguide Assembly5985014620825 014620825 307771 https//www.nsnlookup.com /fsg-59/fsc-5985/us
5985-01-462-0825 Waveguide Assembly 5985014620825 014620825 for $1 a day Upgrade your Account Upgrade
/fsg-53/fsc-5310/us
014620825 for $1 a day Upgrade your Account Upgrade 5985-01-462-0825Waveguide Assembly5985014620825 014620825
307771 /www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-462-0825 Waveguide Assembly 5985014620825014620825
Restrictions 5985-01-462-0825
IUID Required
5985-01-462-0825 is a Waveguide Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is a US Munitions List or Commerce Control List Item where key elements must be removed and destroyed to prevent this item being restored or repaired. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-01-462-0825
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-462-0825
- US Air Force (FXX4)
- Effective Date:
- 1 Jul 2000
- Former MOE Rule:
- FAA4
Approved Sources 5985-01-462-0825
- Part Number
- Manufacturer
- Status
- 307771-1
- Manufacturer
- 96214 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5985-01-462-0825
- Characteristic
- Specifications
- FIIG
- Specifications
- A073A0
- End Item Identification [AGAV]
- Nha An/Gpn20

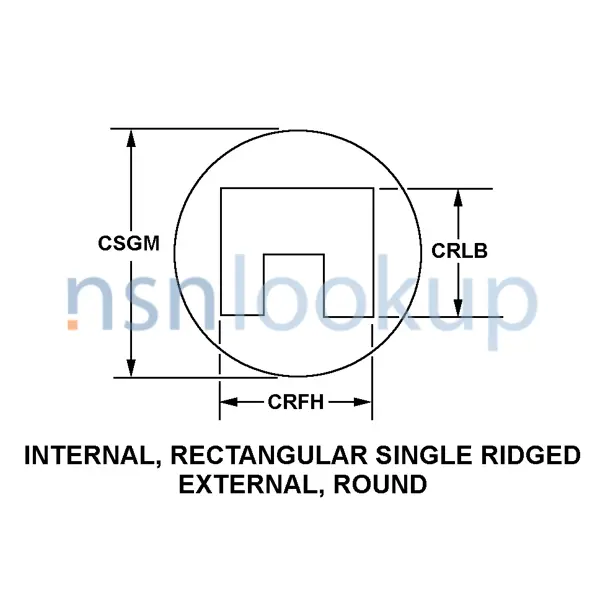

- Cross-Sectional Shape Style [AAGR]
- Internal, Rectangular Single Ridged External, Round
- Flange Depth [AHTD]
- 0.750 Inches Nominal Single Flange
- Flange Inside Height [AHSY]
- 1.340 Inches Nominal Single Flange
- Flange Quantity [AHSF]
- 1
- Flexibility [FLEX]
- Rigid All Tubing Segment
- Material [MATT]
- Aluminum Alloy All Tubing Segment Or Copper Alloy All Tubing Segment
- Tubing Wall Construction Style [AHRV]
- Straight Seam All Tubing Segment
- Waveguide Inside Height [CRLB]
- 1.340 Inches Nominal
- Waveguide Inside Width [CRFH]
- 2.840 Inches Nominal
